Battery Ultrasonic Metal Welder

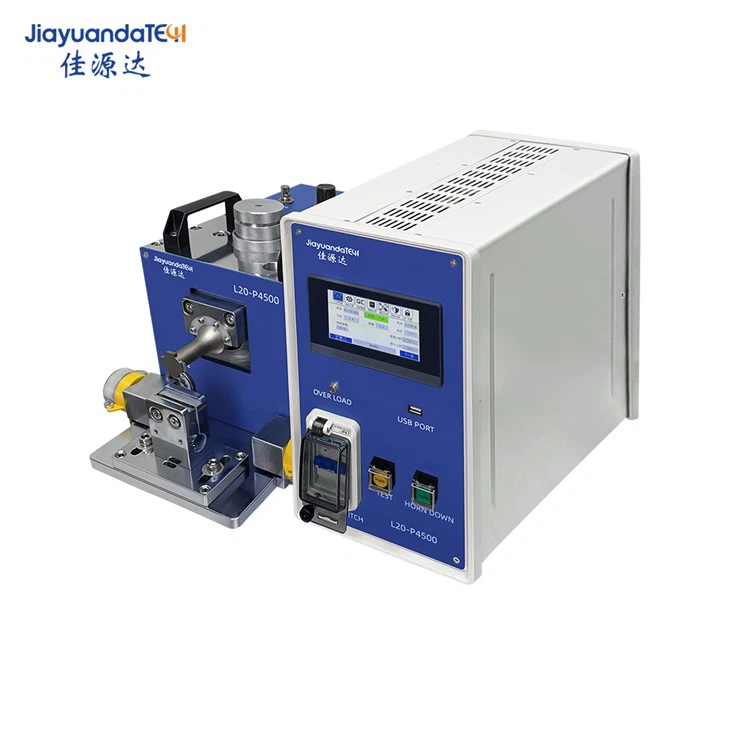

Battery Ultrasonic Metal Welder, typical welding applications include lithium batteries, cable terminals, bus bars, motor coils, various terminals and battery management systems.
The applications of battery ultrasonic metal welder include lithium battery, cable terminal, bus, motor coil, various terminals and battery management system. The development of ultrasonic metal welding technology guarantees the performance requirements of high-voltage wiring harnesses. Ultrasonic welding joint has many superior properties, such as high mechanical strength, high corrosion resistance, better conductivity and better fatigue performance, which makes ultrasonic welding can be used in many fields, including aerospace, automotive, microelectronics, medical and consumer products.
Parameters
| Product model | L40-P800 | L20-P2000 | L20-P4500 |
| Power supply | Single phase AC220V/AC110V switchable 50Hz | Single phase AC220V/AC110V switchable 50Hz | Single phase AC220V/AC110V switchable 50Hz |
| Air supply | Compressed air 0.1-0.6MPa | Compressed air 0.1-0.6MPa | Compressed air 0.1-0.6MPa |
| Ultrasonic peak power(W) | 800 | 2000 | 4500 |
| Maximum power of the machine(W) | 1000 | 2000 | 4500 |
| Ultrasonic frequency(KHz) | 40 | 20 | 20 |
| Maximum ultrasound time(s) | 0.4s | 0.4s | 0.4s |
| Adjustable accuracy of ultrasound time(s) | 0.01s | 0.01s | 0.01s |
| Ultrasonic mold connection thread size | M8*1.25 | 1/2*UNF | 1/2*20UNF |
| Data output | Can export each welding data from an external USB drive | Can export each welding data from an external USB drive | Can export each welding data from an external USB drive |
| Upper mold size(mm) | 4×4 | 4×4 8×4 | 12×4 8×4 |
| Bottom mold size | 20×20 quick disassemble and replaceable | 20×20 quick disassemble and replaceable | 20×20 quick disassemble and replaceable |
| Maximum number of welding layers | 20 layers of copper foil (negative electrode) 20 layers of aluminum foil (positive electrode) | 30 layers of copper foil (negative electrode) 30 layers of aluminum foil (positive electrode) | 60 layers of copper foil (negative electrode) 60 layers of aluminum foil (positive electrode) |
Features
The battery ultrasonic metal welding processes used in battery modules mainly include laser welding, ultrasonic welding and resistance welding. Among them, laser welding with industrial robots is gradually becoming the main force of the automated module production line.
The welding process has high efficiency and is easy to realize automatic production. After continuously improving the welding process and limiting the thermal influence in the forming process, the application in actual production is also increasing.
FAQ
Q: Where is ultrasonic crimping better than terminal crimping?
A: Ultrasonic crimping has a much lower voltage drop than terminal crimping under the same conditions, so it has much better electrical conductivity and signal transmission performance than terminal crimping. There are at least the following three advantages.
First, it solves the voids formed by terminal crimping, and improves the electrical conductivity and the stability of the entire electrical system.
Secondly, it reduces the heat accumulation caused by contact resistance, and prevents the hidden quality hazards of the local temperature rise of the wiring harness and the wiring harness burnt.
Third, it prevents the wires in the wiring harness from being affected by external moisture, dust, oil and gas and other undesirable factors, causing the copper wires to rust and oxidize, thereby causing a decrease in electrical conductivity and distortion of signal transmission.
Q: Why is ultrasonic welding battery pack so popular in the new energy automobile industry?
A: My country's new energy vehicles mainly include pure electric vehicles (BE V), hybrid electric vehicles (HEV), fuel cell vehicles (FCEV), etc. The battery pack is the core energy source of new energy vehicles and provides driving power for the entire vehicle. It mainly constitutes the main body of the battery pack through the shell as the carrier of the battery module, and the welding quality of the battery pack plays a vital role in ensuring safe operation and protection.
Applications
1. Battery ultrasonic metal welder is suitable for all thermoplastics, amorphous plastics such as ABS, PMMA, PC, PS; semi-crystalline plastics such as PA, PET, CA, POM, PE and PP.
2. Ultrasonic welding is also suitable for non-woven fabrics, such as thermoplastic fabrics, polymer materials, coated paper and mixed fabrics.
3. Flexible materials refer to soft, low elastic modulus materials.
4. Rigid materials refer to materials with high elastic modulus and low mechanical vibration damping factor, such as polystyrene (PS), polymethyl methacrylate (PMMA), polyamide (PA).
5. All polymer films, polymer synthetic fibers, cloth composed of films and fibers.
For more details of Battery Ultrasonic Metal Welder, please feel free to contact us !
