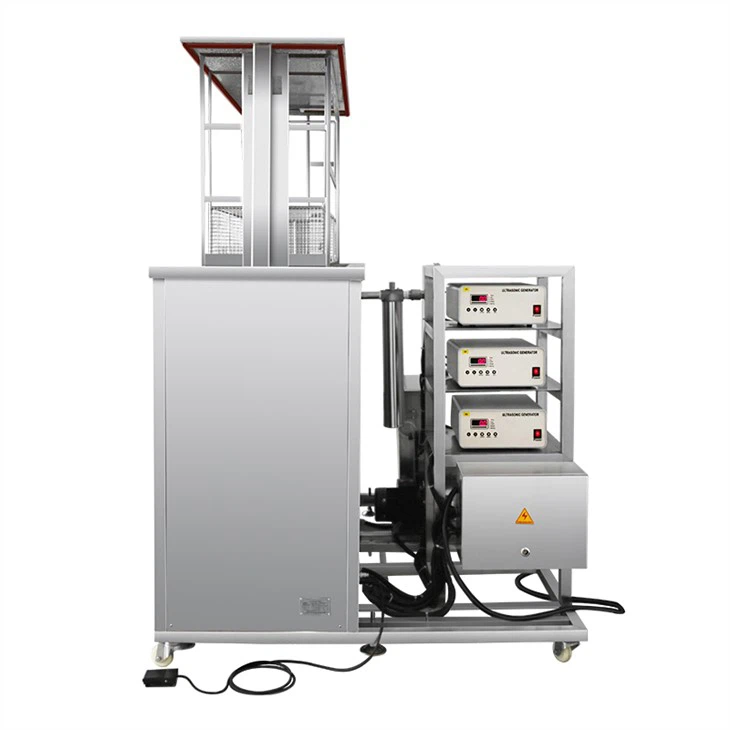

Ultrasonic Cleaner For Car Parts

Product Description:

The Ultrasonic Cleaner For Car Parts is mainly used for cleaning, drying, spraying and rust prevention of automobile parts such as engine block. After ultrasonic treatment, the oil, dust and particulate impurities attached to the surface of the cylinder block of the automobile engine can separate the attachments from the metal surface. After high-pressure spray washing, the particulate impurities and oil stains on the metal workpiece can be thoroughly cleaned, so as to achieve the ideal cleaning effect that cannot be achieved manually.

Product Features:

1. Constructed with a thickened SUS304 stainless steel tank and housing, offering resistance to rust, corrosion, oil, and alkaline cleaning agents.
2. Features a built-in digital thermostatic heating system (temperature range: 20°C–80°C); heating enhances the activity of cleaning agents, enabling the rapid dissolution of heavy grease and grime.
3. Equipped with an LED display for real-time monitoring of temperature and time; supports a timer setting of 1 hour to 9 hours 59 minutes and an automatic shut-off function.
4. Utilizes heavy-duty industrial-grade ultrasonic transducers that deliver stable output and low failure rates, generating high-intensity cavitation density for cleaning large engine components.
5. Includes a removable stainless steel cleaning basket that suspends parts to prevent direct friction against the tank and facilitates the batch loading and unloading of workpieces.
6. Employs a split-type ultrasonic generator design that isolates electrical components from steam and oil mist, extending equipment lifespan and simplifying maintenance and servicing.

Application:

1. Fuel System Components
Fuel injectors – Remove gum and carbon deposits; restore spray pattern
Carburetors – Clean fine nozzles and air passages
Fuel rails – Remove internal sludge
Fuel pumps – Clean housing and strainer/filter

2. Brake System Components
Brake calipers – Remove grease and brake dust
Brake pistons – Clean without damaging sealing surfaces
Brake master cylinders – Clean internal passages
ABS sensor rings – Remove iron filings and sludge

3. Small Engine Internals
Valves – Remove carbon and gum deposits
Lifters & rocker arms – Remove sludge
Timing chain guides – Clean without causing wear
Oil control rings – Restore elasticity and oil drainage capability
PCV valves – Clear/unclog the valve body

FAQ:

Q: How to Change 380V to 220V for Ultrasonic Cleaning Machine ?

There are many ways to change a 380V motor to a 220V one, and here the focus is on discussing the method of changing to a 220V one without three-phase electricity,

1. When changing, the connection method of the three-phase winding remains unchanged, that is, the original star connection is still star connection, and the original corner connection is still corner connection. Any two of the three outgoing terminals originally connected to the three-phase motor are connected to both ends of the power supply (L-live wire, N-zero wire), and the remaining one is connected to the capacitor first.

2. The other end of the capacitor is connected to one end of the power supply, whether it is connected to the live wire or to the zero wire, depends on the desired direction of rotation, and the direction of rotation varies depending on the connection method.

Another more reliable approach is to install a single-phase 220V input three-phase 380V output frequency converter, so that the motor does not require any modifications.

Q: Is a filtration system available?

Our standard ultrasonic cleaning machines do not include a filtration system by default. However, we can equip the machine with an optional filtration and circulation system according to your cleaning requirements. The filtration system continuously removes oil, grease, dirt, and other contaminants from the cleaning solution, helping to maintain cleaning performance and extend the service life of the cleaning liquid. It is especially beneficial for applications involving heavily contaminated automotive parts or continuous production environments. We can customize the filtration capacity, filter precision, and circulation configuration based on your specific application. Please let us know the types of parts you clean and your daily cleaning volume, and we will recommend the most suitable solution.

For more details of Ultrasonic Cleaner For Car Parts, please feel free to contact us !
