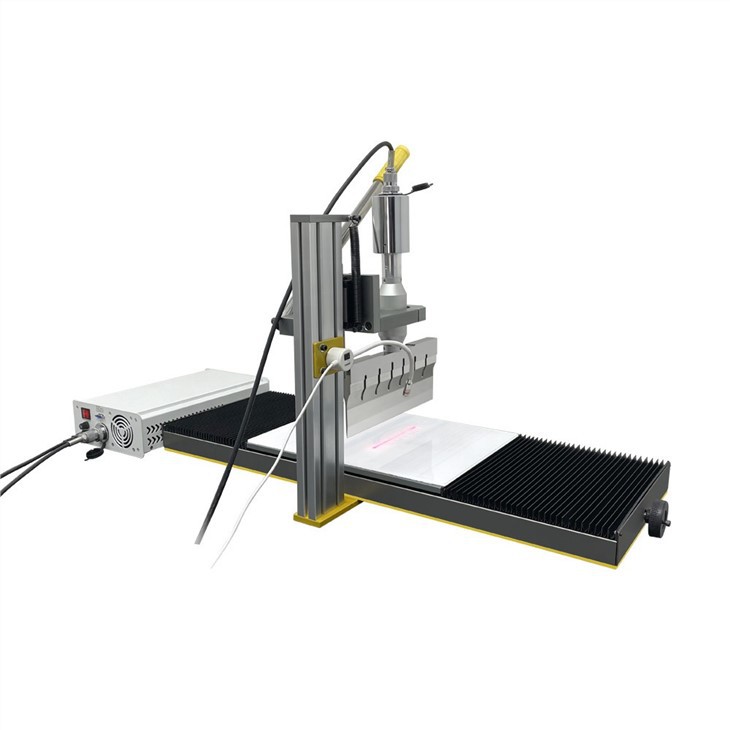

Ultrasonic Pastry Cutter Machine

Product Description:

The ultrasonic pastry cutter machine is composed of a "transducer" that generates vibration and an "ultrasonic generator" that drives the transducer. The piezoelectric element is contained in the transducer, and the entire vibrator, including the cutting blade, resonates by applying an alternating voltage having the characteristic frequency of the transducer to the piezoelectric element from a generator. The sensor is equipped with a feedback control system that transmits information on frequency or amplitude deviations caused by cutting loads to the generator. The feedback control system keeps the resonant state and amplitude of the blade stable, so that the tool always cuts the material quickly and cleanly.

Parameter of Ultrasonic Pastry Cutter Machine

Product Features:

1. Ultrasonic cutting significantly reduces friction, resulting in smooth, refined cuts free from debris or deformation, and an aesthetically pleasing cross-section.
2. Dimensional accuracy: ±1mm.
3. It can be deployed as a standalone solution or integrated into an existing system.
4. Features unique servo technology for high precision and rapid operation.
5. Equipped with a high-quality safety system to prevent accidental entry into the cutting zone during operation.
6. The ultrasonic power unit utilizes an automatic frequency tracking system that monitors the cutter's frequency in real-time, ensuring stable performance and suitability for continuous, long-term operation.
7. Made of titanium alloy; blade customization is available.
8. Manual operation allows for flexible adjustment of cutting methods and dimensions.

Application of Ultrasonic Pastry Cutter Machine:

Bakery & Pastry:
Cream layer cakes, mousse cakes, cheesecakes, Swiss rolls, Napoleon cakes, tarts, pies, brownies, Baumkuchen, etc.
Key advantages: No cream sticks to the blade; mousse and cake structure remain uncompressed; clean, neat slices significantly enhance product presentation.

Fast Food & Staples:
Sandwiches, pizzas, quiches, wraps, etc.
Key advantages: Cuts cleanly through multiple layers and varying textures in one pass, without shifting or separating fillings.

Cheese & Snacks:
Soft cheeses, nougat, granola bars, wafers, candies, frozen snacks.
Key advantages: Prevents cheese from sticking to the blade, resulting in smooth cuts; cuts nougat or granola bars without crumbling under pressure.

FAQ

Why choose an ultrasonic pastry cutter machine over traditional blade or wire cutting?

1. Cutting Quality: Traditional methods can damage the product; ultrasonic cutting does not.
Issues with traditional blades: When cutting cream cakes, mousses, or cheesecakes, the blade exerts downward pressure, causing soft layers (like cream or mousse) to flatten or deform, resulting in uneven cut surfaces.

Ultrasonic solution: The blade vibrates microscopically at frequencies exceeding 20,000 times per second, generating virtually no downward pressure. Consequently, the texture of the cake, mousse, or cheese remains completely intact, yielding clean, vertical, and aesthetically pleasing cut surfaces.

2. Blade Adhesion and Cleaning: Traditional methods require frequent downtime for cleaning.
Issues with traditional blades: When cutting cheese, nougat, or cream cakes, sticky substances adhere firmly to the blade, causing the cut surface to become stringy or jagged. Operators must frequently stop the machine to wipe the blade, reducing production efficiency.

Ultrasonic solution: High-frequency vibration creates a microscopic non-stick layer on the blade surface, preventing food from adhering. Even when cutting the stickiest soft cheeses or creams, the blade remains clean; this eliminates the need for frequent cleaning and enables continuous production.

3. Crumbs and Waste: Traditional methods result in product loss.
Issues with traditional blades/wire cutting: When cutting wafers, nougat, frozen cakes, or puff pastries, blade pressure causes edges to fracture and generates significant crumbs. This not only compromises aesthetics but also causes direct financial loss (as crumbs cannot be sold).

Ultrasonic solution: The vibratory cutting process is exceptionally smooth, exerting minimal cutting force on brittle or frozen products, resulting in virtually no fracturing or crumbling. Every piece remains an intact, sellable product, significantly reducing waste.
