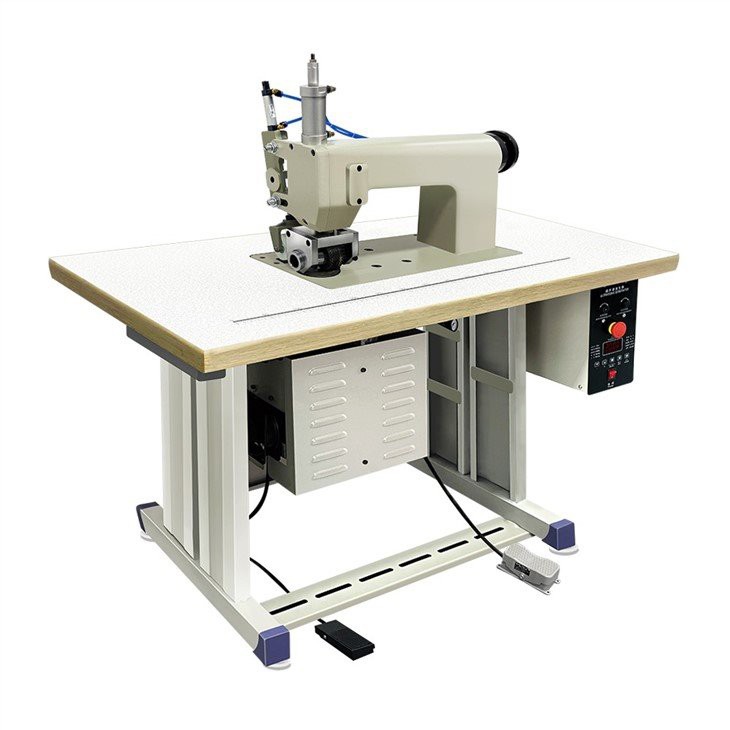

Ultrason Seal Sew Machine
X30S is an automatic high-power ultrasonic lace machine. The ultrasonic core components composed of intelligent frequency tracking ultrasonic generator, high-Q ultrasonic transducer, and wear-resistant tool head have good performance in cutting, welding, and stitching. The whole machine is digitally controlled, driven by dual motors, adjustable speed, pneumatic pressure control, flower wheel diversity and abnormal protection functions.....
The ultrason seal sew machine comprehensively applies advanced technologies such as computer, hydraulic and pneumatic, which greatly simplifies the structure of the sewing machine and realizes the automation and simplification of operation. The core components are composed of intelligent ultrasonic generator, wear-resistant tool head, high-quality transducer and entity. The design of 20kHz ultrason seal sewing machine is in line with the pace of industrialization, diversification and rapidity of garment production. Ultrasonic sewing machine is a high-tech product with low skill operation and electromechanical integration. The whole machine adopts digital control and double motor drive. The lace roller can be customized according to the drawing. The equipment speed can be adjusted, and the faster speed can be customized.
Parameters of Ultrason Seal Sew Machine
| Model | X30S-D54 | X30S-D77 |
| Ultrasonic frequency | 20KHz | 20KHz |
| Ultrasonic power | ≤2600W | ≤2600W |
| Ultrasonic generator | JYD-2900SP | JYD-2900SP |
| Ultrasonic transducer | JYD-5020-6P8-AU | JYD-5020-6P8-AU |
| Ultrasonic booster | S20-D54D38H129-H | S20-D54D38H129-H |
| Motor | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz |
| Reducer | / | / |
| Working methods | built-in | built-in |
| Boding width | ≤25mm | ≤50mm |
| Flower wheel diameter | 50mm | 50mm |
| Max speed | 20m/min | 20m/min |
| Working space | 370mm*155mm | 370mm*155mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1100mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case |
| Package size | 1250mm*600mm*1160mm | 1250mm*600mm*1160mm |
| Weight | 88.5KG | 88.5KG |
Features
1. The whole machine head adopts high-grade baking paint, the machine body is simple, beautiful, and has no flaws;
2. The locking device adopts spring automatic adjustment to make the machine run more stable;
3. The mold level adjustment structure, the adjustment level are convenient and fast, without other auxiliary tools;
4. Double motor drive system;
5. Pneumatic downward pressure adjustment;
6. The flower wheel and bottom steel mold of the ultrason seal sew machine are made of special alloy steel. The flower wheel can develop various complicated flower-shaped patterns according to customer needs;
7. The imported steel mold has a long life;
8. The flower wheel and bottom mold are easy to disassemble and assemble, and the flower wheel can be adjusted horizontally, which is flexible and fast.
Application
It is suitable for cold-sealing packaging of non-woven materials. You can also cut clothes and sew various lace patterns. It is an efficient ultrasonic device for production of fashionable clothes.
