Immersible Ultrasonic Transducers

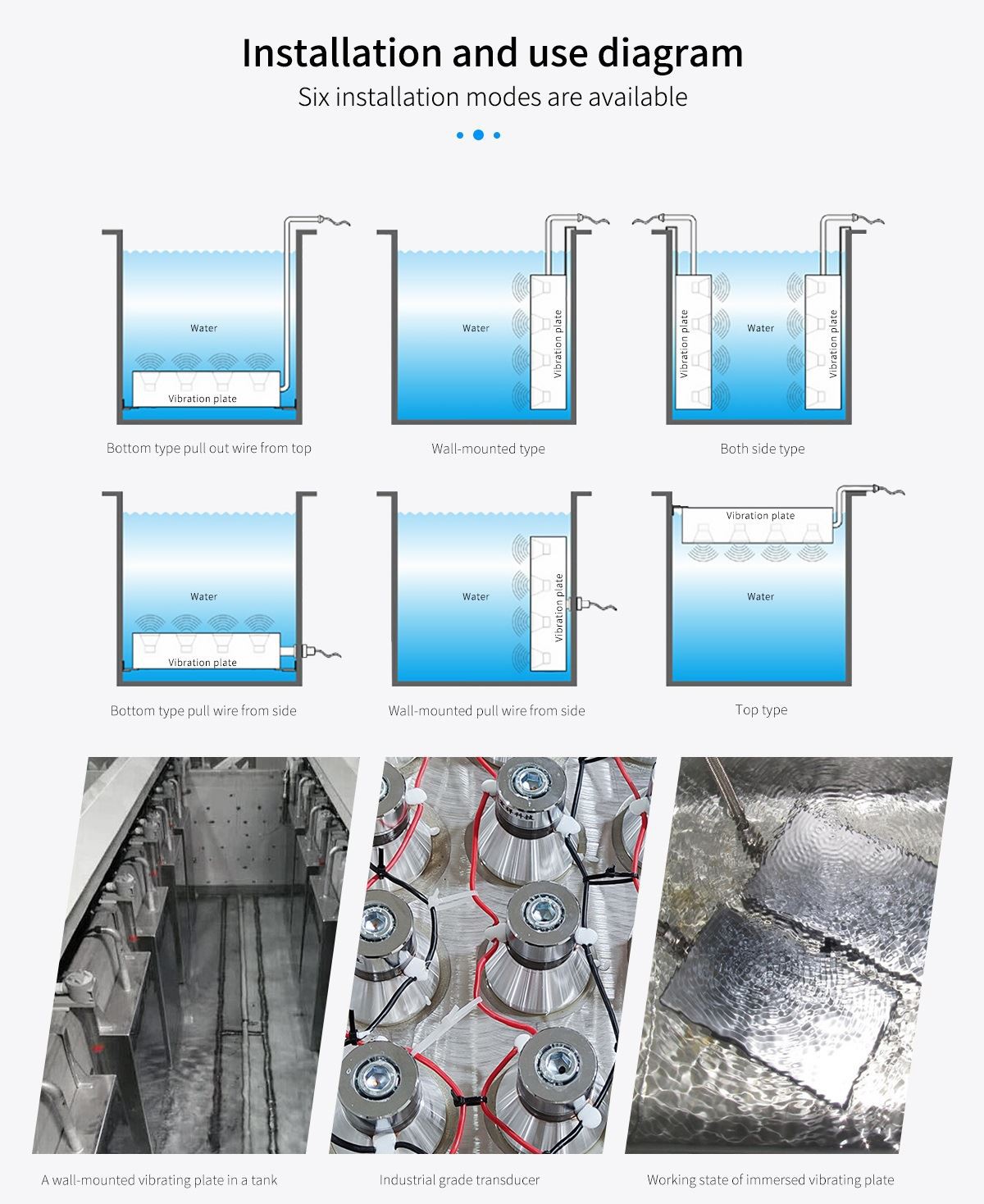

Immersible Ultrasonic Transducers also known as underwater ultrasonic cleaning system, it is an ultrasonic cleaning device, which is composed of an ultrasonic vibration cleaning transducer and an ultrasonic generator have bonded and sealed in a stainless steel box. It is usually placed in various cleaning tanks to achieve the purpose of ultrasonic cleaning. The size of the vibrating plate and the direction of the power line outlet can be divided into three types according to different installation positions: bottom vibration type, side vibration type and top vibration type, so as to achieve a thorough cleaning effect according to different use requirements. And it applied to electronic parts, electroplated hardware, automobile parts, optical lenses, jewelry, glassware, filter elements, spinnerets, medical equipment, etc.

Specification of Immersible Ultrasonic Transducers

Advantages of Immersible Ultrasonic Transducers:

● It is made of SUS304/SUS316L stainless steel plate, and the vibrating surface is plated with 20 μ m hard chromium.

● High Q ultrasonic transducer has spiral fixed sand blasting and with advanced bonding technology, and it can withstand the harsh working environment such as weak acid, alkali and high temperature.

● Various frequencies can be choose（ 25, 28, 40, 68, 80, 120kHz）

● Ultrasonic generator and the ultrasonic vibrating plate are connected by shielded wire to prevent power loss caused by the connection between the ultrasonic generator and the vibrating plate and ensure the cleaning effect!

● High frequency Immersible Ultrasonic Transducers is suitable for cleaning precision parts, and can clean blind holes less than 1 mm.

● Side vibrating ultrasonic vibrating plate is suitable for cleaning rack parts and large workpieces.

● Bottom vibrating ultrasonic vibrating plate is suitable for cleaning small workpieces in basket and beaker.

● Top vibrating ultrasonic vibrating plate is suitable for cleaning circuit boards, glass substrates, magnetic cores, optics and other workpieces to reduce the dirt in the dead corners of the box.

FAQ： How to Identify the Quality of Ultrasonic Vibration Plates ？

When choosing an ultrasonic cleaning machine, everyone faces the question of knowing whether it is good or bad. Here are the answers for everyone:

It can be identified from the manufacturing process and appearance of ultrasonic cleaning machines; It directly reflects the company's emphasis on product quality, and products with good craftsmanship and appearance will naturally have better quality (but it cannot be absolute). And the design process directly affects product quality. Identification can be based on the process design and materials used for ultrasonic cleaning machines; However, this requires a good understanding and extensive experience of the transducer materials. The rationality of the design should be determined based on the selection of materials. The quality of the materials directly affects the quality of the product. It is not always possible to copy from the template, and if the materials of the same specification are different, the quality will vary greatly. Even with poor materials and good technology, a good product cannot be produced.

Computer Experiment:

a. Power output experiment; It can detect the matching between the transducer and the electric box, and also reflect the size of the load power output of the transducer sent by the electric box. The larger the mold belt, the better the working effect, indicating a stronger power output. The current size can only reflect the output efficiency and does not represent the power level of the device.

b. Stability test (simulated aging test); Check the power output stability of the electrical box and transducer with the rated load of the equipment.

c. Overload operation test; Test the stability and lifespan of product quality. This test only requires continuous uninterrupted operation with rated load for 8 hours.

For more details of Immersible Ultrasonic Transducers, please feel free to contact us!
