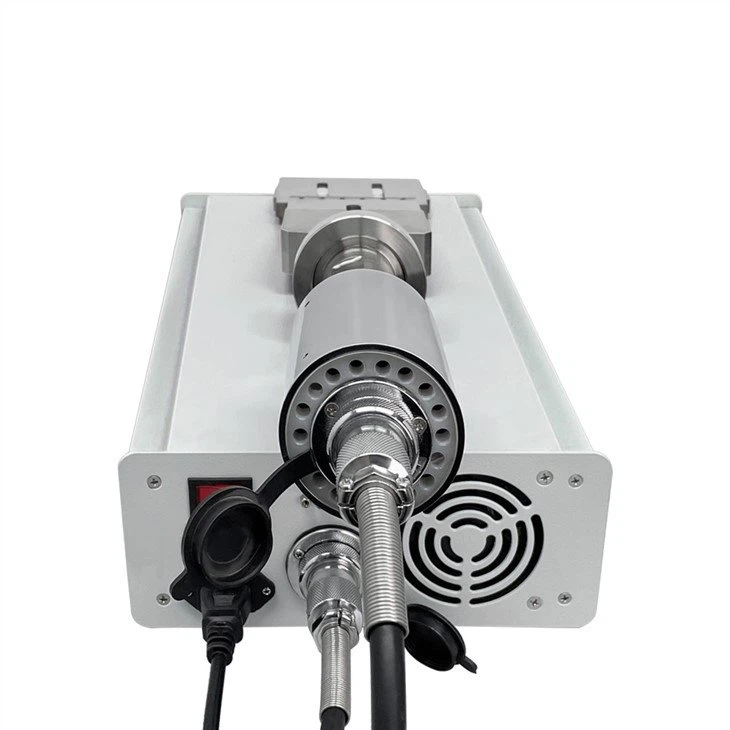

Ultrasonic Rubber Portioning Machine
Ultrasonic rubber portioning machine using ultrasonic energy, its greatest feature is cutting without edge. Or, without the traditional sense of the cutting edge. The conventional cut using a tool with a sharp edge, pressed against the material being cut.
Ultrasonic rubber portioning machine using ultrasonic energy, its greatest feature is cutting without edge. In other words, there is no cutting edge in the traditional sense. The conventional cut using a tool with a sharp edge, pressed against the material being cut. This stress is concentrated in the edge at the pressure is very large, and exceeds the shear strength of the material being cut, the molecules of the material to be opened, is severed. Since the material is strong pressure hard pull, the cutting tool edge should be very sharp, the material itself, but also to withstand the pressure. Of soft, flexible material cutting ineffective viscous material difficulties.
Ultrasonic cutting with a knife-edge is smooth, reliable, accurate trimming, no deformation, not while Alice, fluff, spinning, folds, etc.
Product parameter of ultrasonic rubber cutting system
Ultrasonic Generator | JYD-2700S | JYD-2700S | JYD-2700S | JYD-2700S | JYD-2700S | JYD-2700S | JYD-2700S |
Frequency | 20KHz | 20KHz | 20KHz | 20KHz | 40KHz | 40KHz | 40KHz |
Power | 2000W | 2000W | 2000W | 2000W | 1000W | 1000W | 1000W |
Cutting knife width | 95 mm | 190 mm | 254 mm | 355 mm | 85 mm | 120 mm | 190 mm |
Cutting knife material | Titanium alloy | Titanium alloy | Titanium alloy | Titanium alloy | Titanium alloy | Titanium alloy | Titanium alloy |
FAQ
Precautions for use of ultrasound rubber cutter blade
1. The blade of flat cutting machine should not extend out of the cutter base too long, which is generally 0.5mm thicker than the material,
At the same time, pay attention to select the blade with a sharp angle when cutting a small pattern, so as to avoid burrs on the cutting edge of the blade when there is extruded material.
2. When cutting small patterns, use new blades and slow down, while cutting large products is not very particular.
3 no matter imported or domestic flat cutting machine or imported, it is not suitable to use the ground secondary knife, because its surface has been worn, which is easy to cause the wear of the inner surface of the cutter base.
4 when the products cut by the flat cutting machine have angular phenomenon, change the knife first to eliminate the problem. If the phenomenon remains after changing the knife, it should be the problem of the knife seat.
5 when there is a problem with the cutterbed, try to drop a drop of oil in the bearing and insert and rotate the knife several times for lubrication. If it still cannot be solved, it is time to consider replacing the cutterbed.
For more details of Ultrasonic Rubber Portioning Machine, please feel free to contact us!
