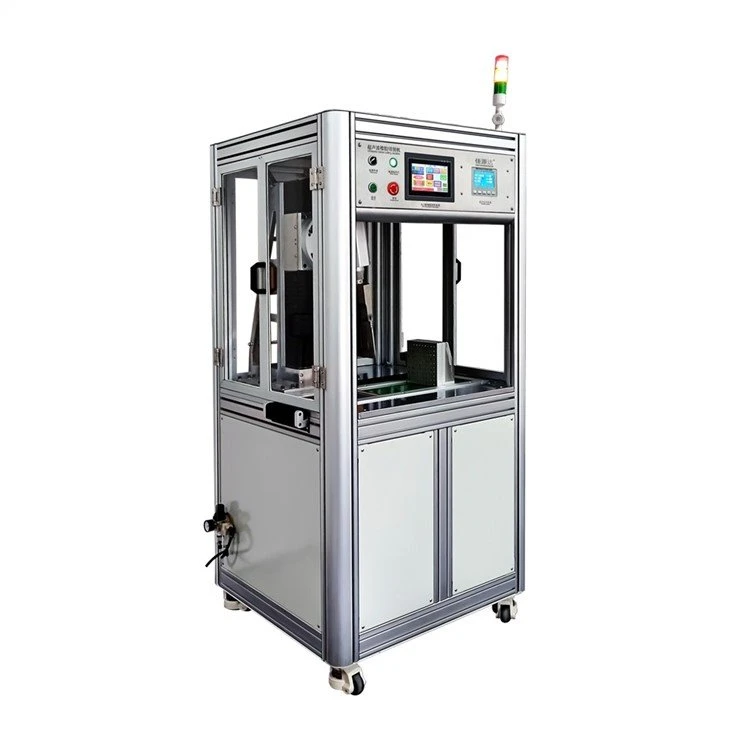

Ultrasonic Rubber Cutter Machine
Jiayuanda G20 ultrasonic rubber cutting equipment is composed of an automatic frequency tracking generator, a high-Q ultrasonic transducer, and a titanium alloy cutting knife(cutting knife width included 20Khz 95mm,190mm,254mm,355mm; 40Khz 85mm 120mm 190mm).It has a good performance in rubber cutting. The whole machine is simple and convenient to install, real-time frequency tracking, adjustable amplitude, abnormal protection, etc.; it can be controlled by PLC or RS485 communication....
This is a high frequency ultrasonic rubber cutter machine with a tool vibration frequency of 40 kHz (40000 vibrations per second) with an amplitude of 30 microns. The function of ultrasonic high-speed micro vibration can be brought into full play by it. It has a wide material cutting range and can cut newly developed composite materials, rubber and leather. It has the advantages of low processing pressure, sharp blade, small cutting surface and less chips. The circuit is controlled by the power supply, and the heating of the engine is restrained by the cooling air inlet developed by us. The sensor is even suitable for large amplitude, so it can be used continuously.
Product parameter
Model number | Frequency | Power | Cutting Width | Cutting Height |
G20-150RC | 20KHz | 2000W | 150 mm | 100 mm |
G20-100TC | 20KHz | 2000W | 100 mm | 10 mm |
Product Feature:
Ultrasonic Cuts Are Cleaner Than Conventional Cutters With Minimal Debris
Jiayuanda ultrasonic rubber cutter machine is very suitable for cutting rubber, composite aerospace materials, etc.
Replaceable Blade Technology Reduces Setup Time And Reduces Replacement Tooling Costs.
Our ultrasonic horn is designed for replaceable cemented carbide cutting blades and is a proven solution for aerospace materials, otherwise standard
ultrasonic mold materials will not be feasible.
Available In 20,30, 35, And 40 KHz Frequencies
When large-scale cutting is needed, our 20 kHz ultrasonic generator and tool head can solve it well. If a smaller footprint or lighter payload is required,
our 30 and 40 kHz cutting systems are very suitable, and the noise is reduced.
Large Inventory Of Standard Carbide Cutting Blades For All Shapes And Sizes Of Applications.
Our applications and design engineering team have developed industry leading tooling to meet the rugged demands of cutting applications.
Robust Design
Minimal blade flexure which yields straight cuts without having to support the blade
FAQ:
Q: How does ultrasonic rubber cutter machine work?
Ultrasonic rubber cutting machine uses ultrasonic energy to melt the material to be cut by local heating, so sharp edges are not required. It is usually used to cut materials that are difficult to cut, such as thermoplastic resin plates, sheets, films, carbon fiber composites and rubber.
Ultrasonic cutting vibration 40000 times per second (40 kHz), can easily cut resin, rubber and composite materials. The cutting knife shell is made of stainless steel, and the blade is made of inert and wear-resistant metal HSS, with a thickness of 0.6mm, which will not have a lasting chemical reaction with the cutting material. Users can replace the blade by themselves. High frequency vibration reduces the friction resistance of the cutting surface, prolongs the service life of the blade and saves the cost.
For more details of Ultrasonic Rubber Cutter Machine, please feel free to contact us !
