Ultrasonic Fabric Sewing Machine
JYD-X10 ultrasonic lace sewing machine is a 28KHz 1000W intelligent ultrasonic lace machine with synchronous motion technology. Its ultrasonic core components are mainly composed of an automatic frequency tracking ultrasonic generator, a high Q value transducer, and a tool head....

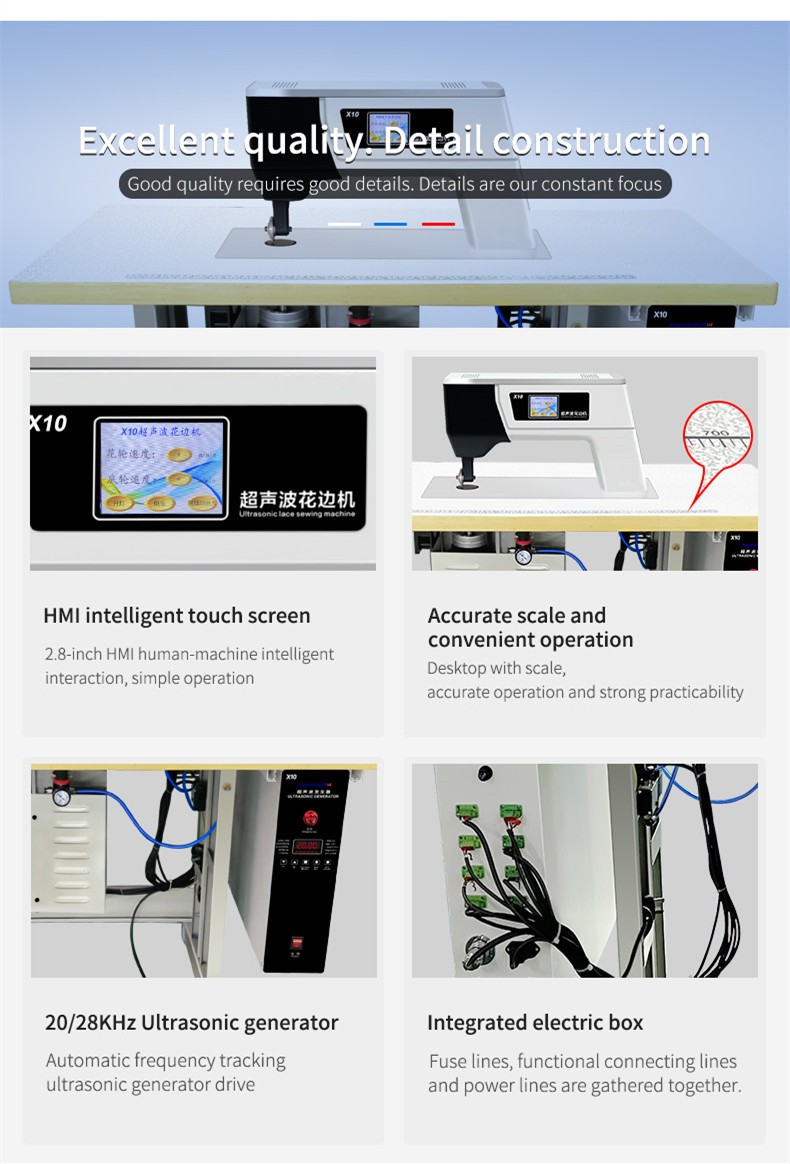

JYD-X10 Ultrasonic Fabric Sewing Machine is a 28KHz 1000W intelligent ultrasonic lace machine with synchronous motion technology. Its ultrasonic core components are mainly composed of an automatic frequency tracking ultrasonic generator, a high Q value transducer, and a tool head. It can maintain efficient seam cutting during cutting, welding, and sewing. At the same time, the equipment also has functions such as user-defined speed, 10 groups of data storage, diversity of flower wheels, and multiple protection.
| Model | X10 | X10S |
| Ultrasonic frequency | 28KHz | 28KHz |
| Ultrasonic power | ≤1500W | ≤1500W |
| Ultrasonic generator | JYD-2800S | JYD-2800S |
| Ultrasonic transducer | JYD-3828-6P8-AU | JYD-3828-6P8-AU |
| Ultrasonic booster | T28-D30D38H92-R | T28-D30D38H92-R |
| Motor | stepper motor | Stepper motor + reducer |
| Reducer | Ratio 1:4 | Ratio 1:4 |
| Working methods | External | External |
| Boding width | ≤8mm | ≤8mm |
| Flower wheel diameter | 45mm | 45mm |
| Max speed | 10m/min | 10m/min |
| Working space | 360mm*130mm | 360mm*130mm |
| Machine body size | 580mm*130mm*265mm | 580mm*130mm*265mm |
| Whole machine size | 1200*550mm*1000mm | 1200*550mm*1000mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case |
| Package size | 1250mm*650mm*1050mm | 1250mm*650mm*1050mm |
| Weight | 102.7KG | 102.7KG |
FAQ：
Q: what should I do if there are wrinkles when sewing double-layer fabrics?
Answer: adjust the relative speed difference between the upper and lower wheels of the machine. The problem can be improved by adjusting the two speeds as much as possible.
Q: what should be done if the welding spot is penetrated during welding?
Answer: reduce the amplitude of the generator. Or reduce the pressure of the machine.
Q: What if the welding spot is not clear (not welded firmly) when accelerating the speed?
Answer: Increase the pressure and adjust to the appropriate speed. Or increase the amplitude of the generator.
Q: What should I do if there is bad welding when replacing the new cloth?
Answer:
a. Check whether the chemical fiber content of the cloth can be welded by ultrasonic wave.
b. Check that the thickness of the cloth is the same as before.
c. Replace the flower wheel (different flower wheels have different patterns). Different welding effects can be obtained by replacing different flower wheels.
d. Check the gear tooth depth, pressure and ultrasonic amplitude.
Q: Is the welding effect of the lace machine related to the specification of the non-woven fabric?
A: The thickness of the non-woven fabric determines the design of the flower wheel. We generally support the welding of the fabric within the specification of 120g. The heavier the fabric specification, the slower the welding speed and the stronger the pressure required.
For more details of Ultrasonic Fabric Sewing Machine, please feel free to contact us!
