Ultrasonic Sealing Sewing Machine

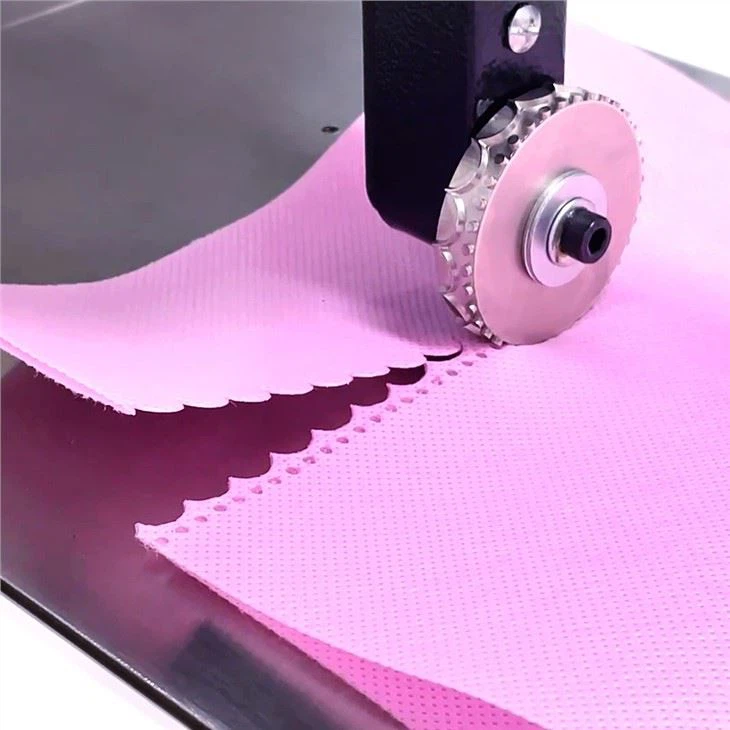

X20 Ultrasonic Lace Sewing Machinery is a 35khz intelligent ultrasonic welding machine and it equipped with intelligent follow-up ultrasonic generator, high-Q transducer, and wear-resistant tool head. No matter it is used in cutting, welding, and stitching. After welding sewing, the product is flat, wrinkle-free, and highly efficient. The whole size machine has HMI control, speed customization, data storage, pressure adjustment, flower wheel diversity, abnormal alarm and other functions....
X20 Ultrasonic sealing sewing machine is a 35khz intelligent ultrasonic welding machine. Which equipped with the intelligent follow-up ultrasonic generator, high-Q transducer, and wear-resistant tool head are composed of ultrasonic core components. No matter it is used in cutting, welding, and stitching, the product is flat, wrinkle-free, and highly efficient. It has the functions of machine HMI control, speed customization, data storage, pressure adjustment, flower wheel diversity, abnormal alarm and so on.
Parameters of Ultrasonic Sealing Sewing Machine
| Model | X20 | X20S |
| Ultrasonic frequency | 35KHz | 35Khz |
| Ultrasonic power | ≤1000W | ≤1000W |
| Ultrasonic generator | JYD-2700S | JYD-2700S |
| Ultrasonic transducer | JYD-3035-4P8-TMF | JYD-3035-4P8-TMF |
| Ultrasonic booster | / | / |
| Motor | Stepper motor + reducer400W 2.7A 1.27NM | Stepper motor + reducer400W 2.7A |
| Reducer | Ratio 1:10 | Ratio 1:10 |
| Working methods | Radially external | Radially external |
| Boding width | ≤8mm | ≤8mm |
| Flower wheel diameter | 45mm | 45mm |
| Max speed | 40m/min | 40m/min |
| Working space | 360mm*130mm | 360mm*130mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1100mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case |
| Package size | 1250mm*700mm*1130mm | 1250mm*700mm*1130mm |
| Weight | 129.3KG | 129.3KG |
Simple Troubleshooting
1. What if the Ultrasonic Sealing Sewing Machine is not firmly welded or fails to be welded?
Answer: a. Check whether the air pressure is 0.4Mpa;
2. The screen is not on after powered on?
Answer: Check whether the power cord is properly inserted, and whether it is AC 220V voltage.
3. The motor fails to turn or is jammed?
Answer: a. Check whether the emergency stop switch is released;
b. Check whether the flower wheel is stuck without lubricants. Remove the flower wheel, add corresponding lubricants and restart.
4. No reaction after front and rear stepping?
Answer: a. Check whether the emergency stop is released;
b. Check whether the air pressure meter has air pressure;
c. Whether there is value in the process parameter.
5. There is turning but no welding after the the pedal flower wheel is stepped on?
Answer: a. Check whether the ultrasonic wave sends out waves. Click on automatic frequency tracing again;
b. Check whether the air pressure has 0.4Mpa air pressure, and whether the air pressure switch is on;
c. Adjust the hard limit at the lower port of the mainframe to a proper position.
Cautions
1. When started, the cover of ultrasonic vibrator shall not be opened to avoid high pressure injury or damage to the machine.
2. The machine must be grounded reliably.
3. When the ultrasonic generator is working, there shall be no open circuit at the output end.
4. When the ultrasonic generator is working, the ammeter indicates more than 2a, and is accompanied by insufficient power (the phenomenon is no edge cut and no perforation), the power shall be turned off immediately, and the operation can be started after the cause of the fault is detected.
5. The continuous working duration of the machine shall be 8 hours.
6. When the machine lies idle, loosen the pressure wheel, cut off the gas source and loosen the flower wheel.
7. The machine must be maintained by special personnel.
8. The luffing rod, motor and foot switch are vulnerable parts, which are not covered by the warranty.
