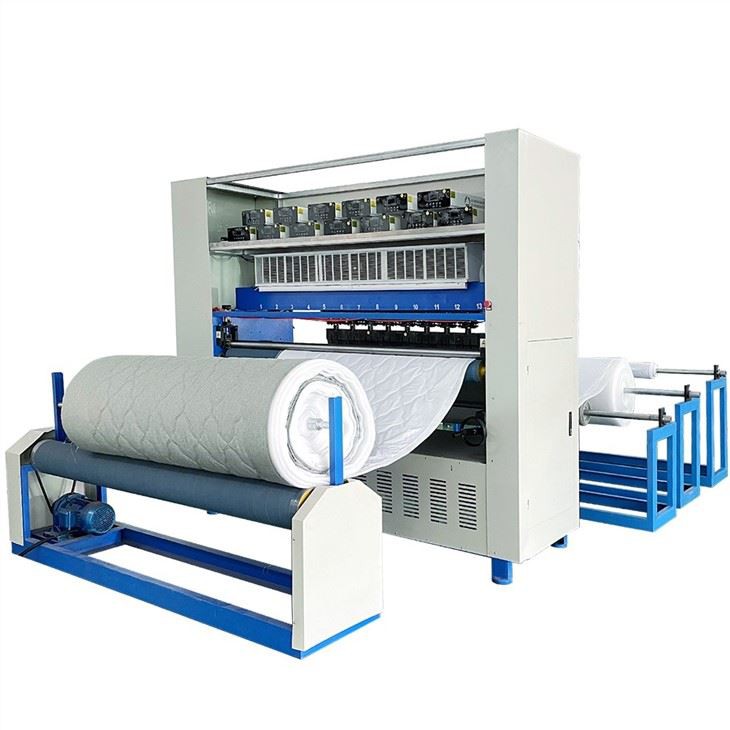

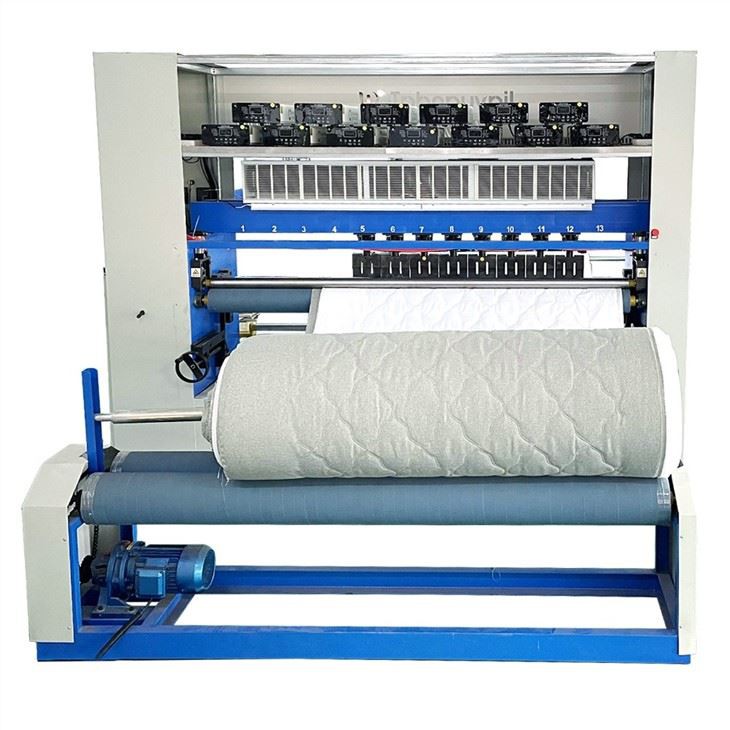

Ultrasonic Laminated Bonding Nonwoven Fabric Machine
XF20-L2000-T13 is a special multi-layer wireless process cloth laminated ultrasonic composite equipment composed of 7-inch HMI human-computer interaction, touch control, pneumatic system and automatic frequency tracking ultrasonic system. It can be defined according to different widths and patterns of customers; Each group of ultrasonic pressure is controlled by zones and adjusted independently. The utility model has the advantages of high welding precision, cleaning of welding surface lines, strong three-dimensional sense, strong adhesion and convenient pattern replacement.....
Machine introduction: Jiayuanda Ultrasonic Laminated Bonding Nonwoven Fabric Machine uses high-frequency oscillation to transmit sound waves from the welding head to the welding surface of the working objects, so that the molecules of the working objects can be rubbed, and multi-layer materials can be sewn wirelessly in the form of composite embossing, home textile, clothing lining, knitting, chair cover, car cover, sofa cover, washing machine cover, car seat cushion, artificial leather, car filter paper, cloth and cloth, cloth and chemical fiber cotton Fusion of plastic film and plastic film, fabric and glue spraying cotton, non-woven fabric, reflective lattice sheet and other materials.
Technical Parameters:
| Model number | Working frequency(max) | Working power | Voltage | Welding speed（max) | Welding width（max） | Controlling system | HMI touch display | Machine body size（L/W/H:mm) | Working whole size（L/W/H:mm) |
| XF20-L2000-T13 | 20KHz | 39KW | 220V 50/60Hz | 30m/min | 2000mm | PLC | 7 inch | 2900*900*2400 | 5000*900*2400 |
Applicable industries:
Spring beds, bedspreads, sheets, quilts, chair cushions, winter clothing liners, nightgowns, pillowcases, sleeping bags, snow suits, padded jackets, car seat covers and other filter products
FAQ:
What are the advantages of Ultrasonic Laminated Bonding Nonwoven Fabric Machine?
1. Short welding time, automatic ultrasonic sewing, no need for stitches, eliminating the trouble of frequently changing stitches. The sewing speed is 5-10 times of the quilting speed of the sewing machine, and the width is customized by the customer;
2. Because the needle is not used, the situation that the needle is left in the material during the sewing process is avoided, and the potential safety hazard is eliminated. It is a new generation of safety and environmental protection products;
3. Traditional suture has no broken joint, with strong adhesion, clear embossing, better three-dimensional relief effect on the surface, and more beautiful products;
4. After processing, the finished product is free of pinholes and leakage, with better waterproof and warm keeping effects;
5. Roller mold is adopted, which is convenient for changing mold. Kaleidoscope and complex discontinuous symmetrical patterns can be sewn, and a variety of flower patterns can be developed according to customer needs;
6. This Ultrasonic Laminated Bonding Nonwoven Fabric Machine has a high degree of automation and intelligence. It is equipped with an infrared automatic edge banding system, which can automatically correct each layer of material, so that the upper and lower materials can always be aligned during sewing, with low processing loss and smoother and more stable products.
For more details of Ultrasonic Laminated Bonding Nonwoven Fabric Machine, please feel free to contact us !
