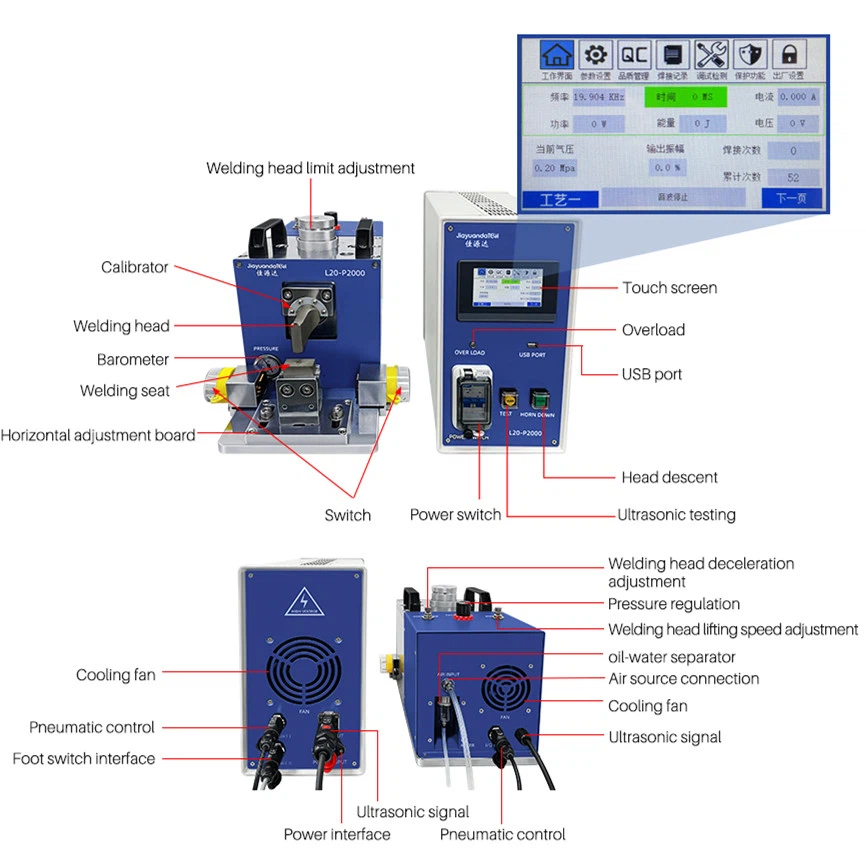

Ultrasonic Battery Cell Spot Welder
The working principle of Ultrasonic Battery Cell Spot Welder is because there is a certain distance between the welding points, so it is only used for welding of thin plate lap structures and metal meshes, cross-linked steel structural parts that do not have tightness requirements.
20KHz /40KHz Ultrasonic Battery Cell Spot Welder is an efficient and reliable welding method.
Welding application categories
(1) Ultrasonic welding of copper and aluminum foils using metal foil is a typical application in battery production. The thickness of the foil varies from 6um to 0.3mm, and the number of layers welded ranges from two to 160. Typical cases include pole ear welding of square shell cells, soft packs, and cylindrical cells
(2) In ultrasonic welding of terminals, the thickness of the metal plates that are welded to each other can reach 3mm, and the welding strength requirements for this application are much higher. Terminal and terminal welding is used for connecting large load currents (3) Cable and terminal welding. In modern vehicles, cables and terminal connectors assembled by ultrasonic welding have become essential parts, with cable cross-sectional sizes ranging from 6-85m ² and materials made of copper and aluminum
Parameters
| Product model | L40-P800 | L20-P2000 | L20-P4500 |
| Power supply | Single phase AC220V/AC110V switchable 50Hz | Single phase AC220V/AC110V switchable 50Hz | Single phase AC220V/AC110V switchable 50Hz |
| Air supply | Compressed air 0.1-0.6MPa | Compressed air 0.1-0.6MPa | Compressed air 0.1-0.6MPa |
| Ultrasonic peak power(W) | 800 | 2000 | 4500 |
| Maximum power of the machine(W) | 1000 | 2000 | 4500 |
| Ultrasonic frequency(KHz) | 40 | 20 | 20 |
| Maximum ultrasound time(s) | 0.4s | 0.4s | 0.4s |
| Adjustable accuracy of ultrasound time(s) | 0.01s | 0.01s | 0.01s |
| Ultrasonic mold connection thread size | M8*1.25 | 1/2*UNF | 1/2*20UNF |
| Data output | Can export each welding data from an external USB drive | Can export each welding data from an external USB drive | Can export each welding data from an external USB drive |
| Upper mold size(mm) | 4×4 | 4×4 8×4 | 12×4 8×4 |
| Bottom mold size | 20×20 quick disassemble and replaceable | 20×20 quick disassemble and replaceable | 20×20 quick disassemble and replaceable |
| Maximum number of welding layers | 20 layers of copper foil (negative electrode) 20 layers of aluminum foil (positive electrode) | 30 layers of copper foil (negative electrode) 30 layers of aluminum foil (positive electrode) | 60 layers of copper foil (negative electrode) 60 layers of aluminum foil (positive electrode) |
Features of Ultrasonic Battery Cell Spot Welder
Ultrasonic battery electrode welding machine, lithium battery electrode lug welding machine
1. Welding process without filler filler and gas protection;
2. Welding parts need not be pre-treated before welding (proper amount of oxide layer and insulation will not affect the welding effect);
3. There is no metal splash or spark during welding. The workpiece will not be annealed, without cold water;
4. In welding of electrically conductive objects, no contact resistance is generated at the welding place;
5. The temperature of the solder joint is equal to that of the base material, and it will not be separated at the solder joint at high temperature;
6. Used for spot welding (welding speed about 0.5 seconds/time), can also be used for continuous seam welding;
7. High spot welding degree (+-0.01mm), and can be controlled;
8. Welding head made of special steel, long working life (1 million times);
9. Excellent welding penetration mixing effect for different or similar metals (such as copper + copper or aluminum + copper);
10. Small size, highly automatic, suitable for assembly line or automatic equipment;
11. Very low energy consumption (about 1/5 of resistance welding);
12. High reliability. It can ensure welding accuracy by detecting time, energy, limit and frequency;
13.100% process welding, quality assurance;
14. Vertical (non-fan) pressure system, highly uniform plane after welding, simple adjustment.
