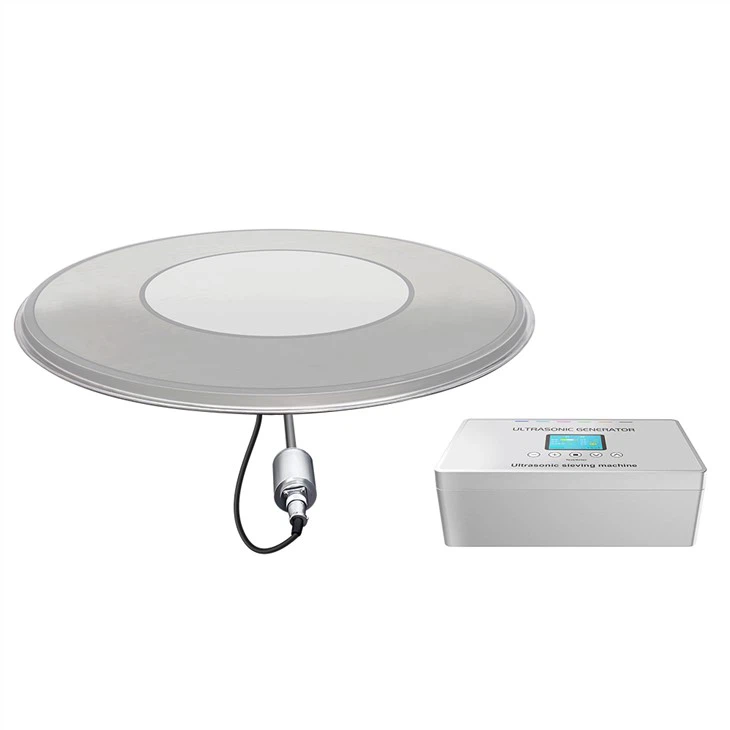

Ultrasonic Vibration Sieving Machine
MAR series is a professional ultrasonic screening system, which is composed of ultrasonic generator and screen transducer. It can meet the use range of 28 ~ 38kHz frequency. The system can automatically track the best resonant frequency and compensate for the detuning caused by heating and other reasons; It can also be added to any new or existing vibrating screen......
Main features of ultrasonic vibration sieving machine：
- Comprehensive and detailed product information and documentation
- The ultrasonic screening system module independently developed by Jiayuanda can maintain the integrity of the screen and extend the service life on site.
- The use of Jiayuanda ultrasonic screening system can prevent the clogging of the mesh holes and the impaction of similar particles on the screen mesh holes, effectively protecting the service life of the screen.
- The ultrasonic screening system can effectively remove dirt from the screening materials and improve the quality of the screening objects.
- Low and stable operating temperature will not make the local temperature higher; it will not change the characteristics of the material and more suitable for new materials;
Basic parameter of Ultrasonic Vibration Sieving Machine
| Product number | MAR28-D55 | MAR28S-D58 | MAR28-D74 | MAR35S-D58 | MAR35-D58 |
| Ultrasonic frequency | 25.5~29.5KHz | 25.5~29.5KHz | 25.5~28KHz | 33~39KHz | 33~39KHz |
| Ultrasonic power | ≤60W | ≤100W | ≤100W | ≤100W | ≤100W |
| Ultrasonic generator | JYD-2900EM | ||||
| Display method | 3.2-inch display | ||||
| Ultrasonic Transducer | JYD-3828-4P8-SE-D55 | JYD-3828-4P8-TR-D58 | JYD-5028-4P8-SMFI | JYD-3035-4P8-TMVF-D55 | JYD-3835-4P8-SR-D58 |
| Fixed method | External | External | built-in | External | built-in |
| Generator size | 280mm*170mm*90mm | 280mm*170mm*90mm | 280mm*170mm*90mm | 280mm*170mm*90mm | 280mm*170mm*90mm |
| Generator + transducer assembly size | 415x355x1750mm | 415x355x1750mm | 450x420x175mm | 415x355x175mm | 450x420x175mm |
| Working power supply | 220V ±10% 50-60Hz | ||||
FAQ：
Q: What to pay attention to when using salt Ultrasonic Vibration Sieving Machine
1. The voltage must be stable. If the voltage fluctuates between high and low, causing instability in the salt ultrasonic screen generator, it will cause the ultrasonic sieve transducer to burn out. The salt ultrasonic screening system consists of a ultrasonic power supply, HF connecting cable, ultrasound transducer, and resonator.
2. The ultrasonic sieve transducer in working condition must be tightened to prevent dust from entering the ultrasound sieve transducer. If dust accidentally enters the ultrasonic screen transducer, it may cause the ultrasonic sieving transducer to burn out.
3. Do not turn on the ultrasound power supply when the grid is not loaded or stretched. Otherwise, it is easy to cause power overcurrent and damage to the grid and sieve transducer.
4. Salt ultrasonic vibrating screen cannot be operated for a long time in a state greater than the rated current. If operated for a long time in a state greater than the rated current, it will burn out the ultrasonic transducer.
5. The sieve transducer on the power supply of the salt ultrasonic vibrating screen must be matched with it. If the salt ultrasonic vibrating screen generator cannot be effectively matched without testing, it will cause the transducer to burn out.
Q：What are the techniques for using Ultrasonic Vibration Sieving Machine?
Selection of model
Mainly determined based on the following conditions:
1. The name, bulk density, viscosity, and temperature of the screened material.
2. Hourly processing capacity.
3. Number of mesh screens.
4. The particle size ratio of materials and the required screening accuracy.
5. The acidity and alkalinity of the material (determine whether to use 304 # stainless steel or 316L stainless steel).
6. The space size for placing vibrating screens in the production site.
