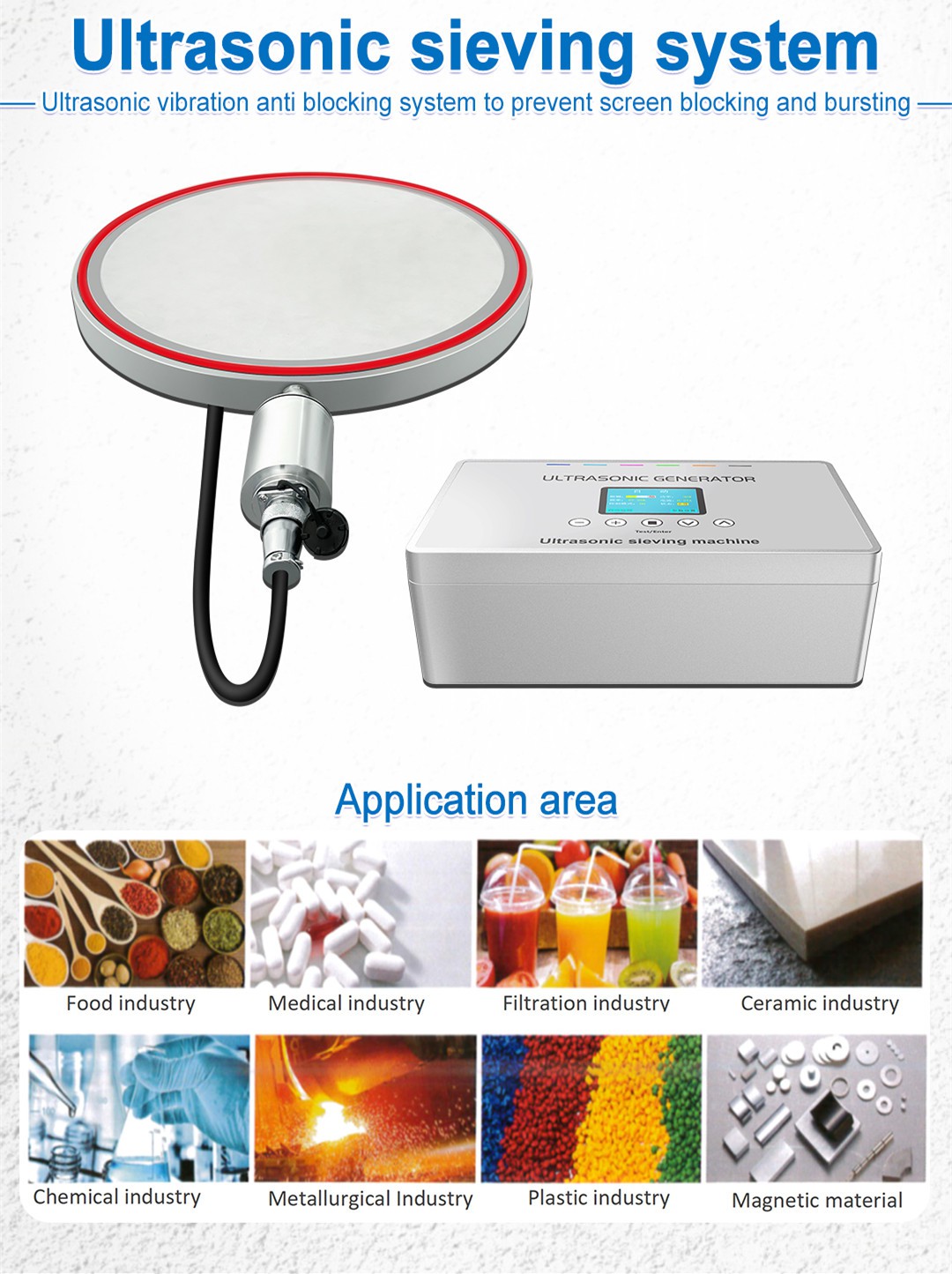

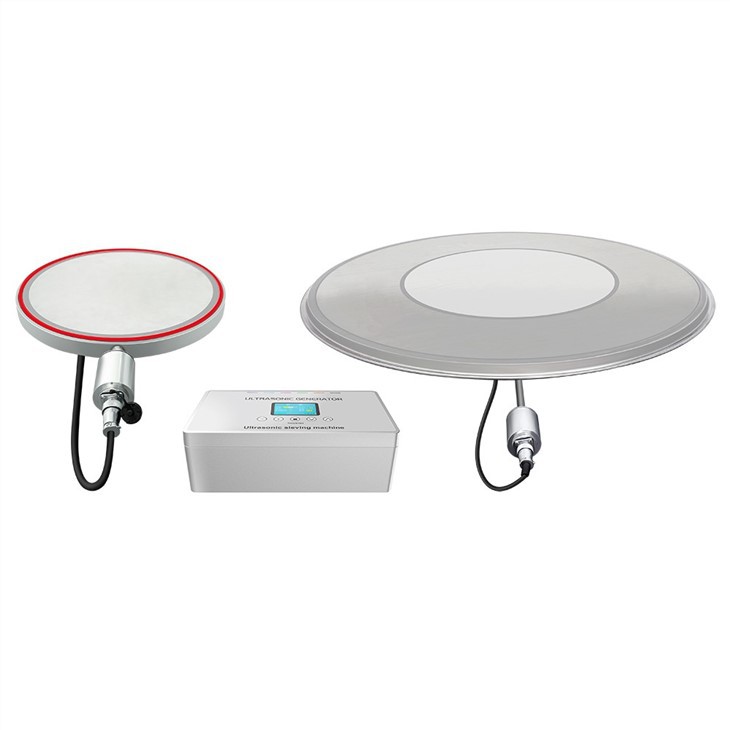

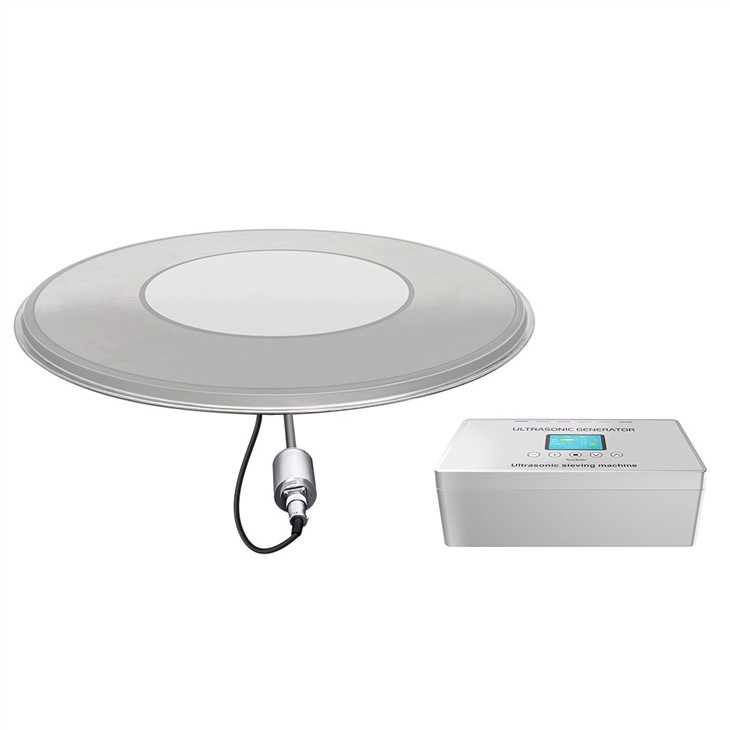

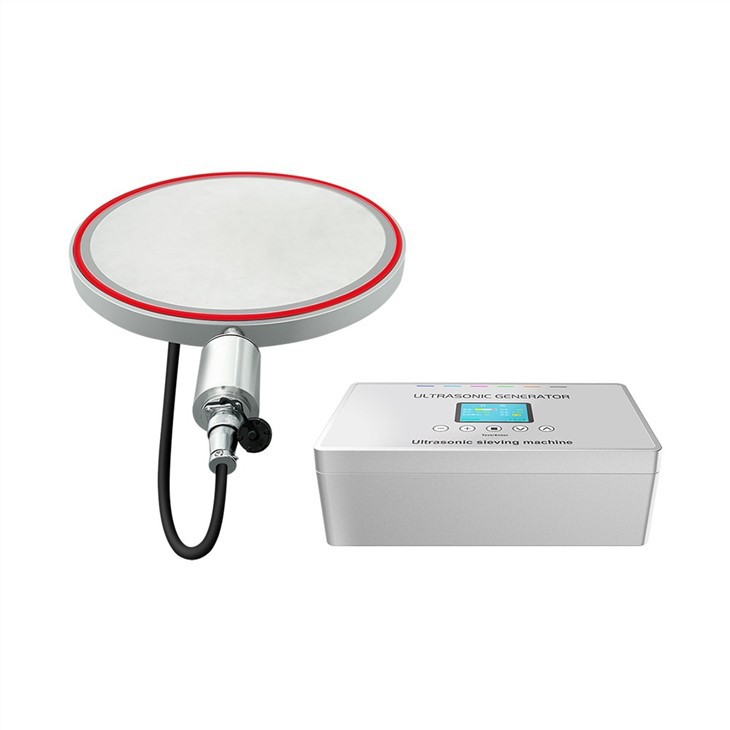

Ultrasonic Rotary Sieve System
MAR series is a professional ultrasonic screening system, which is composed of ultrasonic generator and screen transducer. It can meet the use range of 28 ~ 38kHz frequency. The system can automatically track the best resonant frequency and compensate for the detuning caused by heating and other reasons; It can also be added to any new or existing vibrating screen.....
Welcome to Jiayuanda Technology's ultrasonic screen conversion system to increase the productivity of your current vibrating screen device; No matter what your screening application is, no matter what specifications your current vibrating screen is, after purchasing our ultrasonic screening system from Jiayuanda, it only takes a few minutes to convert your existing rotary screen machine into a ultrasonic screening machine.
The Ultrasonic Rotary Sieve System is a derivative of the rotary vibrating screen device, which organically combines the ultrasonic system with the vibrating screen. Based on the MAR series ultrasonic rotary screen system independently developed and produced by Jiayuanda Company.
Due to high-frequency, low-amplitude ultrasonic vibration waves are superimposed on the screen, so the ultra-fine powder is subjected to huge ultrasonic acceleration, which keeps the materials on the screen surface in a suspended state, thereby suppressing clogging factors such as adhesion, friction, and leveling wedges, thereby solving the problem of strong adsorption and easy screening.
Speficiation of Ultrasonic Rotary Sieve System
| Product number | MAR28-D55 | MAR28S-D58 | MAR28-D74 | MAR35S-D58 | MAR35-D58 |
| Ultrasonic frequency | 25.5~29.5KHz | 25.5~29.5KHz | 25.5~28KHz | 33~39KHz | 33~39KHz |
| Ultrasonic power | ≤60W | ≤100W | ≤100W | ≤100W | ≤100W |
| Ultrasonic generator | JYD-2900EM | ||||
| Display method | 3.2-inch display | ||||
| Ultrasonic Transducer | JYD-3828-4P8-SE-D55 | JYD-3828-4P8-TR-D58 | JYD-5028-4P8-SMFI | JYD-3035-4P8-TMVF-D55 | JYD-3835-4P8-SR-D58 |
| Fixed method | External | External | built-in | External | built-in |
| Generator size | 280mm*170mm*90mm | 280mm*170mm*90mm | 280mm*170mm*90mm | 280mm*170mm*90mm | 280mm*170mm*90mm |
| Generator + transducer assembly size | 415x355x1750mm | 415x355x1750mm | 450x420x175mm | 415x355x175mm | 450x420x175mm |
| Working power supply | 220V ±10% 50-60Hz | ||||
FAQ:
Q：What about the features of the built-in ultrasonic rotary sieve system generator?
1. High efficiency: The built-in screening ultrasonic vibrating screen power generator uses the vibration effect of ultrasonic waves to make the materials more easily dispersed during the screening process, thereby improving screening efficiency.
2. High precision: This sieve equipment can accurately control the movement trajectory of materials during the screening process and achieve high-precision screening effects.
3. Environmental protection and energy saving: Compared with traditional screening equipment, the built-in screening ultrasonic vibrating screen power generator produces less noise and dust pollution during operation, which meets environmental protection requirements.
4. Wide scope of application: This sieve device is suitable for screening various materials, especially materials that are easy to agglomerate and block.
Built-in screening ultrasonic vibrating screen power generator is widely used in chemical, food, pharmaceutical, metallurgy, environmental protection and other industries.
In the chemical industry, this equipment can be used to screen catalysts, pigments, coatings and other materials;
In the food industry, it can be used to screen powdered food raw materials, additives and other materials;
In the pharmaceutical industry, it can be used to screen pharmaceutical raw materials, intermediates and other materials.
In the metallurgical industry, it can be used to screen metal powder, ore and other materials;
In the environmental protection industry, it can be used to screen materials in wastewater treatment, solid waste treatment and other fields.
Q: How to improve the service life of ultrasonic rotary sieve system?
1. When using the vibrating screen, it is necessary to understand the internal structure of the vibrating screen and the working principle of the vibrating screen, so that when there is a problem with the vibrating screen, we can know the cause in time.
2. When using the sieve device, users should uniformly feed materials for production according to the parameters of their own vibrating screens to avoid clogging the screen and accumulating material due to excessive amounts. Feeding too little will affect output and screening efficiency
3. Repair and maintenance: When using the vibrating screen, should be paid attention to daily repair and maintenance. After the sieve machine stops running, it will need clean the residue on the screening mesh in time
Q: What about the causes of frequent fracture of sealing ring of Ultrasonic Rotary Sieve System?
1. There is a problem with the quality of the seal ring itself. The tensile strength of the seal ring is poor, and the rubber content is too low, which resulting in the seal ring being inelastic and it is very easy to break
2. The seal ring also has different sizes, If the selected size is too small and does not match the diameter of the screen frame, the seal ring will be broken
3. The vibration is too large, and the exciting force of the vibrating screen is too large, which will resulting in insufficient elasticity of the sealing ring and its fracture
4. The screen frame itself has a hard welded joint, etc., which abrades the sealing ring
