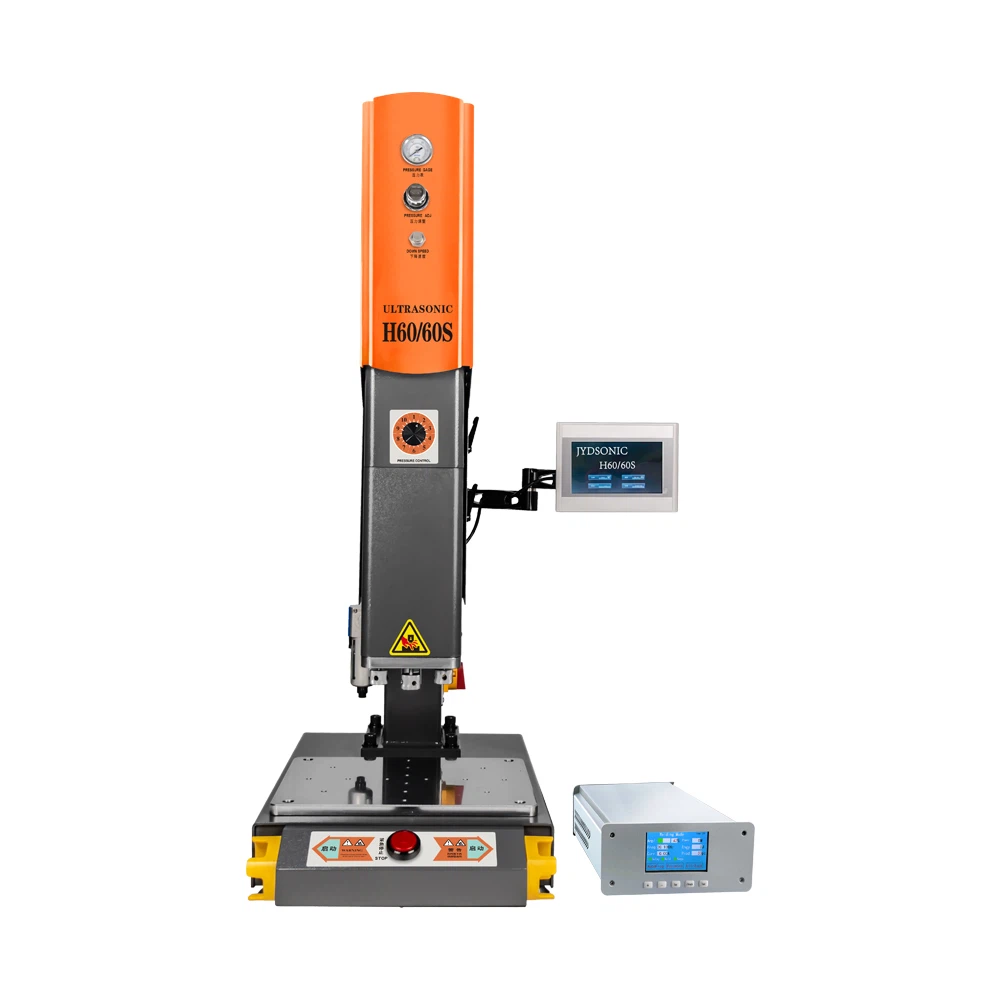

The Four Parameters of Ultrasonic Welding Machines and Their Impact on Welding Effectiveness

In the use of ultrasonic plastic welding machines, many engineers face this confusion: despite using the same equipment model and welding parameters, a perfectly sealed weld one time may result in overflow, weak welding, or even workpiece damage the next. What is the underlying cause? Today, we uncover the technical truth behind this phenomenon.

Ultrasonic welding is not a simple "set-and-forget" process. It is a precise energy transfer system whose final outcome is influenced by multiple interrelated variables. Identical parameters yielding different results often stem from the following easily overlooked key factors.

1. The "Attenuation Trap" of Amplitude Transmission

The "amplitude" value set on the ultrasonic generator does not equal the actual amplitude acting on the workpiece. Vibrations generated by the transducer are amplified through the booster and transmitted to the horn (tool) before reaching the welding interface. Any mechanical loss or installation deviation in this transmission chain can lead to energy attenuation. For example, microscopic dust or wear on the connecting surface between the horn and the booster-even slight unevenness of a few micrometers-can significantly reduce amplitude transmission efficiency. With the same parameters, proper installation one time ensures sufficient energy transfer, while slightly loose clamping force next time may reduce welding energy by 10%–15%, inevitably affecting results. This is like a relay race where every handover is critical.

2. The "Hidden Drift" of Horn Resonance Frequency

Ultrasonic horns are resonant bodies designed to operate at specific frequencies (e.g., 20 kHz, 15 kHz). Ideally, they should perfectly match the generator's output frequency to achieve resonance. However, prolonged high-frequency vibration generates micro-thermal stress within the horn, potentially causing minute "drift" in its natural resonance frequency. When the horn's frequency deviates from the equipment's optimal resonance point, system efficiency declines. Although panel parameters remain unchanged, actual output energy diminishes. Simultaneously, frequency mismatch accelerates horn fatigue, creating a vicious cycle. This is similar to a musical instrument's tuning-even a slight deviation produces a different sound.

3. The "State Variables" of Plastic Materials

Many overlook the fact that plastic materials are not constant. Even with the same grade of raw material, different batches may have slight variations in melt flow index, moisture content, or additive proportions. More importantly, the hygroscopic nature of plastics leads to changes in moisture content, and water vaporizes instantly under ultrasonic vibration, affecting the melting state at the welding interface. Additionally, residual stress distribution and shrinkage rates in injection-molded workpieces can fluctuate. These "hidden variables" in material state alter the energy required for welding. Treating materials as absolutely constant is often the root cause of inconsistent welding results.

4. The "Performance Fluctuations" of Equipment State

Power components (e.g., IGBTs) inside the ultrasonic generator experience performance degradation over time. Aging capacitors and thermal instability in circuit boards can cause deviations between the actual output waveform and the set value. This gradual decline in electrical performance is hard to detect directly from panel parameters but genuinely affects the energy precision of each weld. Meanwhile, minor changes in auxiliary systems-such as pressure stability in pneumatic systems or sensor sensitivity-also impact welding repeatability. The equipment functions as a whole, and fluctuations in any subsystem are amplified in the final welding quality.
