The Working Principle And Main Product Characteristics Of Ultrasonic Nano Homogenizer Are Introduced

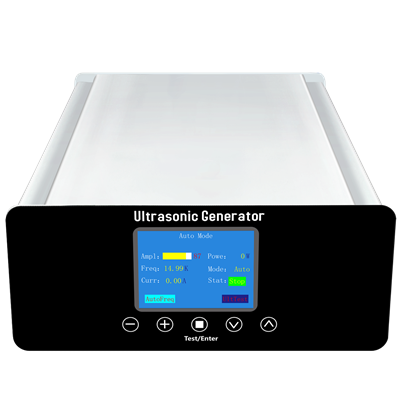

Ultrasonic nano homogenizer can upgrade your ordinary equipment to advanced chemical equipment with ultrasonic wave through simple installation without changing the customer's existing production equipment and process flow. The ultrasonic power is large, the investment is small, the installation is simple, the output and the efficiency are improved obviously. The instrument is composed of ultrasonic vibration parts and ultrasonic driving power supply and reaction kettle three parts: ultrasonic vibration parts mainly include high-power ultrasonic transducer, amplitude rod, tool head (transmitter head), used to produce ultrasonic vibration, and the vibration energy to the liquid emission. The transducer converts the input electrical energy into mechanical energy, which is ultrasonic. Its expression form is the transducer in the longitudinal to and fro telescopic motion, the amplitude is generally in a few microns. Such an amplitude power density is not enough to be used directly. The rod is designed to amplify the amplitude, isolate the reaction solution and the transducer, and also to anchor the entire ultrasonic vibration system. The tool head is connected with a lube rod, which transmits ultrasonic energy vibration to the tool head, and then the tool head emits ultrasonic energy into the chemical reaction liquid. The ultrasonic nano homogenizer has the following main characteristics:

1, 99-hour process control timer, control the total working time: from 1 second to 99 hours, pause the current running task in real time.

2, automatic resonance point and power control, no need to often manually adjust the energy.

3. The working time is displayed in a cumulative state.

4. Automatic amplitude compensation ensures that the amplitude of the probe does not change due to the change of load during the ultrasonic process.

5, on/off pulse timer, to ensure high intensity processing temperature sensitive samples, on and off cycles can be set from 1 second to 99 hours.

6, overload protection: equipment self-test, and the timer time is suspended.

7, over temperature protection: protect the temperature of sensitive samples, and the timer time is suspended.
