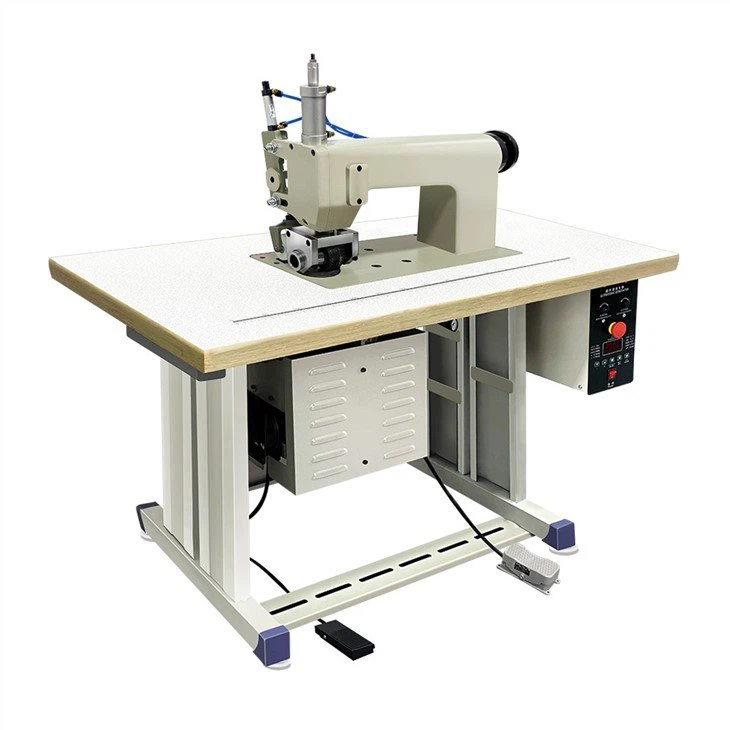

Ultrasonic Surgical Clothes Sealing Machine
X30S is an automatic high-power ultrasonic lace machine. The ultrasonic core components composed of intelligent frequency tracking ultrasonic generator, high-Q ultrasonic transducer, and wear-resistant tool head have good performance in cutting, welding, and stitching. The whole machine is digitally controlled, driven by dual motors, adjustable speed, pneumatic pressure control, flower wheel diversity and abnormal protection functions...
The Ultrasonic Surgical Clothes Sealing Machine is a sophisticated equipment that utilizes ultrasonic energy for the purpose of sealing surgical clothes. It has pneumatic operation mode, imported ultrasonic accessories, high energy conversion and high utilization efficiency, failure protection device. The machine employs ultrasonic energy to perform various operations such as cutting, welding, sealing, and seaming surgical clothes, which ensures precise and efficient sealing and eliminates the need for traditional sewing methods. And the processed surgical gown has better sealing and waterproofing properties.
Features：

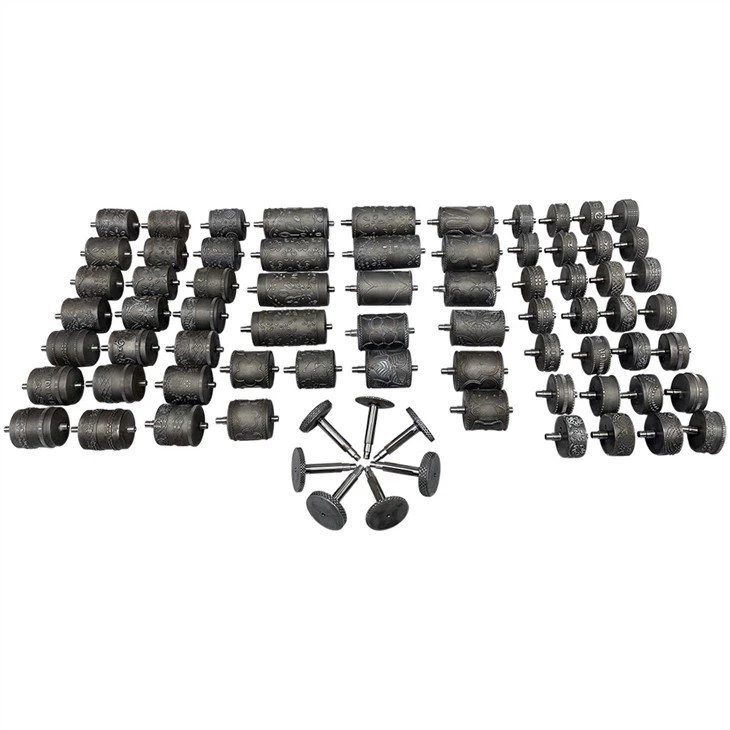

1. The flower wheel of the Ultrasonic Surgical Clothes Sealing Machine is wear-resistant and easy to disassemble and apply flexibly;
2. The machine can run at high speed for a long time, especially suitable for large-scale production of surgical gowns;
3. It can directly sew various fabrics, such as non-woven fabrics, nylon, and polyester fibers, polyurethane, acetate fiber etc., and trim, split, and punch these fabrics so that the product can be formed in one go without burrs and chips;
4. Fast speed, high production efficiency, capable of welding 20 layers of non-woven fabric or polyester fibers at once, with a welding thickness of up to 2mm;
5. The machine is a pneumatic adjustment device, which is more convenient to operate;
6. The surgical gown processed by this machine has smooth seams without any wrinkles, and has good sealing and waterproof properties.
Parameters of Ultrasonic Surgical Clothes Sealing Machine
| Model | X30S-D54 | X30S-D77 |
| Ultrasonic frequency | 20KHz | 20KHz |
| Ultrasonic power | ≤2600W | ≤2600W |
| Ultrasonic generator | JYD-2900SP | JYD-2900SP |
| Ultrasonic transducer | JYD-5020-6P8-AU | JYD-5020-6P8-AU |
| Ultrasonic booster | S20-D54D38H129-H | S20-D54D38H129-H |
| Motor | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz |
| Reducer | / | / |
| Working methods | built-in | built-in |
| Boding width | ≤25mm | ≤50mm |
| Flower wheel diameter | 50mm | 50mm |
| Max speed | 20m/min | 20m/min |
| Working space | 370mm*155mm | 370mm*155mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1100mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case |
| Package size | 1250mm*600mm*1160mm | 1250mm*600mm*1160mm |
| Weight | 88.5KG | 88.5KG |
Scope of application of Ultrasonic Surgical Clothes Sealing Machine
Ultrasonic seamless sewing plays an increasingly important role in various industries, and also plays an important role in garment manufacturing and development.
Clothing industry
For garment manufacturers, ultrasonic sewing machines are very fast, clean and economical. Ultrasonic can be used for various artificial fabrics and plastics, and the minimum content of 60% thermoplastic plastics can also be used for natural fabrics. Ultrasonic seamless stitching technology provides beautiful and smooth seams for lightweight underwear and sportswear fabrics, and is also very suitable for connecting with Velcro and polyester tape. The fabric seam can be completely and smoothly attached to the body with adhesive tape, which is 4 times stronger than the sewn seam.
Medical industry
The ultrasonic sewing machine can produce commonly used clothing, including protective clothing, disposable hospital surgical clothes, shoe covers, masks, baby warm clothing, filters, bags, curtains, sails and mesh splicing, etc. Ultrasonic seams are beneficial in the manufacture of these items because sealing edges and seams without suture holes will not penetrate chemicals, liquids, blood borne pathogens or other particles.
Outdoor products industry
Because ultrasonic stitching is impermeable, which can form firm joints and reduce the formation of holes, the modified technology is also used to manufacture outdoor products such as sails and parachutes. This technology is widely used in clothing, waterproof backpacks, outdoor tents, military equipment, etc. for skiing, cycling, sailing, mountaineering, rowing, hiking and other sports.
For more details of Ultrasonic Surgical Clothes Sealing Machine, please feel free to contact us!
