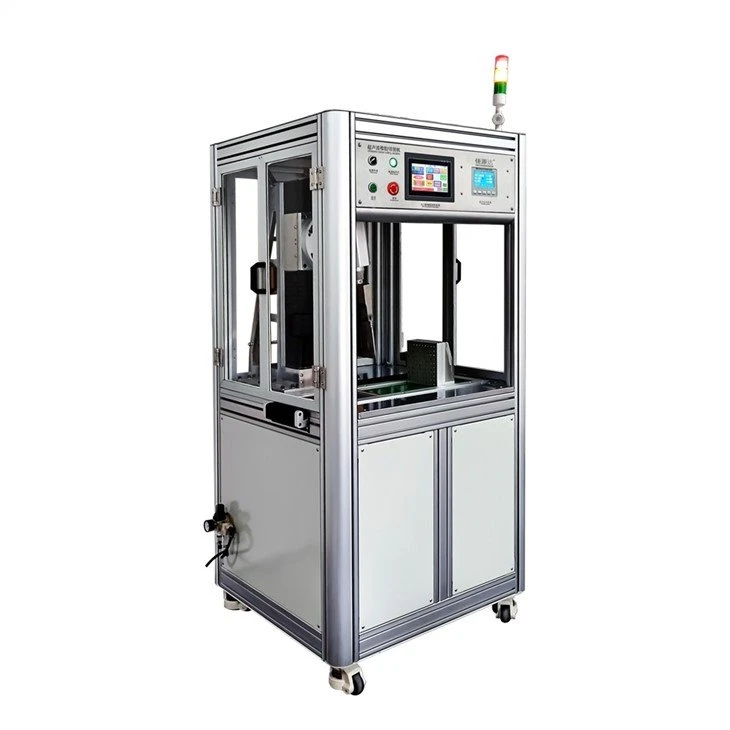

Ultrasonic Rubber Cutter
Jiayuanda G20 ultrasonic rubber cutting machine is composed of an automatic frequency tracking generator, a high-Q ultrasonic transducer, and a titanium alloy cutting knife(cutting knife width included 20Khz 95mm,190mm,254mm,355mm; 40Khz 85mm 120mm 190mm).It has a good performance in rubber cutting. The whole machine is simple and convenient to install, real-time frequency tracking, adjustable amplitude, abnormal protection, etc.; it can be controlled by PLC or RS485 communication....
Ultrasonic Rubber Cutter Machine not only improves the production efficiency, but also reduces the downtime and changes the cutting mode of rubber. The edge banding effect of ultrasonic cutting rubber is the best, and the cutter head will not be worn.
Ultrasonic cutting is to use ultrasonic cutting knife to concentrate ultrasonic energy on the cutting part of the material to be cut. Therefore, the rubber will be softened by ultrasonic energy, and the strength of the material will be reduced. The traditional cutting method is to use the sharp edge of the blade. The blade is made of high hardness material, and its strength exceeds the strength of the material to be cut, and it is pressed on the material to be cut. The pressure of the cutting edge exceeds the shear strength of the material to be cut, which resulting in the fracture of the molecular chain of the material to be cut, that to achieve the purpose of cutting the material. Secondly, elastic materials or soft materials cannot be cut in this way, and the cutting efficiency of viscous materials is low.
Product parameter
Model number | Frequency | Power | Cutting Width | Cutting Height |
G20-150RC | 20KHz | 2000W | 150 mm | 100 mm |
G20-100TC | 20KHz | 2000W | 100 mm | 10 mm |
Product feature：
1) The amplitude of the ultrasonic rubber cutter is much higher than the ordinary model, which increases the sharpness of the cutter;
2) Cut and seal at the same time to make the processed products without burr;
3) It is suitable for automatic manufacturer line;
FAQ：
Q: Do you have it in stock?
A: Most of product available, if you have special requirement, pls feel free contact us.
Q: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products.
Q: How long do you make the order product?
A: If the machine already in stock, and then it usually need 3-7days after all details confirmed; if you need some special custom request, there will need 15-30 days for prepared
For more details of Ultrasonic Rubber Cutter, please feel free to contact us ！
