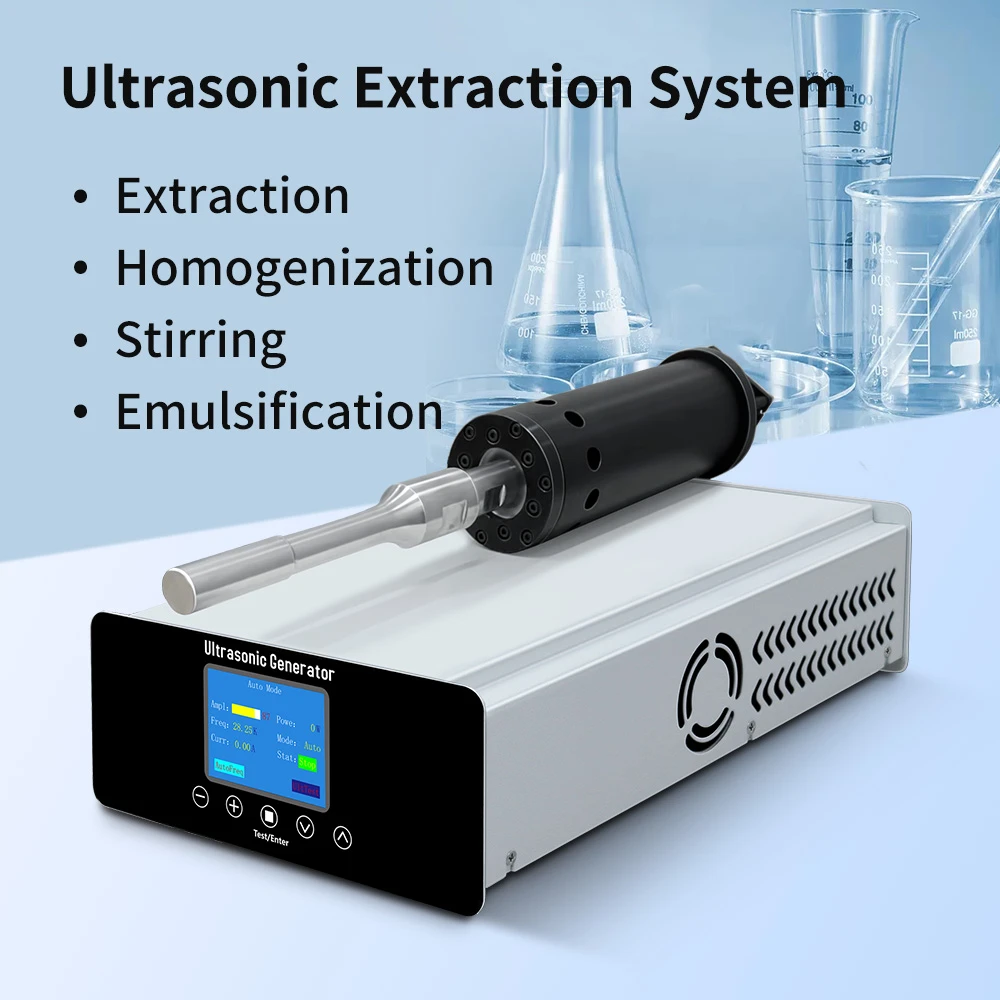

Ultrasonic Disperser Processor
Ultrasonic disperser processor is a multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effect in liquid and ultrasonic treatment of material. It can be used for the crushing of various animal and plant cells and virus cells, and which can be used for emulsification, separation, homogenization, extraction, defoaming, cleaning and accelerating chemical reactions, etc.It is widely used in biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology and other fields.
Main feature:
1. Large ultrasonic disperser processor, high dispersion efficiency, suitable for fields where the efficiency can be increased by more than 200 times.
2. The dispersed particles are finer and the uniformity and stability are better.
3. It can disperse materials that cannot be dispersed by traditional mechanical stirring. It can also disperse high-viscosity materials.
4. The dispersed particles have strong stability and are not easy to agglomerate.
5. Usually installed with a snap flange for easy movement and cleaning.
6. The experimental equipment is light, flexible, and easy to move.
Application:
Ultrasonic disperser processor is an instrument that uses the "cavitation" effect of ultrasonic waves in the liquid to disperse and deagglomerate particles in the liquid. Can be used in catalysts, matting agents, pigments, graphite, paints and coatings, alumina, compound fertilizers, fillers, herbicides, fungicides, powder emulsions, nanomaterial preparation, food sample testing, etc.
At the same time, ultrasonic dispersion equipment can be used for emulsification, extraction, homogenization, extraction, cleaning accelerated chemical reactions, etc. Instruments are widely used in teaching, scientific research, and production in the fields of food, cosmetics, medicine, chemistry, new materials, agronomy, chemical industry, sewage treatment, nanomaterials, and other fields.
According to the three-step method of ultrasonic sonochemical application, the ultrasonic dispersers developed and produced by the company can be divided into laboratory-level equipment, pilot cycle equipment, and production line equipment. Customers can choose equipment according to different needs.
| Model | Ultrasonic frequency | Ultrasonic power | Standard tool head 1/1 | Ultrasonic generator model | Ultrasonic transducer model | Dispersed capacity | duty cycle | Protective function |
| CQ28-P800 | 28KHZ±1KHZ | ≤500W | T28-D10L135 | 2900SP-CQ | JYD-3828-4P8-AU | ≤6L | 10%-100% | Over temperature/over power overtime/overload |
| CQ28-P1200 | 20KHZ±0.5KHZ | ≤600W | T28-D20L187 | 2900SP-CQ | JYD-5020-6P4-AU | ≤10L | 10%-100% | Over temperature/over power overtime/overload |
| CQ20-P2000 | 20KHZ±0.5KHZ | ≤1200W | T20-D30L490 | 2900SP-CQ | JYD-5020-4P4-AU | ≤30L | 10%-100% | Over temperature/over power overtime/overload |
| CQ20-P2600 | 20KHZ±0.5KHZ | ≤2000W | T20-D30L490 | 2900SP-CQ | JYD-5020-6P4-AU | ≤50L | 10%-100% | Over temperature/over power overtime/overload |
FAQ:
Q：What are the significant advantages of ultrasonic disperser processor?
Firstly, the product can achieve efficient sample dispersion in a short period. Its powerful ultrasonic vibration signal can quickly generate intense turbulence, enabling better interaction and collision between particles and liquids, thereby effectively breaking the aggregation structure of solid samples. This high-efficiency dispersion process can significantly reduce experimental time and improve material transfer and reaction rate during the reaction or preparation process.
Secondly, this product can be widely applied to different types of materials and samples. It can handle both solid materials (such as ceramics, metal powders, etc.) and liquid samples (such as sol, suspension, etc.). Whether it is uniform mixing, emulsification, ion exchange, or nanoparticle preparation, this product has excellent performance when used. At the same time, the device has good adjustable performance, and users can choose the appropriate frequency and power for operation according to specific needs.
In addition, the ultrasonic disperser also shows the characteristic of less damage to the original material. Due to the use of non-contact operation, it avoids factors such as mechanical stirring or high-temperature treatment that may cause particle structure damage. This provides favorable conditions for maintaining sample purity and stability and makes ultrasonic dispersion an ideal method, especially in fields such as biomedical, food processing, and pharmaceutical formulations that require mild treatment of materials.
However, there are also some operating points to note when using this product. Firstly, it is important to choose appropriate working parameters, including frequency, power, and operating time. Different samples have different characteristics, and adjusting according to different needs can achieve better results. Secondly, it is necessary to control the liquid temperature appropriately. Excessive heat generated at high power can affect the reaction effect and cause safety hazards.
In summary, ultrasonic disperser processor have become one of the important equipment in modern laboratories due to their advantages of speed, efficiency, wide applicability, and low damage.
Q： What about your after-sales service?
1. Express delivery within 3-7 working days after payment is received.
2. The whole ultrasonic disperser processor has a one-year warranty (except for the I tool head). Free repair or replacement is provided during the warranty period. After the warranty expires, only the cost of replacement parts will be charged, and maintenance labor fees will be reduced or exempted.
3. Engineers provide video guidance on installation and operation; engineers for large equipment can provide door-to-door service.
