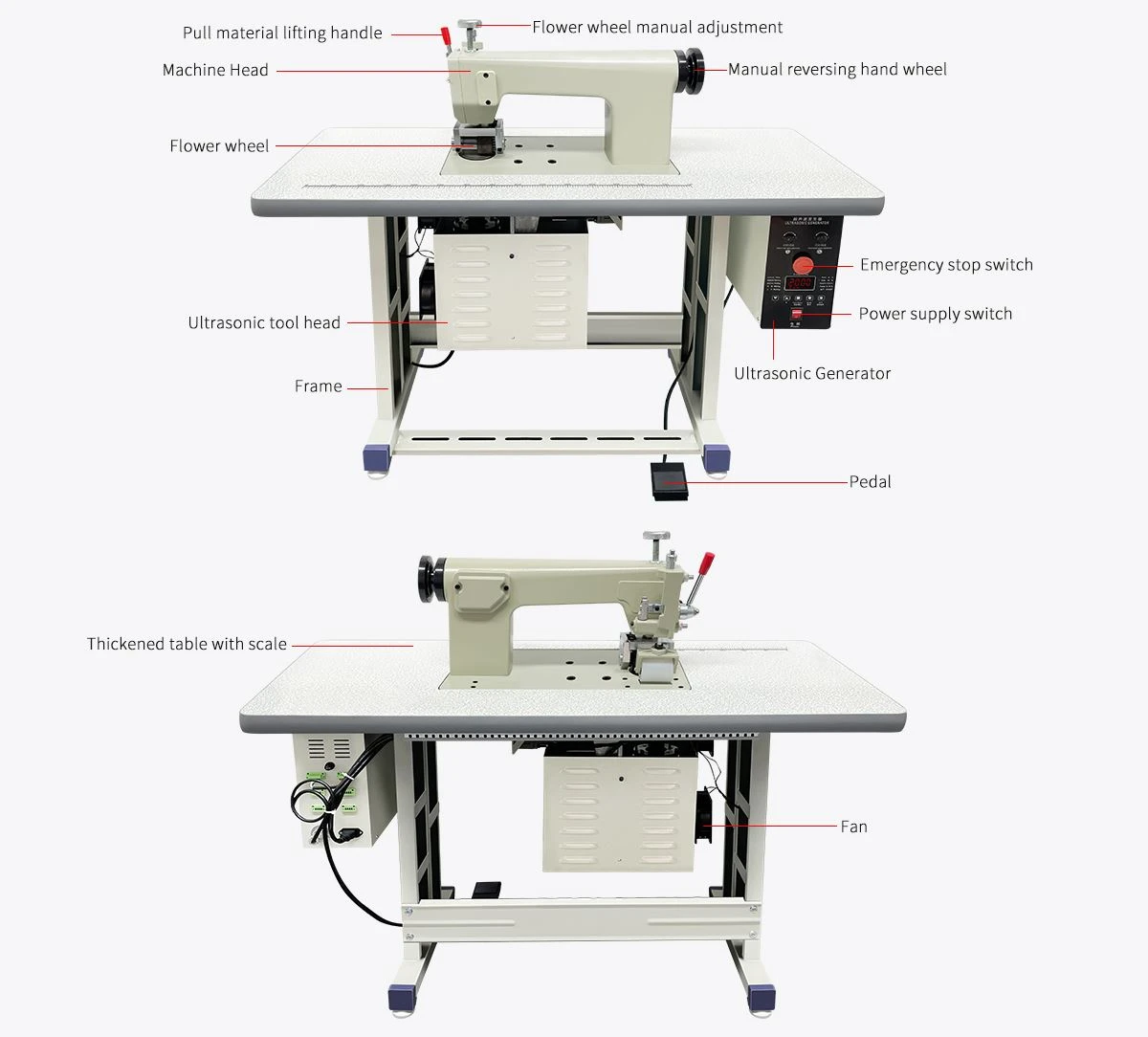

Pillow Cover Ultrasonic Sewing Machine
X30 is a manual high-power ultrasonic lace machine. The core components composed of an intelligent frequency tracking ultrasonic generator, a high-Q transducer, and a wear-resistant tool head have good performance when used in cutting, welding, and stitching. Dual-motor drive system, adjustable speed, automatic frequency tracking ultrasonic generator drive, manual pressure adjustment, multiple selection of flower wheels and abnormal alarm function.....
Pillow Cover Ultrasonic Sewing Machine is an efficient ultrasound sewing and embossing equipment. It is mainly used for hemming, welding, melting cutting and embossing of synthetic fiber fabrics. The production efficiency of the machine is high, and there is no need for needle and thread accessories during processing. The processed products have good water tightness, smooth melting surface without burrs, and good hand feeling. The machine is widely used in clothing, toys, food, environmentally friendly non-woven bags, woven bags, surgical gowns, protective clothing, masks and other industries.
Pillow cover ultrasonic sewing machine abandons the traditional needle and thread stitching steps. Instead it uses ergonomic design, which is safe and easy to operate. It can meet the functional requirements of welding products such as waterproof, sealing and antibacterial. Matching flower wheels can improve the strength and beauty of welded products.
Parameters：
| Model | X30-D54 | X30-L110 | X30-L220 |
| Ultrasonic frequency | 20KHz | 20KHz | 20KHz |
| Ultrasonic power | ≤2600W | ≤2600W | ≤2600W |
| Ultrasonic generator | JYD-2900SP | JYD-2900SP | JYD-2900SP |
| Ultrasonic transducer | JYD-5020-6P8-AU | JYD-5020-6P8-AU | JYD-5020-6P8-AU |
| Ultrasonic booster | S20-D54D38H129-H | S20-D54D38H129-H | S20-D54D38H129-H |
| Motor | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz |
| Reducer | / | / | / |
| Working methods | external | built-in | built-in |
| Boding width | ≤16mm | ≤100mm | ≤210mm |
| Flower wheel diameter | 50mm | 50mm | 50mm |
| Max speed | 20m/min | 20m/min | 20m/min |
| Working space | 370mm*155mm | 370mm*155mm | 370mm*155mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1101mm | 1210*600mm*1101mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case | Export wooden case |
| Package size | 1250mm*600mm*1080mm | 1250mm*600mm*1080mm | 1250mm*600mm*1080mm |
| Weight | 88.5KG | 88.5KG | 88.5KG |
Feature：
1. One side scrap and side melting can be carried out at the same time. It makes the side smooth, without roughness and roughness.
2. The holes with different patterns can be cut and the treatment of side melting can be carried out too.
3. Two layers or multi-layers can be melted together. It is not necessary to use thread and needle. This process can replace sewing. Moreover the melted strength is excellent.
4. This machine can cut material for single piece or many pieces at one time. Moreover, it can carry out the treatment of side melting. There is no coarse side.
5. At one time the process of cutting, hole brearking and patter printing can be carried out.
FAQ：
Q: Is it easy to operate?
A: Yes, it is easy to operate,we have teaching video for customer.
Q. Is the incision smooth, will loose edge, black edge?
A: Ultrasonic cutting without loose edge, rough edge and black edge, the cutting effect is good, especially suitable for cutting some high-end products.
Q. Can ultrasound affect the human body?
A: No, it is safely and it will not affect the human body
Q: Can I cut many shapes?
A: Yes, you can cut various shapes and customize the mold.
Q: How long can it last?
A: Can continue to work for 24 hours, pay attention to ventilation and reduce heat.
Q: Does the pillow cover ultrasonic sewing machine's price include tax?
A: Online prices do not include tax, large equipment is not inclusive of freight.
Q: How long is the warranty? Is the machine out of order?
A: Two years warranty, lifelong after-sales service (except for mold, roller and other wearing parts).
Applications：
Curtains, tablecloths, tablecloths, duvet covers, pillowcases, raincoats, lace clothing, ribbons, decorative products, non-woven fabrics, etc.
