Ultrasonic Bra Lace Making Machine
X30 is a manual high-power ultrasonic lace machine. The core components composed of an intelligent frequency tracking ultrasonic generator, a high-Q transducer, and a wear-resistant tool head have good performance when used in cutting, welding, and stitching. Dual-motor drive system, adjustable speed, automatic frequency tracking ultrasonic generator drive, manual pressure adjustment, multiple selection of flower wheels and abnormal alarm function....
Product Description:
The ultrasonic lace machine uses the ultrasonic energy emitted by the ultrasonic generator to generate pressure from the cylinder through the contact friction between the horn and the lace roller, pushing various materials of fabrics out of the machine body, achieving functions such as cutting, splicing, melting, punching, printing, etc. The products made by the ultrasonic bra lace making machine is beautiful and atmospheric. It is lighter and easier to fold, and can weld and cut fabrics synchronously. The ultrasonic machine is not only suitable for continuous sewing, but also for welding and cutting textiles at the same time, and realizes automatic edge banding. When sewing, the ultrasonic energy passes through the material layer to weld the textile, without thermal radiation. Ultrasonic bra lace making machine can cut continuously for a long time. In the process of continuous stitching, heat will not be transferred to the product, which is particularly valuable for cutting and sewing underwear and bra products.
Parameters
| Model | X30-D54 | X30-L110 | X30-L220 |
| Ultrasonic frequency | 20KHz | 20KHz | 20KHz |
| Ultrasonic power | ≤2600W | ≤2600W | ≤2600W |
| Ultrasonic generator | JYD-2900SP | JYD-2900SP | JYD-2900SP |
| Ultrasonic transducer | JYD-5020-6P8-AU | JYD-5020-6P8-AU | JYD-5020-6P8-AU |
| Ultrasonic booster | S20-D54D38H129-H | S20-D54D38H129-H | S20-D54D38H129-H |
| Motor | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz |
| Reducer | / | / | / |
| Working methods | external | built-in | built-in |
| Boding width | ≤16mm | ≤100mm | ≤210mm |

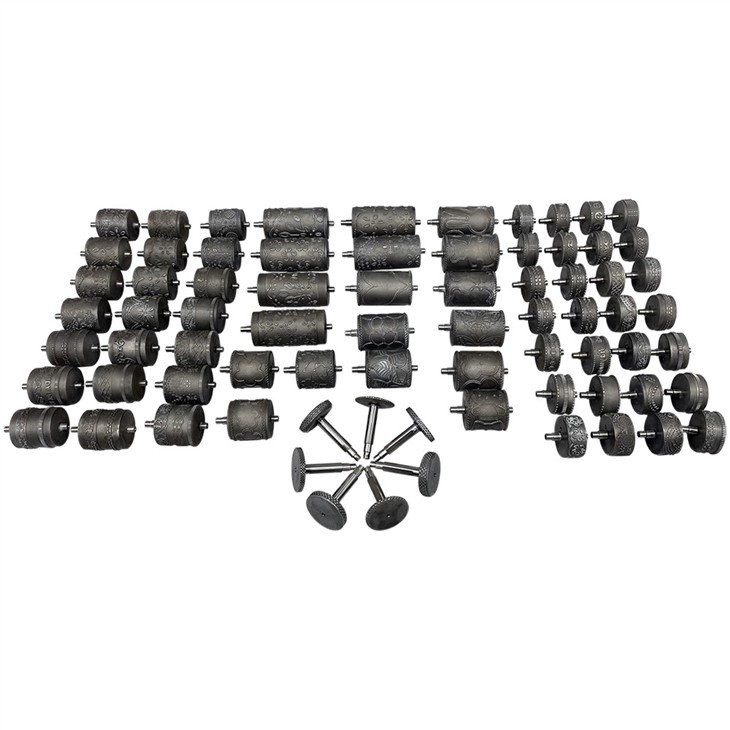

| Flower wheel diameter | 50mm | 50mm | 50mm |
| Max speed | 20m/min | 20m/min | 20m/min |
| Working space | 370mm*155mm | 370mm*155mm | 370mm*155mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1101mm | 1210*600mm*1101mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case | Export wooden case |
| Package size | 1250mm*600mm*1080mm | 1250mm*600mm*1080mm | 1250mm*600mm*1080mm |
| Weight | 88.5KG | 88.5KG | 88.5KG |
Product Features:
1. High Efficiency Production: Utilising ultrasonic technology, it eliminates the need for traditional needle-and-thread stitching, significantly enhancing production efficiency and meeting bulk order demands.
2. Precision Processing: Ultrasonic cutting and welding are completed in a single step, delivering burr-free edges, intricate lace patterns, and consistent product quality.
3. Eco-Friendly & Energy-Efficient: No adhesives or chemical binders are required, ensuring a pollution-free production process that complies with environmental standards while maintaining low energy consumption.
4. Strong Material Adaptability: Compatible with various fabrics (e.g., lace, non-woven, synthetic fibres) without causing deformation or scorching.
5. Exceptional Durability: Ultrasonic welding ensures secure seams, offering resistance to washing and stretching, thereby extending the product's lifespan.
6. Cost Savings: Reduces reliance on traditional sewing consumables (e.g., thread, needles) and labour costs, delivering significant long-term economic benefits.
FAQ
Q: Can you do ultrasonic bra lace making machine OEM?
A:Yes, of course. We can produce according to customer's requirements, just send us your requirements and the design of drawings and samples
Q: Can we be your agent?
A: Of course. We are looking for exclusive agents in countries that are willing to cooperate with us for a long time.
Q: Payment method?
A: Prepay 30% T/T as a deposit, 70% T/T pay for non-standard goods or your requirements before shipment
Q: Delivery?
A:We have a variety of shipping methods, and generally there are more customers who choose to ship by sea.
Q: Warranty of Ultrasonic Bra Lace Making Machine
A:Two-year warranty without any damage. During this period, the factory will be responsible for free repairs or the factory will send new parts instead of damaged parts to customers for free. After the warranty period, the factory will repair or send new parts at cost prices.
We can produce according to customer's requirements, and can provide OEM, please send me an inquiry to get a quote.
Applications
Examples: lace suits, lace lace, flower packaging ribbons, tents, raincoats, umbrellas, tablecloths, handkerchiefs, non-woven masks, motorcycle hats, handicrafts, etc
For more details of Ultrasonic Bra Lace Making Machine, please feel free to contact us !
