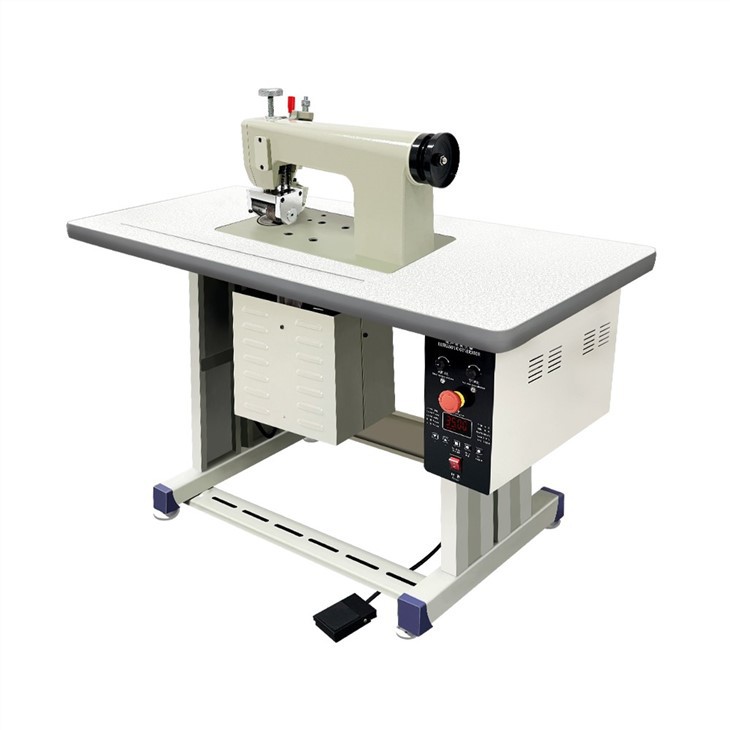

Single Motor Ultrasonic Lace Machine
X30 is a manual high-power ultrasonic lace machine. The core components composed of an intelligent frequency tracking ultrasonic generator, a high-Q transducer, and a wear-resistant tool head have good performance when used in cutting, welding, and stitching. Dual-motor drive system, adjustable speed, automatic frequency tracking ultrasonic generator drive, manual pressure adjustment, multiple selection of flower wheels and abnormal alarm function.....
X30 Single Motor Ultrasonic Lace Machine is a manual high-power Ultrasonic Lace Machine. The machine is composed of intelligent frequency tracking ultrasonic generator, high-Q transducer and wear-resistant cutter head. It has good performance in cutting, welding and sewing. The machine can choose single motor and double motor drive system, and is equipped with automatic frequency tracking ultrasonic generator. The speed and pressure of the machine are adjustable, and the flower wheels are diverse, with abnormal alarm function at the same time.
Parameters
| Model | X30-D54 | X30-L110 | X30-L220 |
| Ultrasonic frequency | 20KHz | 20KHz | 20KHz |
| Ultrasonic power | ≤2600W | ≤2600W | ≤2600W |
| Ultrasonic generator | JYD-2900SP | JYD-2900SP | JYD-2900SP |
| Ultrasonic transducer | JYD-5020-6P8-AU | JYD-5020-6P8-AU | JYD-5020-6P8-AU |
| Ultrasonic booster | S20-D54D38H129-H | S20-D54D38H129-H | S20-D54D38H129-H |
| Motor | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz |
| Reducer | / | / | / |
| Working methods | external | built-in | built-in |
| Boding width | ≤16mm | ≤100mm | ≤210mm |
| Flower wheel diameter | 50mm | 50mm | 50mm |
| Max speed | 20m/min | 20m/min | 20m/min |
| Working space | 370mm*155mm | 370mm*155mm | 370mm*155mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1101mm | 1210*600mm*1101mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case | Export wooden case |
| Package size | 1250mm*600mm*1080mm | 1250mm*600mm*1080mm | 1250mm*600mm*1080mm |
| Weight | 88.5KG | 88.5KG | 88.5KG |
Features
1. The ultrasonic transducer is equipped with a new generation of digital ultrasonic generator to realize the visual operation and control of the operation site
2. Ultrasonic generator: intelligent ultrasonic generator, microcomputer control, intelligent and worry-free
3. Ultrasonic welding core parts: stable performance, high efficiency, stable power output, and work continuously for a long time
4. Operation switch: The operation interface is simple and easy to understand, making it easier for you to get started
5. Mechanical foot switch: operation switch, stepless speed change, faster when stepping deep, slower when stepping shallow
Five advantages
Factory direct sales: manufacturing and sales are integrated, first-hand supply, quality is guaranteed
Processing customization: physical manufacturers can customize products according to customer requirements
After-sales guarantee: customer service is online all day to ensure timely response
Super durable: the raw materials are carefully selected to ensure the high quality of the products
Excellent team: one-stop to provide you with the complete Single Motor Ultrasonic Lace Machine machine and accessories. We sincerely look forward to working with you
FAQ
Q: Why choose us?
A:We are manufacturer with brands parts over 15 years experience major for EU,US market ,can provide the high quality ,efficiency and precision machines , competitive price and good after-sale service.
Markets: exported more than 50 countries and areas,receiving many good comments.
Q: What certifications you have ?
A:A number of export certifications.
Q: What services of Single Motor Ultrasonic Lace Machine you can offer ?
A: (1) Warranty of machine for two years .
(2) Engineers available to service machinery overseas
(3) Free customers training in our plant.
(4) English manual and video for machine using and maintenance.
(5) OEM,ODM is available in our factory.
(6) 24 hours online technical service
(7) Professional advice and rich experience help to choose machine
(8) Any problem before or after delivery, you could find and talk with us anytime.
Applications
Ornament series, Christmas ornaments, shoe flower, bedding, car cover, non-woven fabric, leather lace, pajamas, underwear, pillowcase, bed duvet cover, skirt head flower, hairpin ornaments, ribbon slitting, gift wrapping tape,Combination cloth, mouth cloth, chopstick cover, seat cover.
For more details of Single Motor Ultrasonic Lace Machine, please feel free to contact us !
