Ultrasonic Bra Making Machine
X30 is a manual high-power ultrasonic lace machine. The core components composed of an intelligent frequency tracking ultrasonic generator, a high-Q transducer, and a wear-resistant tool head have good performance when used in cutting, welding, and stitching. Dual-motor drive system, adjustable speed, automatic frequency tracking ultrasonic generator drive, manual pressure adjustment, multiple selection of flower wheels and abnormal alarm function.....
The structural design of the ultrasonic bra making machine has good performance, which can not only improve the production efficiency and product quality, but also significantly reduce the production cost of the product, so that the enterprise can quickly respond to the market demand and further improve the market competitiveness of the product and the comprehensive strength of the enterprise. Ultrasonic bra lace machine is used for non-woven fabrics, which can be automatically cut, and the principle of ultrasonic welding is manually/pneumatically adjusted PLC control. It is an energy-saving, high-efficiency and highly automated ultrasonic non-woven sewing equipment, which has important practical value and broad application prospects.
Parameters:
| Model | X30-D54 | X30-L110 | X30-L220 |
| Ultrasonic frequency | 20KHz | 20KHz | 20KHz |
| Ultrasonic power | ≤2600W | ≤2600W | ≤2600W |
| Ultrasonic generator | JYD-2900SP | JYD-2900SP | JYD-2900SP |
| Ultrasonic transducer | JYD-5020-6P8-AU | JYD-5020-6P8-AU | JYD-5020-6P8-AU |
| Ultrasonic booster | S20-D54D38H129-H | S20-D54D38H129-H | S20-D54D38H129-H |
| Motor | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz |
| Reducer | / | / | / |
| Working methods | external | built-in | built-in |
| Boding width | ≤16mm | ≤100mm | ≤210mm |

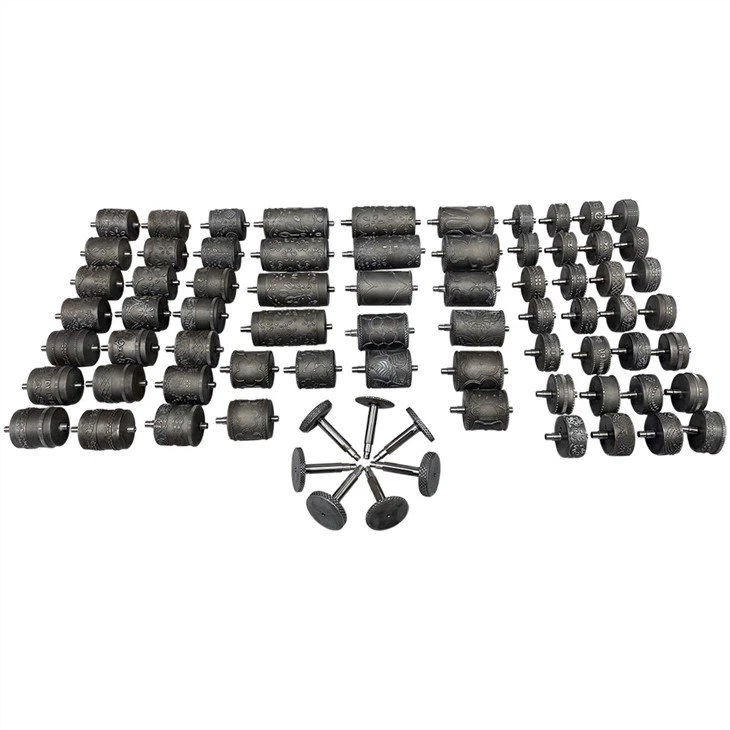

| Flower wheel diameter | 50mm | 50mm | 50mm |
| Max speed | 20m/min | 20m/min | 20m/min |
| Working space | 370mm*155mm | 370mm*155mm | 370mm*155mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1101mm | 1210*600mm*1101mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case | Export wooden case |
| Package size | 1250mm*600mm*1080mm | 1250mm*600mm*1080mm | 1250mm*600mm*1080mm |
| Weight | 88.5KG | 88.5KG | 88.5KG |
Applications:
This Ultrasonic Bra Making Machine is widely used in all kinds of clothing, home decorations, handicrafts, toys, etc. It is suitable for various fabrics, artificial leather, spray cotton, PE paper, PE+aluminum, PE+cloth and other composite materials, thermoplastic foil film and plastic sheet
FAQ:
Q: How can Ultrasonic Bra Making Machine avoid material damage during the production process?
Answer: In the production process, to avoid material damage, special attention should be paid to the following points when operating the ultrasonic bra lace equipment. Firstly, it is necessary to ensure that the material is placed flat and avoid wrinkles or distortions, which helps to ensure the quality of the fusion. Secondly, according to the thickness and type of the material, adjust the ultrasonic power and time appropriately to avoid damage to the material caused by excessive or insufficient energy. In addition, regular inspection of the wear of the flower wheel mold and timely replacement of severely worn molds are also important measures to avoid material damage. Through these measures, it is possible to effectively reduce material damage during the production process and improve the overall quality of bra lace.
Q: What are the maintenance precautions for Ultrasonic Bra Making Machine?
Answer: The maintenance of ultrasonic bra lace equipment is crucial for maintaining its long-term stable operation and extending its service life. In terms of maintenance, the following points need to be noted. Firstly, regularly clean the surface and interior of the equipment to avoid the accumulation of dust and dirt. Secondly, regularly inspect all components and connectors of the equipment to ensure they are securely fastened. In addition, it is necessary to regularly replace severely worn components, such as flower wheel molds, ultrasonic oscillators, etc. At the same time, it is necessary to regularly lubricate and maintain the equipment to reduce friction and wear. During maintenance, attention should be paid to following the operation and maintenance manual of the equipment to avoid improper operation leading to equipment damage or safety accidents. Through scientific and standardized maintenance and management, the stable operation and long-lasting performance of ultrasonic bra lace equipment can be ensured.
Q: How can ultrasonic bra lace equipment meet the demand for mass production?
Answer: In the face of the demand for large-scale production, ultrasonic bra lace equipment needs to take a series of measures to ensure efficient and stable production. Firstly, equipment models with higher power and efficiency can be selected to meet the needs of mass production. Secondly, production efficiency can be improved by optimizing production processes and reducing unnecessary operational steps. In addition, more attention needs to be paid to the maintenance and upkeep of equipment to ensure that it can still maintain stable performance under high load operation. Meanwhile, arranging production plans reasonably and avoiding prolonged continuous operation of equipment is also an important measure to ensure equipment lifespan and production efficiency. Through these measures, ultrasonic bra lace equipment can better meet the needs of large-scale production and achieve efficient and stable production.
For more of Ultrasonic Bra Making Machine, please feel free to contact us !
