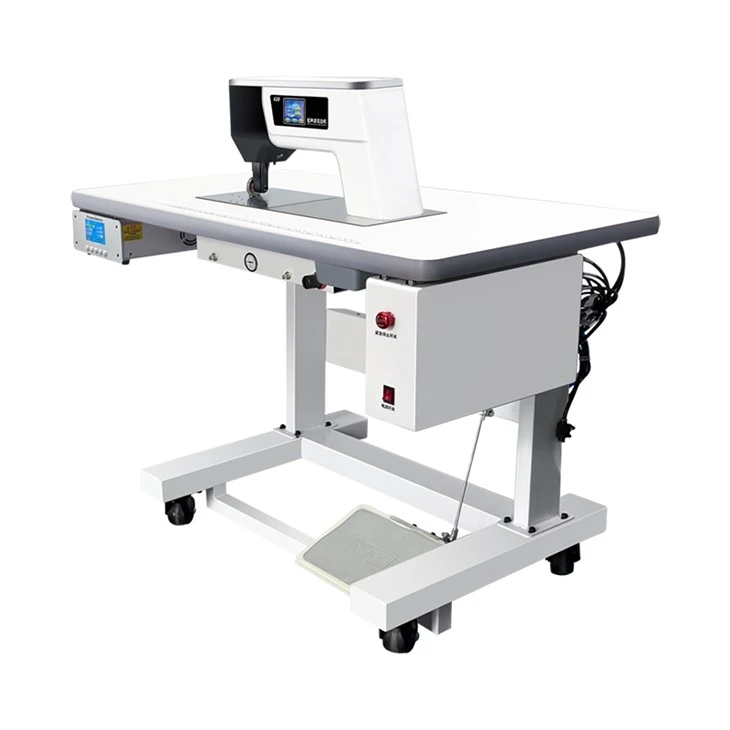

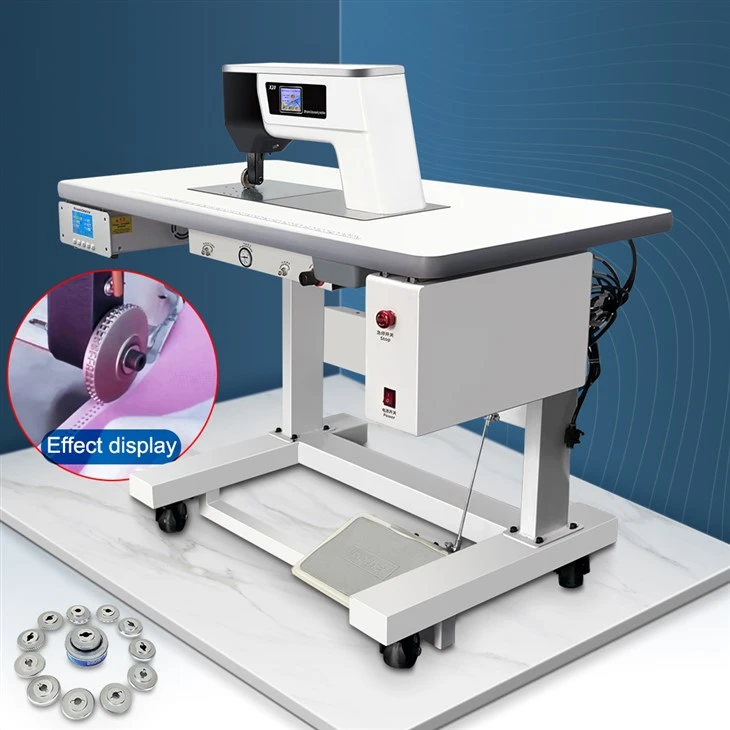

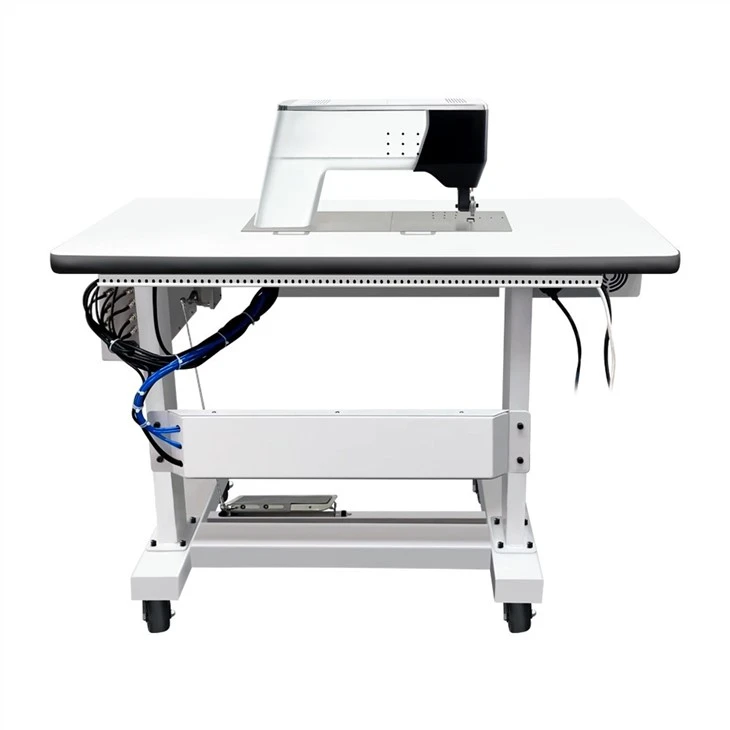

Surgical Gown Ultrasonic Sealing Machine
X20 Ultrasonic Lace Sewing Machinery is a 35khz intelligent ultrasonic welding machine and it equipped with intelligent follow-up ultrasonic generator, high-Q transducer, and wear-resistant tool head. No matter it is used in cutting, welding, and stitching. After welding sewing, the product is flat, wrinkle-free, and highly efficient. The whole size machine has HMI control, speed customization, data storage, pressure adjustment, flower wheel diversity, abnormal alarm and other functions.....
Surgical Gown Ultrasonic Sealing Machine
Firstly, ultrasound plays an important role in the selection and treatment of surgical gown materials. Surgical gowns, as crucial protective equipment in medical environments, require materials that have good breathability, antibacterial properties, liquid resistance, and durability. Through ultrasonic treatment, surgical gown materials can be efficiently fused, cut, and sutured, which not only improves the efficiency and safety of surgery, but also greatly enhances the durability and service life of surgical gowns.
Secondly, ultrasound technology has brought higher precision and efficiency to the manufacturing process of surgical gowns. In the traditional process of making surgical gowns, manual sewing and cutting are often required, which not only results in low efficiency but also makes it difficult to ensure the accuracy and safety of the surgery. Ultrasonic technology can achieve rapid and precise production of surgical gowns through precise vibration and fusion, greatly improving the production efficiency and quality of surgical gowns.
Parameters of Surgical Gown Ultrasonic Sealing Machine
| Model | X20 | X20S |
| Ultrasonic frequency | 35KHz | 35Khz |
| Ultrasonic power | ≤1000W | ≤1000W |
| Ultrasonic generator | JYD-2700S | JYD-2700S |
| Ultrasonic transducer | JYD-3035-4P8-TMF | JYD-3035-4P8-TMF |
| Ultrasonic booster | / | / |
| Motor | Stepper motor + reducer400W 2.7A 1.27NM | Stepper motor + reducer400W 2.7A |
| Reducer | Ratio 1:10 | Ratio 1:10 |
| Working methods | Radially external | Radially external |
| Boding width | ≤8mm | ≤8mm |
| Flower wheel diameter | 45mm | 45mm |
| Max speed | 40m/min | 40m/min |
| Working space | 360mm*130mm | 360mm*130mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1100mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case |
| Package size | 1250mm*700mm*1130mm | 1250mm*700mm*1130mm |
| Weight | 129.3KG | 129.3KG |
Features
1. No need to use needle and thread, save cost, avoid broken needle and thread;
2. Humanized and ergonomic design, simple mechanical structure and convenient operation;
3. Machinable welding lines and curves;
4. Meet the functional requirements of watertight, airtight, and anti-virus (bacteria);
5. Enhance the strength and beauty of processed products through graphic design of floral threads;
6. Control the welding width and improve production efficiency;
7. The speed can be customized, the flower wheel and the tool head can be controlled synchronously, and the maximum speed can reach 40m/min
8. X20 lace machine equipment can store 10 sets of data, with powerful intelligent memory function

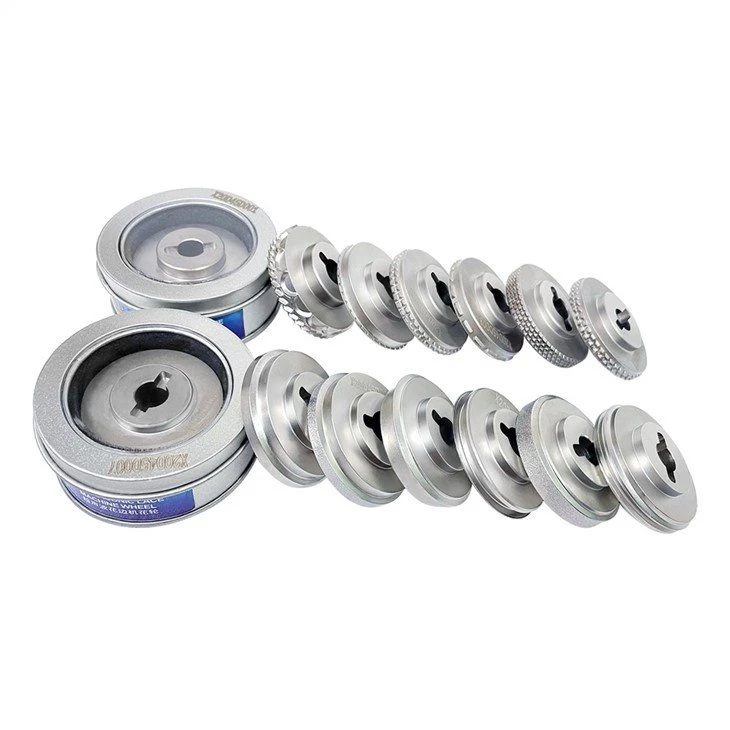

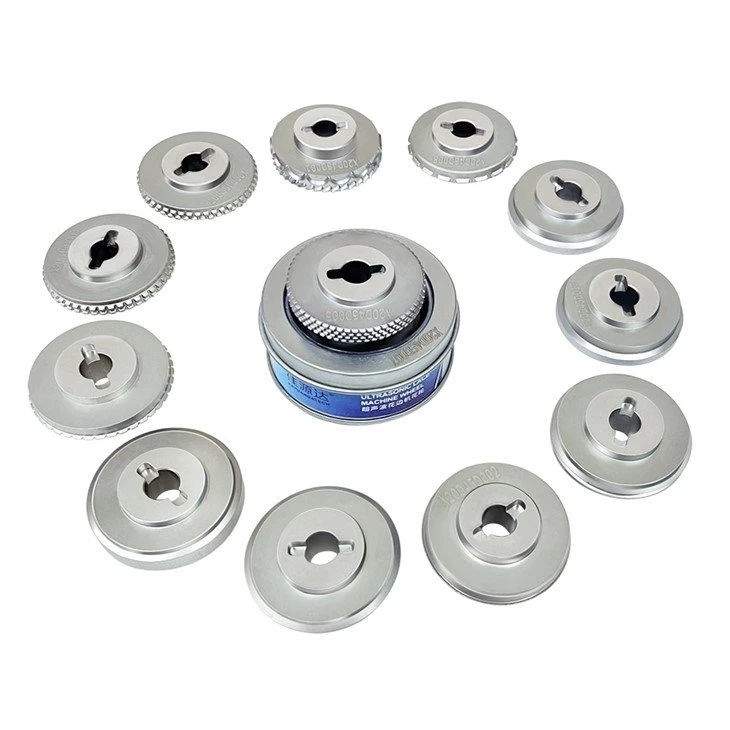

9. Diversity of flower wheels, which can be selected and replaced at will, which is convenient and quick
10. Increase frequency, power, amplitude and other abnormal alarm functions
11. High-quality material manufacturing to ensure the stability of the efficient operation of the product
FAQ
Question: What are the advantages of surgical gown ultrasonic sealing machine?
A: Our ultrasonic sealing machine is a high-efficiency sewing machine. There are three models to choose from, which can meet the sewing needs of various scenes.
Q: How long will it take to ship your ultrasonic lace machine?
A: Generally, it takes 5-7 days to ship, and it takes about 10-15 days for customization, depending on the quantity demand.
Q: Who are we?
A: Shenzhen Jiayuanda Technology Co., Ltd., we are a manufacturer focusing on ultrasonic equipment.
Q: How do we guarantee quality?
A: We will always pre-produce samples before mass production; the finished product will go through multiple rigorous tests and inspections before finally sending out products that satisfy customers.
Q: What can you buy from us?
A: Ultrasonic sewing machine, ultrasonic cutting machine, ultrasonic welding machine
Q: Why choose our Jiayuanda Technology?
A: We have more than 15 years of R&D technology experience, and the company has many professional development engineers, which makes us have strong customization capabilities.
Applications
Surgical Gown Ultrasonic Sealing Machine is suitable for multi-shape lace clothing, lace webbing, various decorations, handkerchiefs, table cloths, curtains, bed sheets and bedspreads, pillowcases, duvet covers, tents, raincoats, gloves, disposable surgical gowns, disposable masks, disposable hygiene products, no spun bags and so on
