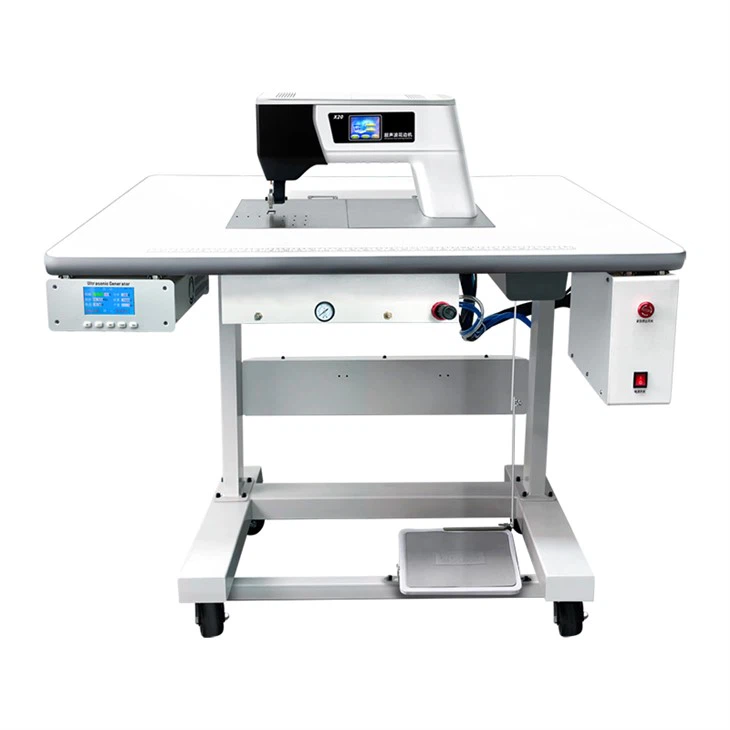

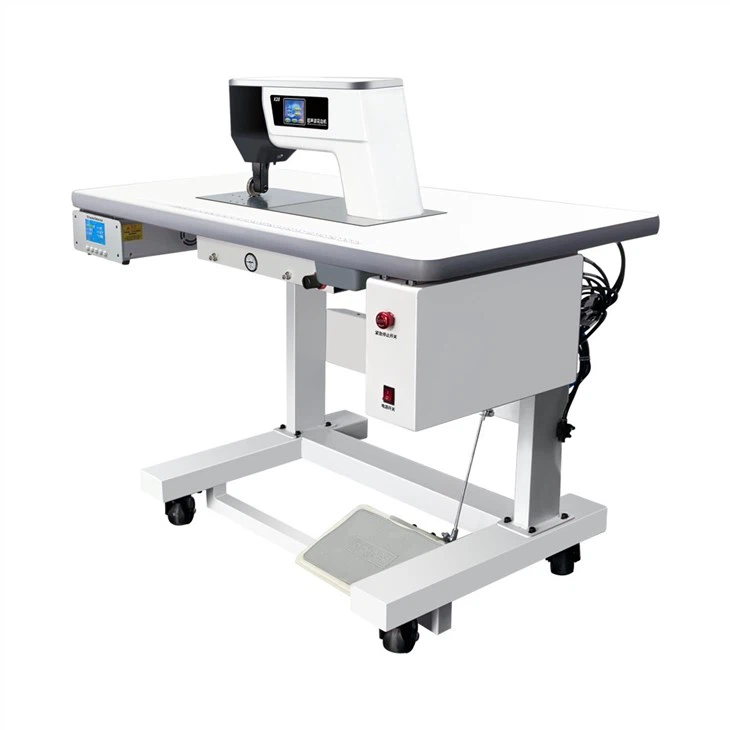

Ultrasonic Nonwoven Fabric Sealer

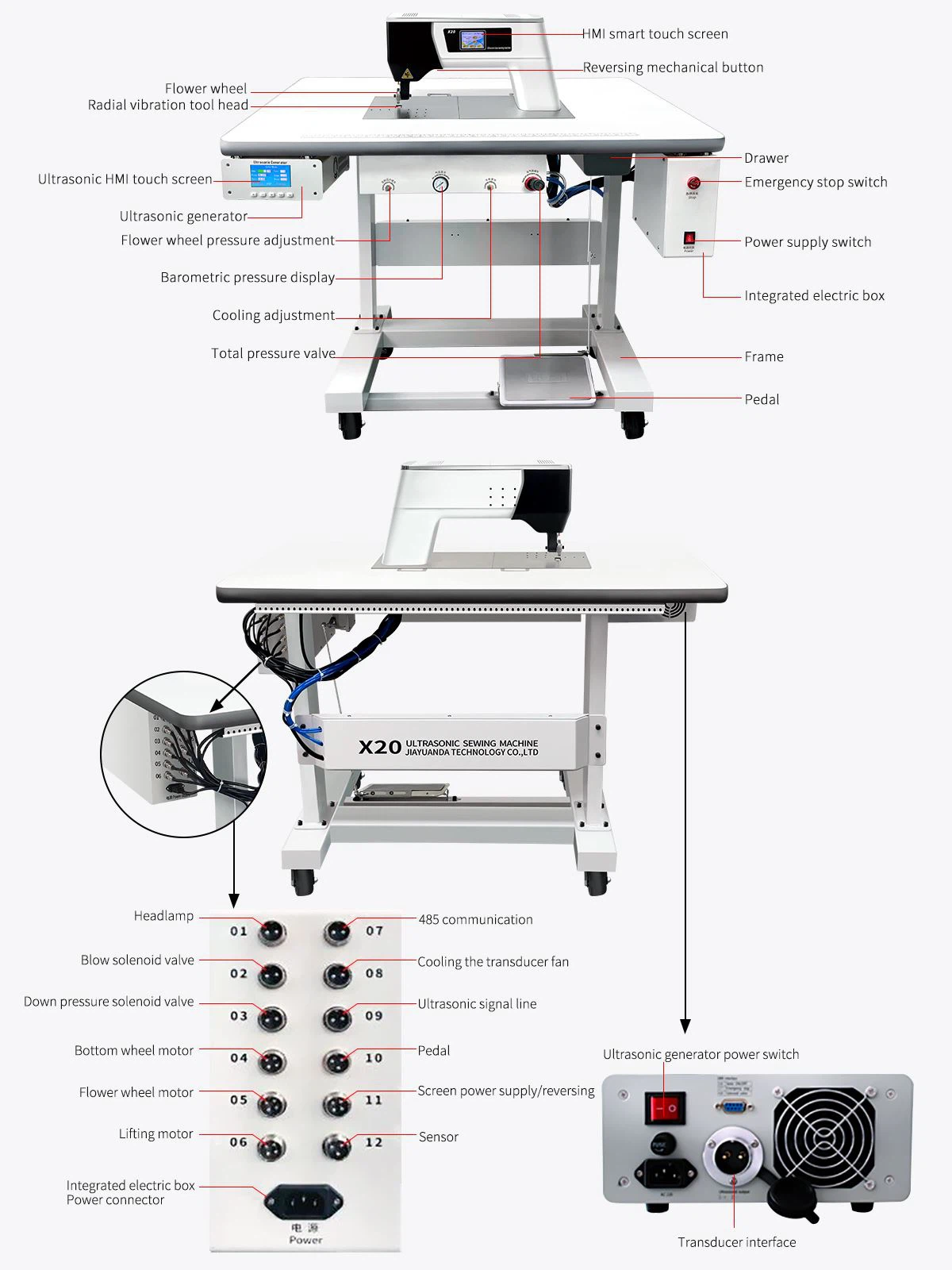

X20 ultrasonic lace machine is a 35khz intelligent ultrasonic welding machine. Intelligent follow-up ultrasonic generator, high-Q transducer, and wear-resistant tool head are composed of ultrasonic core components. No matter it is used in cutting, welding, and stitching, the product is flat, wrinkle-free, and highly efficient. Machine HMI control, speed customization, data storage, pressure adjustment, flower wheel diversity, abnormal alarm and other functions.....
Product Description:
The ultrasonic nonwoven fabric sealer, also known as an ultrasonic non-woven fabric welding machine, features human-machine interface (HMI) control, customisable speed settings, adjustable pressure parameters, and data storage functionality. It supports the replacement of various patterned rollers, offering strong versatility, and is operated via a touchscreen interface with multi-language switching capabilities. Suitable for sealing a wide range of non-woven fabrics, it produces sealed products with a smooth surface, neat edges, and no debris, making it a highly intelligent ultrasonic non-woven fabric sealing solution. Equipped with an advanced human-machine interface (HMI) control system, it allows operators to effortlessly configure precise parameters such as speed and pressure through an intuitive touchscreen, significantly enhancing operational convenience. The machine's robust data storage functionality enables swift switching between different product settings with a single touch, ensuring both production efficiency and consistent product quality.
Parameters of Ultrasonic Nonwoven Fabric Sealer
| Model | X20 | X20S |
| Ultrasonic frequency | 35KHz | 35Khz |
| Ultrasonic power | ≤1000W | ≤1000W |
| Ultrasonic generator | JYD-2700S | JYD-2700S |
| Ultrasonic transducer | JYD-3035-4P8-TMF | JYD-3035-4P8-TMF |
| Ultrasonic booster | / | / |
| Motor | Stepper motor + reducer400W 2.7A 1.27NM | Stepper motor + reducer400W 2.7A |
| Reducer | Ratio 1:10 | Ratio 1:10 |
| Working methods | Radially external | Radially external |
| Boding width | ≤8mm | ≤8mm |
| Flower wheel diameter | 45mm | 45mm |
| Max speed | 40m/min | 40m/min |
| Working space | 360mm*130mm | 360mm*130mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1100mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case |
| Package size | 1250mm*700mm*1130mm | 1250mm*700mm*1130mm |
| Weight | 129.3KG | 129.3KG |
Features of Ultrasonic Nonwoven Fabric Sealer

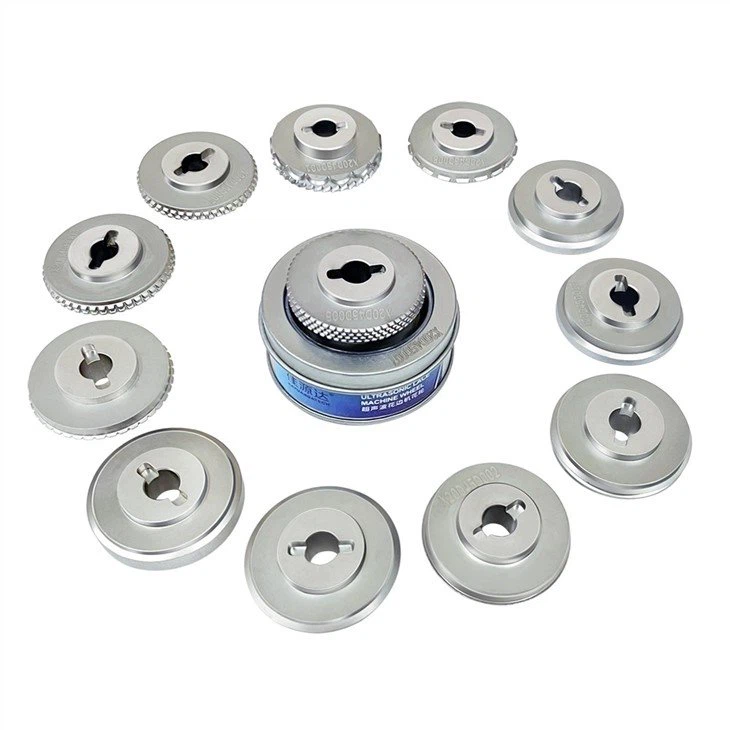

1. Provide different rollers
We can provide you with different flower wheel designs, or you can send us your designs or samples to make the flower wheel.
2. Foot switch design
The machine adopts a foot switch design, allowing workers to control materials by hand, greatly improving production speed.
3. Easy to operate, simple and easy to learn
The machine operates using ultrasonic waves, so we only need to set the sewing speed and sewing power for different materials. The control panel is available in English, and the operation and settings are very simple.
4. Adjustable roller height
The machine adopts pneumatic control to adjust the height of the rollers. Workers only need to step on the pedal, and the roller bracket will move upward, making it easy and fast for workers to replace the rollers or adjust them to the appropriate working height.
5. Powerful power ultrasonic transducer
Using a high-power ultrasonic transducer with a maximum power of 1000W, the machine can achieve a maximum sewing speed of 40M/min, and the speed can be customized.
6. High speed cooling exhaust fan
The Jiayuanda ultrasonic non-woven fabric sealing machine adopts two high-speed cooling exhaust fans, which enable the machine to work for a long time and be durable.
FAQ
Q: Do you accept special designs?
A: Yes, we accept the design and manufacture of products according to customers' special requirements.
Q: How do you make our business long-term team and good relationship?
A: We maintain excellent quality and competitive prices to ensure that our customers benefit.
Q: How strong is the factory?
A: We have 15 years of experience in ultrasonic research and development technology. Multiple export certifications.
Q: How to place an order?
A: Please send your purchase order to us via email, whatsapp or WeChat. We need to understand the requirements and specific information of your order.
Q: Can I see my goods after the goods are completed?
A: Yes, we will provide customers with video inspection after the goods are completed.
Q: What are your advantages?
A: Our own patent, accept OEM, better quality and perfect after-sales service.
Applications
Suitable for applications such as: protective clothing, car clothing, invisible car clothing, motorcycle clothing, PP film, mechanical equipment protective cover, medical equipment cover, PET film, disposable mask, protective clothing isolation gown, laboratory clothing, nurse hat , Surgical caps, doctor caps, surgical kits, maternity kits, first aid kits, diapers, pillowcases, bed sheets, duvet covers, shoe covers, etc.
For more details of Ultrasonic Nonwoven Fabric Sealer, please feel free to contact us !
