PP Woven Bags Ultrasonic Sealing Machine

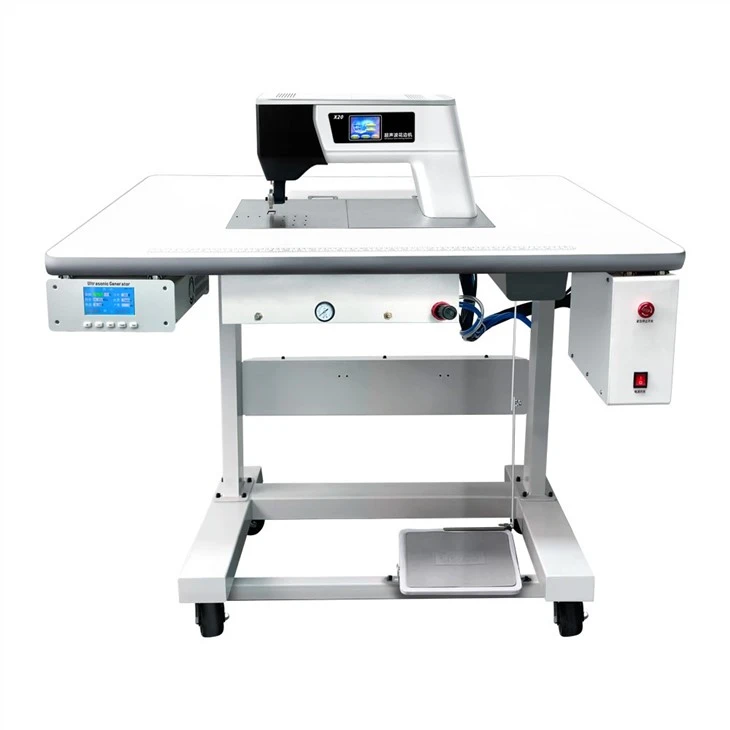

X20 ultrasonic lace machine is a 35khz intelligent ultrasonic welding machine. Intelligent follow-up ultrasonic generator, high-Q transducer, and wear-resistant tool head are composed of ultrasonic core components. No matter it is used in cutting, welding, and stitching, the product is flat, wrinkle-free, and highly efficient. Machine HMI control, speed customization, data storage, pressure adjustment, flower wheel diversity, abnormal alarm and other functions.....
The ultrasonic sealing machine uses high-frequency oscillation to transmit sound waves from the welding head to the welding surface, instantly causing the molecules to friction and reach the melting point, thereby completing the rapid dissolution of the material and completing the welding process of the woven bag. The joint strength is close to that of a whole piece of continuous material. As long as the joint surface of the product is designed to match, its density is very satisfactory. The ultrasonic PP woven bag sealing machine is mainly composed of a smart generator, a high-quality transducer, and a combination of lace rollers made of durable alloy material. It is a new type of smart woven bag with a beautiful surface and no burrs on the surface of the pp non-woven fabric. PP Woven Bags Ultrasonic Sealing Machine adds the fault alarm function to ensure the operation of the equipment under safe environmental conditions.
Parameters of PP Woven Bags Ultrasonic Sealing Machine
| Model | X20 | X20S |
| Ultrasonic frequency | 35KHz | 35Khz |
| Ultrasonic power | ≤1000W | ≤1000W |
| Ultrasonic generator | JYD-2700S | JYD-2700S |
| Ultrasonic transducer | JYD-3035-4P8-TMF | JYD-3035-4P8-TMF |
| Ultrasonic booster | / | / |
| Motor | Stepper motor + reducer400W 2.7A 1.27NM | Stepper motor + reducer400W 2.7A |
| Reducer | Ratio 1:10 | Ratio 1:10 |
| Working methods | Radially external | Radially external |
| Boding width | ≤8mm | ≤8mm |
| Flower wheel diameter | 45mm | 45mm |
| Max speed | 40m/min | 40m/min |
| Working space | 360mm*130mm | 360mm*130mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1100mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case |
| Package size | 1250mm*700mm*1130mm | 1250mm*700mm*1130mm |
| Weight | 129.3KG | 129.3KG |
FAQ
Q: How long will it take us to get the machine?
A: Generally, we choose sea transportation for large automatic machines. Once you place an order, we will arrange delivery as soon as possible.
Q: Do we need to install the machine after we get it?
A: We will send you the shipping video and manual of the machine before shipment to inform you how to use the machine. You can also contact us and we will give you the operation video. Our company has good after-sales service.
Q: Can I paste my LOGO/brand on the machine and complete the product?
Answer: Of course you can. Just inform your needs and send it to us via email.
Q: How about your warranty?
Answer: Our PP Woven Bags Ultrasonic Sealing Machine and other large equipment have a warranty period of 2 years, and all machine parts can be replaced within 2 years (without human intervention) if they are damaged.
Applications
Equipment function: trimming, slitting, perforating, transfer printing, embossing. Applications: Applicable clothing, accessories series, Christmas ornaments, shoe flowers, bedding, car covers, non-woven fabrics, leather laces, pajamas, underwear, pillowcases, bed covers, skirt headbands, hairpin accessories, ribbon slitting , Gift wrapping tape, combined cloth, mouth cloth, chopstick cover, seat cover, coaster, curtain, raincoat, PVE handbag, umbrella, food packaging bag, tent, shoe and hat products, disposable surgical gown, mask, surgical cap , Medical goggles, etc.
For more details of PP Woven Bags Ultrasonic Sealing Machine, please feel free to contact us !
