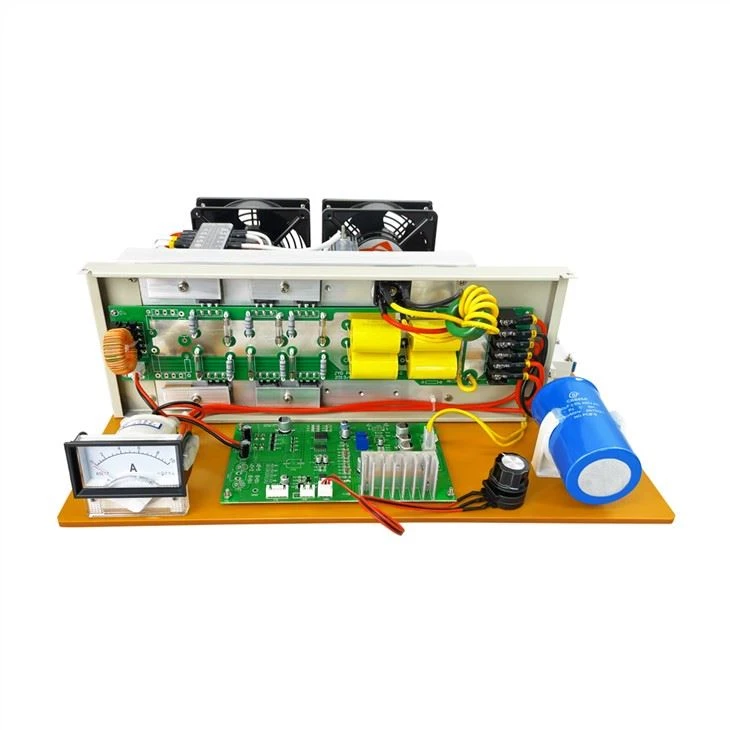

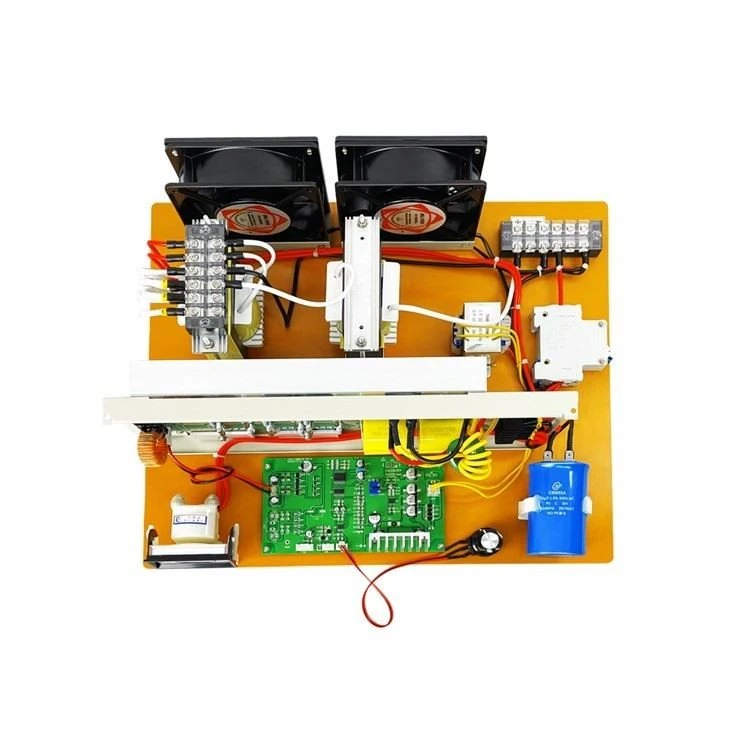

Ultrasonic Cleaner Circuit Board

The above Ultrasonic cleaner circuit board 110v-120v or 220v-240v is available. Please contact us if you have requirements

Ultrasonic cleaner PCB board is the main component of ultrasonic cleaning device, which is used to clean electronic workshops, industrial and mining enterprises, laboratories, hospitals, glass shops, jewelry shops, mobile phone repair shops, families, etc.

First, advantages of ultrasonic PCB generator:

1. It is applicable to single ultrasonic cleaning transducer or less than 6 ultrasonic transducers.

2. Small size, easy to install in the cleaning machine shell.

Second, the characteristics of ultrasonic cleaner circuit board:

1. All power output components IGBT are imported devices, which have the advantages of small size, large power and fast response.

2. With the latest PLC control circuit, the output power is as high as 93%, which greatly improves the ultrasonic cavitation density.

3. The output current is sine wave, which can prolong the service life of frequency converter and generator.

4. Wide range sweep frequency: 20khz-40khz adjustable, applicable to various ultrasonic transducers.

5. Power adjustable function;

6. Current display function.

Specification of ultrasonic cleaner circuit board：

FAQ：

Safety precautions for Tri frequency digital control ultrasonic cleaner

1. When using jiayuanda three frequency digital control ultrasonic cleaner, the power supply must have a grounding device, otherwise the company will not be responsible for any accident.

2. During the cleaning process, the objects shall be put into the grid frame and the cleaning tank at the same time. Do not put the objects directly into the bottom of the cleaning tank that will impact the bottom transducer.

3. The use of appropriate cleaning reagents must be compatible with the stainless steel ultrasonic cleaning tank. Strong acids, bases, volatile and corrosive chemical reagents shall not be used.

4. Corrosive liquid shall not invade the interior of the cleaner, otherwise the company will not be responsible for damaging the cleaning instrument.

5. When cleaning a new object, it is better to do a sample test before cleaning a batch of objects, and then clean a batch of objects.

6. In case of accidental ingestion or eye contact of aqueous solution during cleaning, please immediately wash it with plenty of water or see a doctor in time.

7. The cleaning fluid should be replaced regularly, otherwise the dirt cleaned will aggregate into particles and deposit at the bottom of the cleaning tank, which will weaken the cleaning effect of ultrasound. In addition, many solutions will lose cleaning effect after a certain period of time.

8. The drain hole in the tank shall not be blocked, the water level shall not be less than the minimum water level, and the alcohol solution shall not be heated, otherwise the heater may be damaged due to dry burning.

9. The ultrasonic cleaner circuit board of the ultrasonic cleaner instrument is equipped with a temperature control protection device. When the temperature is too high, the ultrasonic will stop, and it will automatically ultrasonic after cooling.

10. When the working water temperature rises, it is not allowed to reduce the water temperature by adding ice. Sharply reducing the water temperature will lead to unstable performance of the ultrasonic transducer and even damage the ultrasound transducer.

For more details of Ultrasonic Cleaner Circuit Board, please feel free to contact us!
