Ultrasonic Cleaning Plus Generator

Manufacturers typically have various cleaning needs for a wide range of items. They may need to clean parts and components during or at the end of the manufacturing process. In addition, they may need to regularly clean their manufacturing tools and equipment. Parts need to be cleaned before use or containers need to be cleaned before and after filling. Using traditional cleaning methods requires the use and storage of many cleaning systems, chemicals, and scrubbers.

Using ultrasonic cleaning, most cleaning applications can be completed using an ultrasonic system. Even if the application requires different cleaning intensities and the removal of different pollutants, a multi frequency ultrasonic generator may still be an effective and cost-effective solution.

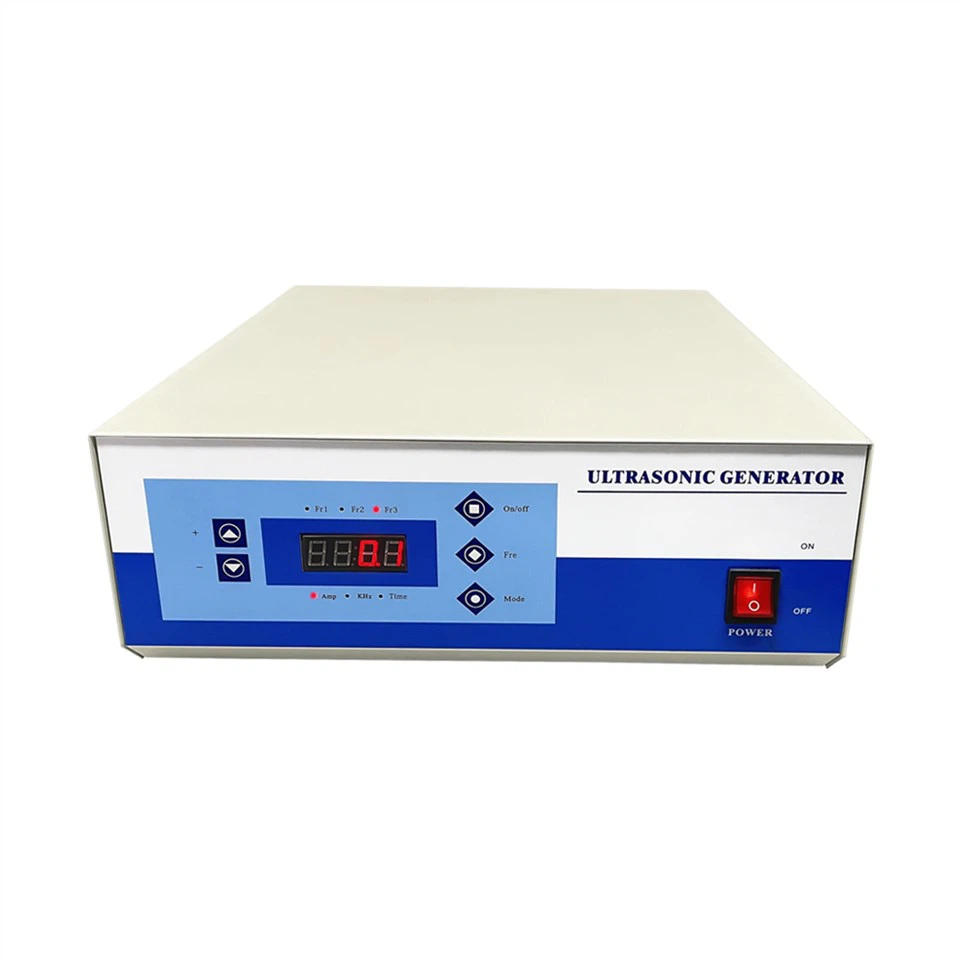

Jiayuanda Technology Company JYD-1500E ultrasonic cleaning plus generator can select 2-3 frequencies according to client requirements to realize different ultrasonic frequency cleaning to the same cleaning product, which can reduce client's cost and enhance the cleaning efficiency of client.

Main features:

1. It adopts international advanced figure pulse for driving;

2. Frequency scanning

3. Over-current protection,

4. Output short-circuit protection

5. Integrated of digital ampere meter,

6. Frequency and PLC remote control.

Specification of Ultrasonic Cleaning Plus Generator

Product details:

FAQ：

How about jyd-1500e Ultrasonic Cleaning Plus Generator fault specification of jiayuanda company?

1. There is no ultrasonic wave. When the power switch is turned on, the switch will turn off automatically.

● Remove the load (sensor) and turn it on again. If the generator fan is running and the indicator light on the drive board is on, it indicates that the load is short circuited. Please check the load. If the switch is still turned off automatically when the load (sensor) is removed and the power is turned on, please conduct further detection.

● Open the machine cover and check whether the power switch is damaged and whether the fuse on the power amplifier board is burnt out. If it burns out, it indicates that the power tube has been damaged. Please replace the fuse, power tube and 22 Ω resistor, and check whether the bridge rectifier is burnt out. Detection method: turn the multimeter to Ω resistance; Connect the black probe to the anode of the bridge rectifier; Connect the red probe to the two AC pins to check whether they are in the on state. If yes, replace the bridge rectifier.

2. There is no ultrasonic wave, the fan is running, and the indicator light on the drive board is on.

● Check whether each connector on the generator is loose or disconnected. If yes, welding. If not, conduct further tests.

3. There is no ultrasonic wave, the fan runs, and the indicator light on the drive board goes out.

● Check whether the power supply of the drive board is damaged. If damaged, replace it.

4. There is ultrasonic wave, overcurrent and abnormality.

● Check whether there is a short circuit inside the step-up transformer. If yes, replace it; If not, conduct further tests.

● Check the load for problems.

5. There are ultrasonic waves. The ultrasonic sound is abnormal and the intensity is poor.

● Use a frequency meter to check whether the output frequency is within the working frequency range of the sensor (in terms of frequency, 28kHz sensor and 40KHz sensor should be 26khz-31khz and 36khz-41khz respectively). If the difference is too large, return to the normal working frequency through the modulation frequency potentiometer.

● Observe the current in the ammeter. If the current is less than the rated current, first check whether the ultrasonic sensor is damaged, such as sensor falling off, sensor chip cracking, adhesive breaking and connecting wire short circuit. Generally, if the current drop is very small or does not drop at all, the sound is normal, and the ultrasonic intensity drops sharply, it may be that the adhesive of the transducer is broken. The judgment method is to observe the gluing condition of the connection between the sensor and the steel plate. Under normal circumstances, the surface should be smooth. If there is a small crack, it may be the glue cracking, so it is necessary to disassemble the sensor to re bond. If the current drops sharply, mainly check whether the wire is open or whether the sensor chip is broken.

● Generally, working voltage, cleaning object, water temperature and cleaning fluid type will affect the ultrasonic intensity. Especially when stirring violently, the ultrasonic wave will weaken and will not return to normal until dozens of seconds later.

For more details of Ultrasonic Cleaning Plus Generator, please feel free to contact us !
