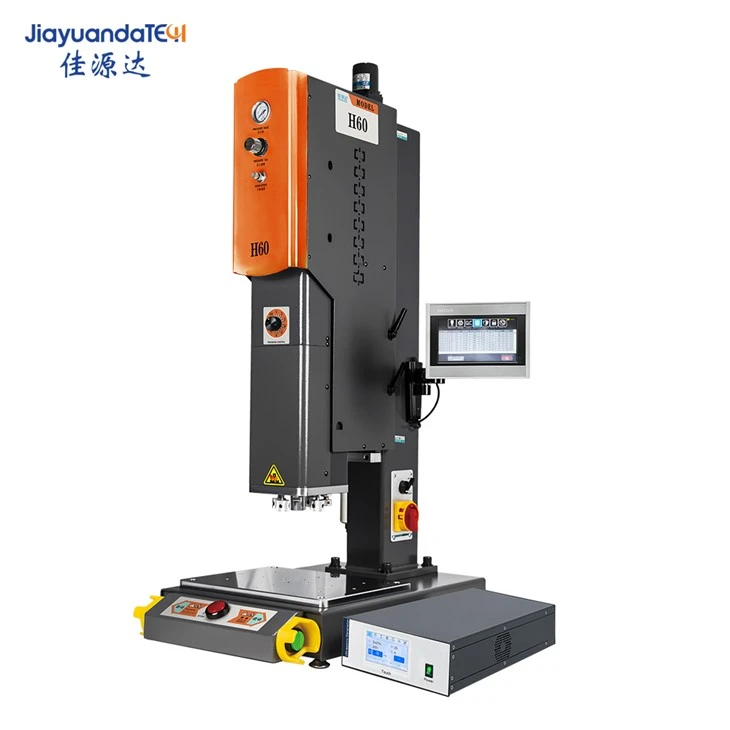

Digital Ultrasonic Plastic Welding Machine
Jiayuanda Ultrasonic plastic welder machine-H60/60S. It is an intelligent digital ultrasound welding machine researched and developed by us. We use perfect and optimized real-time phase-locked loop tracking technology in developing this series, which achieves more stable and reliable operation. Flexible human-machine interface configuration gains more flexible product application....
Digital ultrasonic plastic welding machine adopts unique welding technology and uses high-frequency ultrasonic vibration to weld two pieces together. These are usually used for welding thermoplastic materials. At now, the ultrasonic welding machines are suitable for many industries, such as automobiles, and it help to assemble large plastic parts a lot. In addition, it can also weld electrical components, such as air duct, lamps, steering wheel, door panel, instrument panel, etc. Ultrasonic plastic welding machine is also suitable for computer and electrical, packaging, aerospace, automotive and other industries. These devices have a fast welding process and a fast fixed time.
Product Parameter
Products | H60 Series digital ultrasonic plastic welding machine | |||||||
Model No. | 15K-4200W | 15K-3200W | 15K-2600W | 20K-3000W | 20K-2500W | 30K-1200W | 35K-1200W | 40K-800W |
working frequency | 15KHZ | 15KHZ | 15KHZ | 20KHZ | 20KHZ | 30KHZ | 35KHZ | 40KHZ |
Working power | 4200W | 3200W | 2600W | 3000W | 2500W | 1200W | 1200W | 800W |
Working voltage/gas source | 220V±10% / 0.2～0.7Mpa | |||||||
Welding stroke | 100MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM |
Daily maintenance of Digital Ultrasonic Plastic Welding Machine：
1>Keep ultrasonic welder machine parts well ventilated.
2>Regularly check whether the wire connector is loose.
3>The bottom mold of the welding head and the workpiece shall always be kept clean.
4>Lift grooves and screws shall be regularly smeared with yellow grease and kept clean
5>Keep the air circulation in the workplace, and the ambient temperature should not be too high. (40 ° C or less)
6>Clean the air filter regularly with detergent or water and do not use volatile solvents.
7>Wipe the welding machine regularly, but do not use liquid for cleaning. Do not place heavy objects or liquids above the vibration generator box.
8>When transporting the welder machine, the ultrasound vibration generator box shall be separated from the machine body (remove the cable socket), and be careful during handling to avoid impact.
9>When the ultrasonic plastic welder hasn't in use for a long time, please clean the machine and important parts, like wipe them with oil, cover the machine envelope, and place them in a dry and ventilated place.
10>Regularly open the cover of the ultrasonic generator control box to clean the dust with a clean air gun without moisture.
For more details of Digital Ultrasonic Plastic Welding Machine, please feel free to contact us ！！！
