Supersonic Plastic Bonding Machine

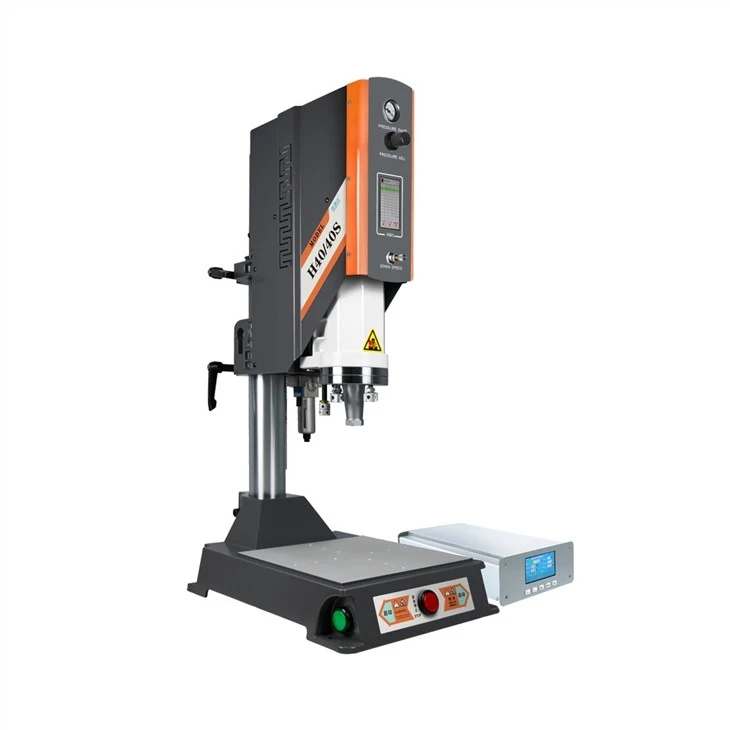

Jiayuanda Ultrasonic plastic welding machine-H40/H40S. It is an intelligent digital ultrasonic plastic welder machine researched and developed by us. We use perfect and optimized real-time phase-locked loop tracking technology in developing this series, which achieves more stable and reliable operation. Flexible human-machine interface configuration gains more flexible product application....
We are offering sonic plastic bonding machine that could bring a beautiful and high efficiency welding. Supersonic plastic bonding machine transmit ultrasonic energy through welding parts to welding area, local high temperature will happene due to high acoustic resistance between two welding interface places. In addition, because the heat cannot spread in time, the heat gathered in the welding area will spread rapidly, and the two parts of the contact area will fuse, plus a certain pressure, so that the fusion becomes one. When the ultrasonic stops working and maintains the pressure to maintain solidification, a strong molecular chain is finally formed to achieve the purpose of welding. The welding strength can be close to the strength of the raw material body.
Product Parameter
Products | H40 series Supersonic Plastic Bonding Machine | ||||||||
working frequency | 15KHZ | 15KHZ | 15KHZ | 20KHZ | 20KHZ | 28KHZ | 30KHZ | 35KHZ | 40KHZ |
Working power | 4200W | 3200W | 2600W | 3000W | 2500W | 1200W | 1200W | 1200W | 800W |
Working voltage/gas source | 220V±10% / 0.2～0.7Mpa | ||||||||
Welding stroke | 100MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM |
Dimensions mm | 750*900*1900 | 650*750*1880 | 390*630*1050 | 650*750*1880 | 390*630*1050 | ||||
Net weight | ≤260KG | ≤150KG | ≤85KG | ≤150KG | ≤85KG | ||||
Operation interface | 4.3 inch touch screen | ||||||||
Product feature and application
● Classical analog type ultrasonic, simple operation.
● Welding by time, delay time, weld time and hold time.
● Quick application changeover, high welding seam strength.
● Suitable for high cadences and short cycle times production needs.
● Solid-steel structure design can last for multiple decades.
● Imported Pneumatic parts guarantee the stable welding.
● High quality transducer and booster are durable and stable.
● Three levels self-protection are provided: Over-Current, Frequency Deviation, Over-Temperature.
FAQ
Q: Are you a manufacture?
Yes, we are manufacture, all machines are ourself design and manufacture, we can provide customize service according to your requirement.
Q: Where is your factory? Can I visit your factory？
Our factory is located in Dongguan which near Shenzhen and Guangzhou. We are warmly welcome you to visit our factory, we can pick you up when you come to Dongguan or Shenzhen airport or Humen fast train station.
Q： How to buy your supersonic plastic bonding machine ?
Please send me inquiry from my website, after confirm with machine model and price, we will sign a PI to confirm our order, when we get your first deposit start manufacture machine, when we got your full payment arrange packing and shipping to you..
Q： What about your warranty?
Our warranty is 1 years, and full life technology service.
Q： How long we will get the supersonic plastic bonding machine ?
Delivery time up machine machine model, standard machine normally can shipping out within 10days, special machine up to our PI confirmed delivery date. And after shipping you just need wait the ship container arrived to you.
Q： Are we still need to install the machine after we got?
All of machine already testing ready, and all parameter is setted ok before we deliver to you, also we can send you video and manual to teach you how to use the machine.
Q： How can you guarantee we receive a good quality?
First, we have seriesly inspection process department to control the quality. When the machine was finished,we should send you the inspection video and pictures. You can come to our factory to check and inspect the machine with your sample raw material.
