Ultrasonic Welding Medical Membranes

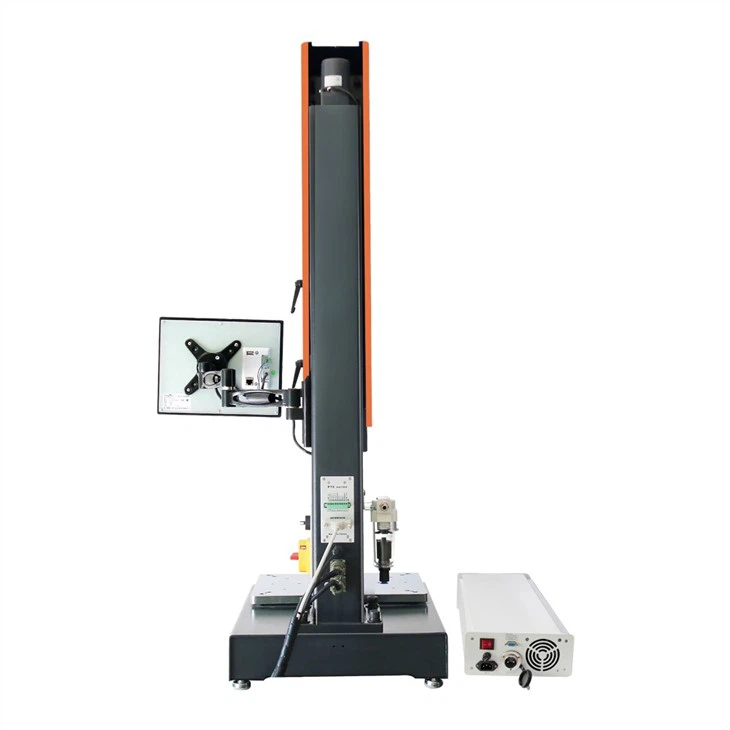

Jiayuanda Ultrasonic Plastic Welding Equipment-H80/80S. It is an intelligent digital ultrasound welding machine researched and developed by us. We use perfect and optimized real-time phase-locked loop tracking technology in developing this series, which achieves more stable and reliable operation. Flexible human-machine interface configuration gains more flexible product application....
The internal composition of ultrasonic welding medical membranes machine is complex. It mainly consists of pneumatic transmission system, control system, ultrasonic generator and acoustic system to realize plastic welding
|
Products |
H80 series Ultrasonic Welding Medical Membranes |
|||||
|
Model No. |
15K-3200W |
20K-3000W |
35K-1200W |
15K-3200W-P |
20K-3000W-P |
35K-1200W-P |
|
working frequency |
15KHZ |
20KHZ |
35KHZ |
15KHZ |
20KHZ |
35KHZ |
|
Working power |
3200W |
3000W |
1200W |
3200W |
3000W |
1200W |
|
Working voltage/gas source |
220V±10% / 0.2～0.7Mpa |
|||||
|
Welding stroke |
100MM |
100MM |
100MM |
100MM |
100MM |
100MM |
Product feature:
1. Small size, simple operation and fast cleaning
2. Using module integrated circuit, strong power output
3. Built-in fully automatic protection circuit, safe to use, stable and reliable work
4. The welding surface is firm, strong, beautiful and environmentally friendly
5. It can change different ultrasonic welding angles according to the size of riveting points and welding requirements of products to be welded, which is fast and convenient.
FAQ:
Q: Causes of welding distortion in ultrasonic welding medical membranes machine
1) The body and the object to be welded or the angle or radian cannot match each other, which may also be caused by the error of multiple die cavities;
2) The wall thickness of the product is thin (within 2m / M) and the length exceeds 60m / m
3) The product is deformed and distorted due to injection molding, injection molding pressure and other conditions;
Q: What are the methods to improve welding distortion?
1) Reduce the pressure (the pressure is below 2kg);
2) Reduce ultrasonic welding time (reduce strength standard);
3) Increase the hardening time (at least 0.8 seconds);
4) Analyze whether the upper and lower ultrasonic modes can be locally adjusted (if not necessary);
5) Analyze the main causes of product deformation and improve it.
For more details of Ultrasonic Welding Medical Membranes, please feel free to contact us !
