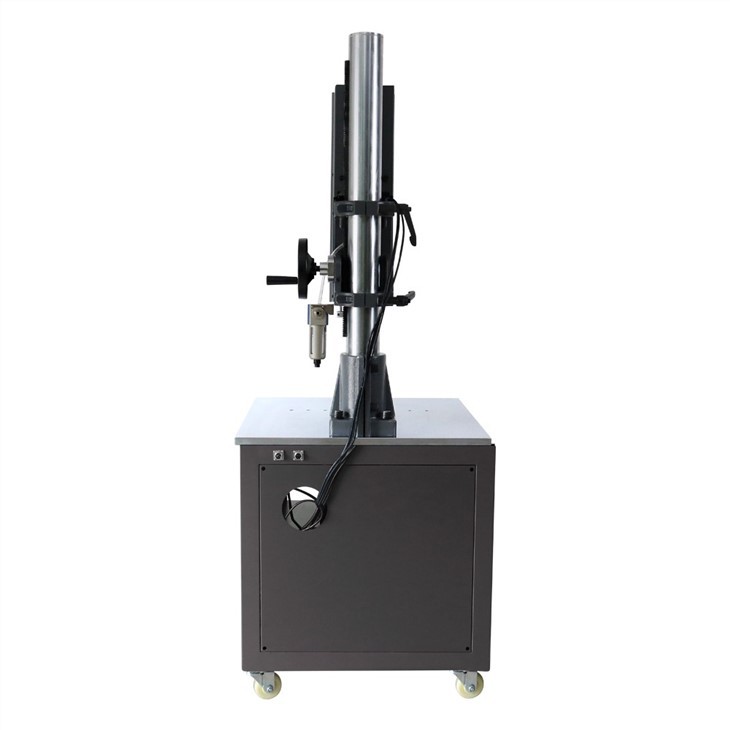

Ultrasonic Plastic Bonding Machine

The ultrasonic welding joint generates ultrasonic vibration and then transmits it to the plastic processing parts. The two plastic joints produce strong friction under the action of ultrasonic. The friction melts the plastic joint and then fully engages. The technology has the advantages of fast speed, firm welding and, more importantly, automatic processing of plastic products. Plastic can be welded, embedded, formed, riveted, welded, cut and sewn by ultrasonic plastic bonding machine.

1.The strong and stable power ultrasonic welding transducer

2. The grading rod is made of titanium alloy, which is firm and durable;

3. The vertical rod is rectangular and the guide shaft is straight, which can be finely adjusted;

4. High quality power tube is adopted to ensure stable ultrasonic output power;

5. The bottom plate adjustment structure is adopted, and the adjusted mold is easy to operate;

6. Precision ball bearing, air pressure frame and simple die position;

7. It can produce American alloy aluminum molds，and it can be used in one machine only by replacing the welding joint.

Product parameter

Features:

● The automatic frequency modulation function enables the ultrasonic generator to automatically track and compensate the frequency change of the welding head.When the temperature is too high, if there are wear or foreign matter on the surface of welding head, this frequency change will occur.

● Built-in automatic constant-amplitude system, automatic compensation for different air pressure changes and voltage fluctuations, stepless adjustment of ultrasonic amplitude from 50% to 100%, to meet the requirements of different welding workpieces.

● Using IGBT for power amplification, the reaction is fast, which is more than 100 times faster than the traditional silicon power tube, so the protection function is better.

● Fast welding speed, welding of high strength, good sealing,

● Instead of the traditional welding / bonding process, it is low-cost, clean, pollution-free and does not damage the workpiece.

● Stable welding process, easy operation, easy maintenance.

● Light weight, no-load resonance, no need to adjust the welding head frequency.

● Aluminum/titanium radial pole, sonic, strong stability.

● This ultrasonic plastic bonding machine is equipped with cylinder and solenoid valve, with stable performance.

FAQ:

1. How can I install the ultrasonic plastic welder and operate it?
Our machine is easy to install and convenient to operate. We will send you English version manual, videos, photos to let you know how to do it. Meanwhile we also support free online service for you. Just tell us what you need and what problems happen. We will give you the best solutions within 24hrs. Also we can provide engineer overseas service.
2. How can you ensure the machine quality?
The accessories in the machine are imported from Japan, Germany, Korea and so on. Our goal is to win the customer with best quality. All our workers in factory has more than 5 years experience in this field. And we will test and check the machine again before shipment.
3. How can I do if theultrasonic plastic bonding machine breaks down?
Welcome to contact us directly if the machine breaks down, we have professional technology team 24hrs online. We can give you the solutions in the first time to ensure the machine work normally again.
