Ultrasonic Riviting Plastic Spot Welder

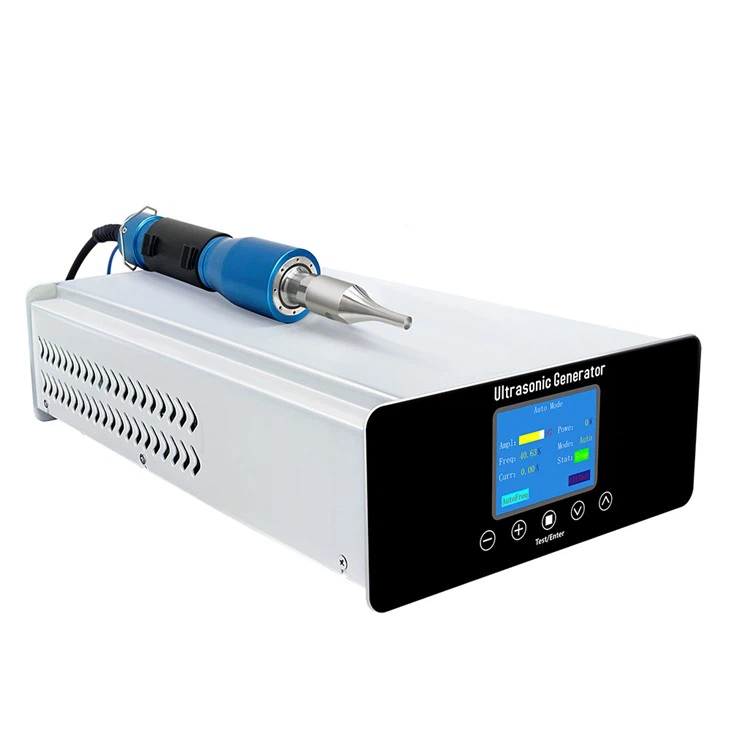

Jiayuanda handheld ultrasonic welding machine W10/W10S is also called the handheld ultrasonic spot welding machine. It consists of an ultrasonic generator, a shell (direct grip type), an ultrasonic transducer and an ultrasonic welding joint. It is a movable ultrasonic manual welding equipment that can be easily used by tightening the mold. W10 is driven by a digital circuit ultrasonic generator, which is simple to operate and can automatically track the optimal resonant frequency to ensure that the ultrasonic generator, transducer and welding joint are in the best working condition. It has multiple abnormal protection functions such as over-current alarm, load over-voltage, over temperature, load error, frequency error, over power consumption, welding joint, transducer, etc., ensuring safety....
The structure of ultrasonic spot welding machine mainly includes ultrasonic welding generator, ultrasonic welding head, ultrasonic oscillator, ultrasonic amplitude transformer, etc.
Main features:
1. The ultrasonic welder system allows welding of fabric edges in one operation! Our technology is based on the principle of piezoelectricity and is used to convert electrical signals in mechanical vibration.
2. These oscillations will be amplified by boosters and converters to produce shocks. The transducer of ultrasonic driven plastic spot welding machine converts electricity into high-frequency mechanical vibration. The active components are usually piezoelectric ceramics. Supercharger (optional) is used as amplitude transformer. Amplitude amplification or reduction is achieved by booster.
3. Sonotrode or horn is the active part of ultrasonic device. The Ultrasonic Riviting Plastic Spot Welder will melt the fibers in the fabric only by mechanical action (hammering), so as to achieve very clean and flexible melting without any combustion or color change. Sonar electrodes and counter tools will be designed to suit the operation to be performed.
4. The simplest way to weld thermoplastic materials is to use ultrasonic manual welding equipment. This hand ultrasonic welding machine is especially suitable for single product processing, small batch production and maintenance. Whether it is caulking, swaging, riveting, or spot welding, ultrasonic manual welding equipment is easy to use. It provides variable power rating and can be equipped with all types of traditional ultrasonic electrodes.
| Model | Ultrasonic frequency | Ultrasonic power | Ultrasonic generator | Ultrasonic transducer | Ultrasonic horn | Package size | Package weight |
| W10 | 28KHZ±1KHZ | 2900SP-W | ≤300W | JYD-2528-4P8-ARF | ∅10 | 540X340X290 | 8.5KG |
| W20 | 30KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3030-4P8-TMUK | ∅10 | 540X340X290 | 8.6KG |
| 35KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3035-4P8-TMUF | ∅10 | 540X340X290 | 8.6KG | |
| 40KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3040-4P8-TMUF | ∅10 | 540X340X290 | 8.6KG | |
| W20S | 30KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3030-4P8-TMUK | ∅10 | 540X340X290 | 8.7KG |
| 35KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3035-4P8-TMUF | ∅10 | 540X340X290 | 8.7KG | |
| 40KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3040-4P8-TMUF | ∅10 | 540X340X290 | 8.7KG | |
| W30 | 20KHZ±1KHZ | 2900SP-W | ≤1500W | JYD-3820-4P8-AMUK | ∅20 | 540X340X290 | 8.8KG |
| 28KHZ±1KHZ | 2900SP | ≤1500W | JYD-3828-4P8-AQ | ∅20 | 540X340X290 | 8.8KG |
Solution to the malfunction of Ultrasonic Riviting Plastic Spot Welder
1. For faulty ultrasonic plastic welding machines, do not rush to start, first inquire about the process and phenomenon of the malfunction.
2. First check whether the repaired ultrasonic equipment has obvious maintenance history, Ultrasonic welding, ultrasonic mold temperature, service life, etc., and then check the inside of the machine.
3. Before dismantling, remove the surrounding faults and determine the internal faults before removing the fault factors. Otherwise, the ultrasonic spot welding machine may be blindly dismantled, causing the equipment to deteriorate.
4. Power on test, listen to its sound, touch, measure parameters, identify faults, and perform maintenance.
5. Clean and repair the ultrasonic welding machine. For severely polluted electrical equipment, first clean its buttons, wiring points, and contact points, and check whether the external control points have failed to make keys;
Many faults are caused by dirt and conductive dust, and can usually be eliminated once cleaned.
FAQ
Q: Do you have any MOQ?
We set different MOQ for different products.
Q: What is your lead time?
It depends on customers' requirement and quantity.
Q: Can you produce according to samples or drawings?
Yes, we can produce by your samples or technical drawings.
Q: How do you guarantee your Ultrasonic Plastic Spot Welder quality?
We take delivery test with professional Inspection equipment before shipment.
Q: What countries have you exported?
Our business expanded to all over the world, and our main market are North American, Latin American, East Europe, German, UK, South Asia, Southeast Asia, Taiwan, Middle East.
For more details of Ultrasonic Riviting Plastic Spot Welder, please feel free to contact us !
