Portable Ultrasonic Welding Machine

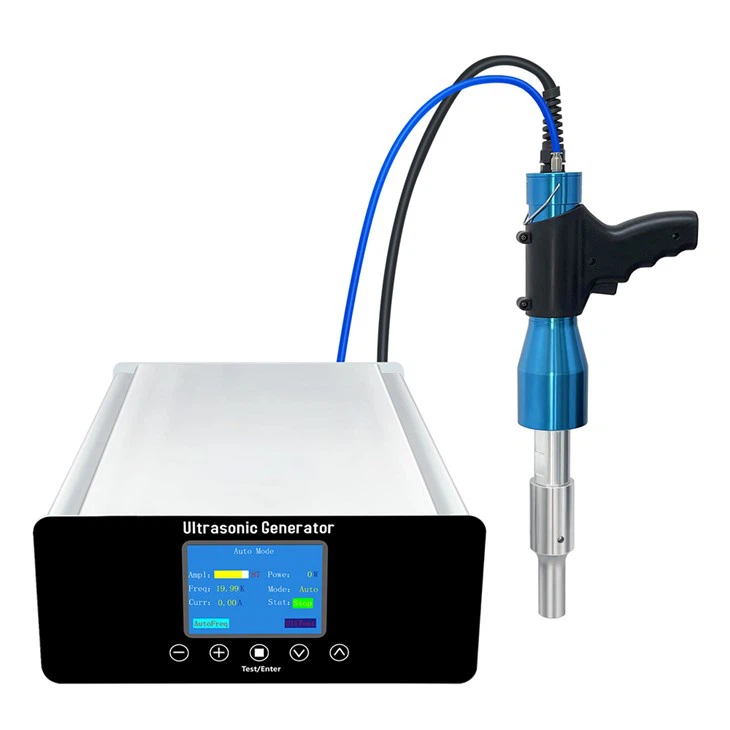

Jiayuanda W20/W20S series of handheld ultrasonic welding machine is also called handheld ultrasonic spot welding machine. It is composed of ultrasonic generator, shell (direct grip or pistol type), ultrasonic transducer and ultrasonic welding head. It is an ultrasonic manual welding equipment that can be easily used by moving and tightening the mold.It has multiple solutions of 30KHz, 35KHz and 40KHz, which can meet the requirements of different application scenarios.It is driven by digital circuit ultrasonic generator, which is easy to operate. It can automatically track the optimal resonant frequency to ensure that the ultrasonic generator, transducer and welding joint are in the best working condition. It has multiple abnormal protection functions such as over-current alarm, load over-voltage, over temperature, load error, frequency error, over power consumption, welding joint, transducer, etc. to ensure safety....
Portable ultrasonic welding machine is especially suitable for large plastic parts or parts with complex geometry or difficult to reach the connection surface. Generally, ultrasonic welding equipment is divided into ultrasonic plastic welding machine, ultrasonic metal welding machine and ultrasonic spot welding machine...
| Model | Ultrasonic frequency | Ultrasonic power | Ultrasonic generator | Ultrasonic transducer | Ultrasonic horn | Package size | Package weight |
| W10 | 28KHZ±1KHZ | 2900SP-W | ≤300W | JYD-2528-4P8-ARF | ∅10 | 540X340X290 | 8.5KG |
| W20 | 30KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3030-4P8-TMUK | ∅10 | 540X340X290 | 8.6KG |
| 35KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3035-4P8-TMUF | ∅10 | 540X340X290 | 8.6KG | |
| 40KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3040-4P8-TMUF | ∅10 | 540X340X290 | 8.6KG | |
| W20S | 30KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3030-4P8-TMUK | ∅10 | 540X340X290 | 8.7KG |
| 35KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3035-4P8-TMUF | ∅10 | 540X340X290 | 8.7KG | |
| 40KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3040-4P8-TMUF | ∅10 | 540X340X290 | 8.7KG | |
| W30 | 20KHZ±1KHZ | 2900SP-W | ≤1500W | JYD-3820-4P8-AMUK | ∅20 | 540X340X290 | 8.8KG |
| 28KHZ±1KHZ | 2900SP | ≤1500W | JYD-3828-4P8-AQ | ∅20 | 540X340X290 | 8.8KG |
Application scope of Portable Ultrasonic Welding Machine:
Plastic / cloth riveting, spot welding, embossing and other processes
Applicable industries:
Such as electronic appliances, auto parts, clothing packaging, textile industry, environmental protection industry, medical equipment, toy industry, communication equipment and other industries.
Plastic toys: water guns, water games, children's toys, plastic gifts, etc.
Electronic products: tape recorders, cassette tape boxes and core wheels, disk enclosures, mobile phone panels, switch sockets, remote controls, electronic mosquito nets, imitation bottle caps, etc.
Household appliances: electronic clock, blower, steam iron water tank, electric kettle gas fragrance, computer, etc.
Stationery and daily necessities: stationery box, aquarium ruler, slit and shell, pencil case, cosmetic box shell, toothpaste tube sealing end, cosmetic mirror, thermos bottle, lighter, condiment bottle and other sealed containers;
Automobile and motorcycle: battery, front corner lamp, tail lamp, instrument, reflector, welding of manual shielding sleeve of automobile, welding of automobile door panel, welding of automobile front baffle, welding of automobile pad, repair welding of automobile bumper, etc.;
Sports industry applications: table tennis, table tennis rackets, badminton rackets, tennis rackets, golf clubs, billiards tables, treadmill drums, rope skipping stepping machines, treadmill accessories, jumping boxes, gymnastics mats, boxing gloves, boxing sandbags, Sanda protection and other sports equipment;
Packaging industry: hollow board box welding, zipper bag welding, etc.
FAQ:
What should I do when the generator of the Handheld Ultrasonic Welding Machine sends out the overload alarm?
1. In the no-load test, if the working current is normal, the welding head may contact objects that should not be contacted, or the parameter adjustment between the welding head and the welding seat may fail.
2. When the no-load test is abnormal, first observe whether the welding head has cracks or whether the installation is firm, then to remove the ultrasonic welding head, and conduct the no-load test again to check whether there is a problem between the ultrasonic sensor + ultrasonic horn. After troubleshooting the possibility of ultrasonic sensor + ultrasonic horn failure, please replace the welding head with a new one for judgment.
For more details of Portable Ultrasonic Welding Machine, please feel free to contact us !
