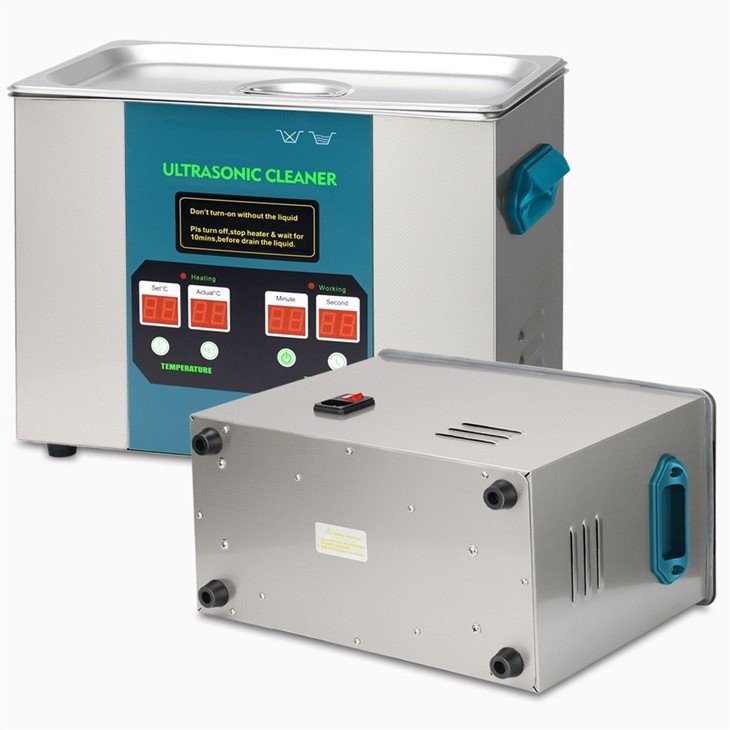

Jewellery Ultrasonic Cleaner
UC-4000 series jewelry ultrasonic cleaning machine is a digital heater timer type, with a frequency of 40KHz and a capacity from 1.3L to 30L. It is widely used in home business and jewelry industry.
At present, there are many types of ultrasonic cleaners on the market, including plastic household ultrasonic cleaners, stainless steel ultrasonic cleaners, large industrial ultrasonic cleaners, commercial digital ultrasonic cleaners, Jewellery Ultrasonic Cleaner, dental laboratory medical ultrasonic cleaners, etc.
The sound people hear is a sound signal with a frequency of 20-20000 Hz. Sound waves above 20000 Hz are called ultrasonic waves. The transmission of sound waves in the longitudinal direction follows a sinusoidal curve, that is, one layer is strong, one layer is weak, and then transmitted in turn. When the weak acoustic signal acts on the liquid, it will produce a certain negative pressure on the liquid, that is, the volume of the liquid increases, and the molecular gap in the liquid increases.
When the strong sound wave signal acts on the liquid, it will produce a certain positive pressure on the liquid, that is, the volume of the liquid is compressed and reduced, and the tiny bubbles formed in the liquid are crushed. Ultrasonic cleaning machine uses this principle to achieve cleaning effect, so it is called ultrasonic cleaning machine.
Of course, in order to better clean the machine, the machine needs to add heating function, and cleaning needs to be added during cleaning. This can achieve better cleaning effect.
Specification of Jewellery Ultrasonic Cleaner
Model | Internal Dimensions (L*W*H) | External Dimensions (L*W*H) | Volume (L) | Gross Weight(KG) | Ultrasonic Power(W) | Heating Powery(W) | Drain valve | Frequency (KHz) | Time (Min) |
UC- 4120 | 240*135*100 | 268*170*243 | 3.2 | 4.77 | 120 | 100 | no | 40 | 1-99 |
UC-4120L | 240*135*150 | 268*170*290 | 5.0 | 5.4 | 120 | 200 | |||
UC-4120-T | 240*135*100 | 240*135*290 | 3.2 | 6.7 | 120 | 200 | yes | ||
UC-4120L-T | 240*135*150 | 268*170*290 | 5.0 | 5.2 | 120 | 200 | yes | ||
UC-4180 | 300*150*100 | 325*178*243 | 4.5 | 5.6 | 180 | 200 | no | ||
UC-4180L | 302*150*150 | 325*178*290 | 6.8 | 6.2 | 180 | 200 | |||
UC-4180-T | 300*150*100 | 325*178*290 | 4.5 | 7.5 | 180 | 200 | yes | ||
UC-4180L-T | 300*150*150 | 325*178*290 | 6.8 | 7.7 | 180 | 200 | yes | ||
UC-4240L | 300*240*150 | 368*270*290 | 11 | 8.5 | 240 | 300 | yes | ||
UC-4360 | 330*300*150 | 397*320*317 | 15 | 11.5 | 360 | 400 | yes | ||
UC-4360L | 330*300*200 | 397*320*368 | 20 | 12.5 | 360 | 400 | |||
UC-4480 | 500*300*150 | 560*320*317 | 22 | 14.5 | 480 | 500 | yes | ||
UC-4600 | 500*300*200 | 560*320*385 | 30 | 16.0 | 600 | 500 | yes |
FAQ:
What frequency is effective when choosing an ultrasonic cleaner?
The cleaning effect will be better, faster and cleaner if the cleaning frequency is correctly and reasonably selected according to the workpiece of different materials and shapes that need to be cleaned.
Low frequency 17k-23k: suitable for cleaning heavy or difficult workpieces. When the impact of bubble explosion will not damage the workpiece surface, low-frequency ultrasonic cleaning should be selected. Low frequency ultrasonic cleaning should be selected, such as auto parts, textiles, etc.
Medium frequency 25k-28k: suitable for cleaning heavy dirt or medium cleaning difficulty. When the impact of bubble blasting will not damage the workpiece surface, medium frequency ultrasonic cleaning should be selected, such as hardware machinery, electroplating industry, etc.
High frequency 40k-200k: suitable for cleaning slightly dirty or easy to clean objects. When the impact of bubble blasting will not damage the workpiece surface, high-frequency ultrasonic cleaning should be selected, such as semiconductors, special high-precision parts, etc.
For more details of Jewellery Ultrasonic Cleaner, please feel free to contact us!
