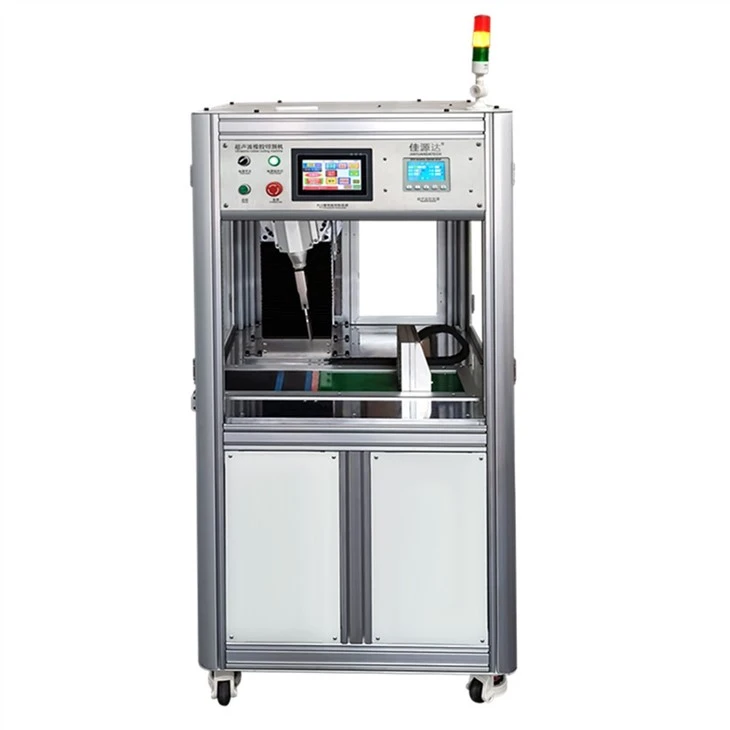

Ultrasonic Cutter for Rubber Products
Jiayuanda G20 ultrasonic rubber cutting equipment is composed of an automatic frequency tracking generator, a high-Q ultrasonic transducer, and a titanium alloy cutting knife(cutting knife width included 20Khz 95mm,190mm,254mm,355mm; 40Khz 85mm 120mm 190mm).It has a good performance in rubber cutting. The whole machine is simple and convenient to install, real-time frequency tracking, adjustable amplitude, abnormal protection, etc.; it can be controlled by PLC or RS485 communication....
Feature:
Applicable in the cutting of high-tenacity materials.
Cutting is performed at a low temperature without any physical or chemical reaction.
Ensuring smooth rubber surface with high adhesiveness.
With no need for any auxiliary cutting devices.
Green environment protecting, low power and cost-effective, with low scrap rate.
Application:
Compare to 40kHz ultrasonic cutting system, jiayuanda tech's Ultrasonic Cutter for Rubber Products is equipped with relatively-low power
ultrasonic generator and mainly used for the cutting of PCR tire rubber(un-vulcanized), which is thinner and lighter than that of TBR or PCR. We offer a series of ultrasonic blades with different sizes for the cutting of tread, sidewall, inner liner, apex,etc.
Product parameter of Ultrasonic Cutter for Rubber Products
Model number | Frequency | Power | Cutting Width | Cutting Height |
G20-150RC | 20KHz | 2000W | 150 mm | 100 mm |
G20-100TC | 20KHz | 2000W | 100 mm | 10 mm |
FAQ：
Why do Ultrasonic Cutter for Rubber Products use titanium alloy
Mainly due to these several reasons
In metal materials, titanium alloy has a relatively high efficiency in conducting ultrasonic waves.
2. Titanium alloy is more corrosion-resistant than stainless steel.
3. On the premise of high sound transmission efficiency, this is currently a low-cost solution.
How to correctly cut thick rubber via Ultrasonic Cutter？
1、 Preparation before cutting
Before cutting thick rubber, preparations need to be made. Firstly, prepare tools, ultrasonic rubber cutting equipment, etc. Secondly, it is necessary to ensure the safety of the cutting area and prevent accidental injuries. Finally, the thick rubber to be cut should be inspected to ensure its quality and integrity.
2、 Precautions
1. Safety first
When performing cutting operations, it is important to pay attention to safety, comply with cutting operation regulations, and wear protective equipment. If the thick rubber that needs to be cut is relatively large, it is best to have someone else assist to ensure one's own safety.
2. Avoid overheating
When using a cutting tool to cut thick rubber, it is important to avoid overheating, as overheating may cause deformation or even combustion of the rubber. Meanwhile, during the cutting process, regular pauses should be made to allow the cutting area to cool down to avoid excessive wear on the rubber cutting area.
3. Attention to details
When cutting thicker rubber, it is important to pay attention to the cutting direction and angle. If the angle is not correct, it can easily cause cracks or damage during cutting. During the cutting process, try to use some support tools to avoid damage to the rubber material due to its heavy weight.
3、 Summary
Proper cutting of thick rubber requires preparation, selecting the correct cutting method, and paying attention to safety and details
For more details of Ultrasonic Cutter for Rubber Products, please feel free to contact us !
