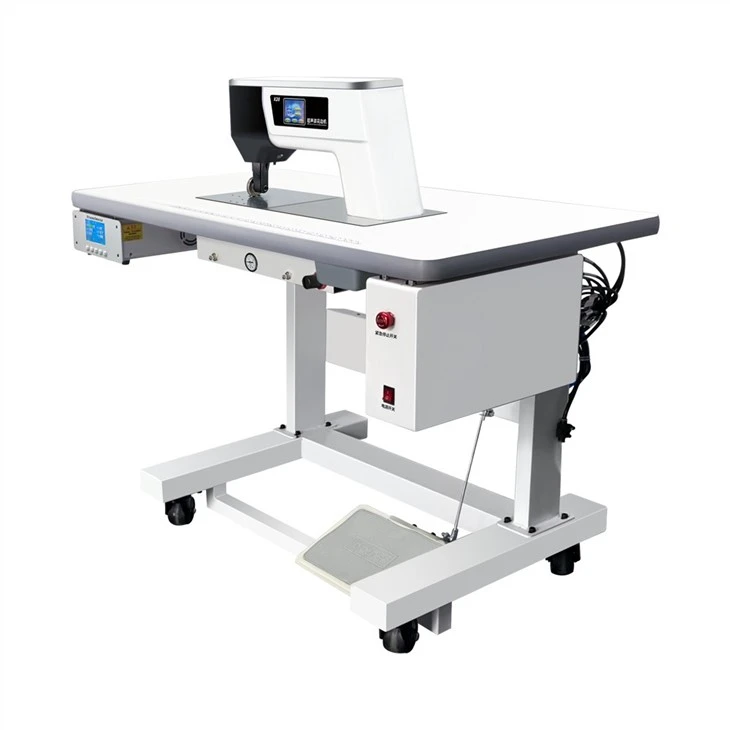

Ultrasound Lace Machine
X20 ultrasonic lace machine is a 35khz intelligent ultrasonic welding machine. Intelligent follow-up ultrasonic generator, high-Q transducer, and wear-resistant tool head are composed of ultrasonic core components. No matter it is used in cutting, welding, and stitching, the product is flat, wrinkle-free, and highly efficient. Machine HMI control, speed customization, data storage, pressure adjustment, flower wheel diversity, abnormal alarm and other functions.....
Product Description:
Ultrasound lace machine, also known as ultrasonic non-woven fabric bag welding machine, utilises ultrasonic technology to weld non-woven materials. The welded bags are robust and resistant to splitting. The pattern wheel of the ultrasonic lace machine is manufactured from a special alloy steel, offering excellent wear resistance, a long service life, and convenient disassembly and assembly, allowing for flexible and rapid adjustments. We can customise various complex pattern wheels according to customer requirements. Ultrasonic lace machine is primarily used for welding handbags, eco-friendly bags, and shopping bags. It also deliver effective welding results for synthetic fibres such as chemical fibre, polyester, polypropylene, nylon, spandex, and acrylic textiles.
Parameters of Ultrasound Lace Machine
| Model | X20 | X20S |
| Ultrasonic frequency | 35KHz | 35Khz |
| Ultrasonic power | ≤1000W | ≤1000W |
| Ultrasonic generator | JYD-2700S | JYD-2700S |
| Ultrasonic transducer | JYD-3035-4P8-TMF | JYD-3035-4P8-TMF |
| Ultrasonic booster | / | / |
| Motor | Stepper motor + reducer400W 2.7A 1.27NM | Stepper motor + reducer400W 2.7A |
| Reducer | Ratio 1:10 | Ratio 1:10 |
| Working methods | Radially external | Radially external |
| Boding width | ≤8mm | ≤8mm |
| Flower wheel diameter | 45mm | 45mm |
| Max speed | 40m/min | 40m/min |
| Working space | 360mm*130mm | 360mm*130mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1100mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case |
| Package size | 1250mm*700mm*1130mm | 1250mm*700mm*1130mm |
| Weight | 129.3KG | 129.3KG |
Features
1. 35KHz 1000W super high power, processing various refractory materials;
2. Jiayuanda ultrasound lace machine adopts radial synchronous vibration technology and is composed of intelligent automatic frequency tracking generator, high-quality high-Q transducer and high-power sensor.
3. Adopt high-power components of well-known brands to ensure the durability of the host;
4. Instead of ordinary sewing machines, it uses the principle of ultrasonic to realize wireless seaming at the mouth of the bag, which is beautiful and has high strength.
5. The operating speed is four times that of the ordinary sewing machine, and the operation is simple; the wireless needleless replaces manual sewing, and the welding strength is good. It is widely used for edging, crimping, sealing, seaming and stitching of bags/snakeskin mouths.
Applications
It is widely used across various industries such as packaging, apparel, beauty and wellness, services, home appliances, non-woven garments, office supplies, and the toy sector. This technology is employed in the production of a diverse range of eco-friendly non-woven products, including reusable bags, gift bags, shopping bags, promotional tote bags, non-woven carry bags, non-woven garment covers, cosmetic pouches, suit covers, promotional aprons, as well as protective covers for computers, televisions, air conditioners, washing machines, and dust-proof covers.
FAQ
1. Do you accept customized services?
Of course, we can provide customized solutions for our clients.
2. What is the specific process of customized solution?
Customization process:
Step 1: Provide samples
Provide the product materials and surface craftsmanship you need;
Step 2: Confirm the sample
We will conduct free sample testing for you and send back the final tested samples to you for you to check if they meet your requirements;
Step 3: Customized Production
Please confirm the delivery time. You can either prepay a deposit or make a full payment in one go. After your payment is received, we will arrange the factory for production. During this period, we will arrange professional engineers to communicate with you about the relevant details.
Step 4: Preparing for shipment
The delivery time for customized machines is usually within 35 days after placing the order. If your machine has already been produced, our colleague will inform you by email and confirm the final payment and logistics method with you. After the full payment is received, we will arrange for shipment immediately.
Step 5: Confirm receipt of goods
After the machine is shipped, our colleague will send you the corresponding logistics waybill, and you can monitor the logistics status of your machine in real time. After you receive the machine, first check if there is any damage to the outside of the machine. If everything is fine and the machine can be used, our company will provide lifelong technical consulting services for every customer. If you are satisfied with our machine after use, we hope you can give us a positive feedback.
For more details of Ultrasound Lace Machine, please feel free to contact us !
