Ultrasonic Sewing Polyester Fabric
X30 is a manual high-power ultrasonic lace machine. The core components composed of an intelligent frequency tracking ultrasonic generator, a high-Q transducer, and a wear-resistant tool head have good performance when used in cutting, welding, and stitching. Dual-motor drive system, adjustable speed, automatic frequency tracking ultrasonic generator drive, manual pressure adjustment, multiple selection of flower wheels and abnormal alarm function......
The ultrasonic sewing machine can emboss and seal polyester fabric at one time, trim and sew the ultrasonic sewing polyester fabric without damaging the edge of the fabric and generating burrs. The flower wheel of ultrasonic sewing machine is easy to change, and the patterns can be customized according to the needs of customers. Ultrasonic sewing polyester fabric embossing does not need preheating and can be operated continuously. Ultrasonic welding polyester fabric machine also has functions such as slitting, which can achieve the effect of multi-purpose.
Parameters
| Model | X30-D54 | X30-L110 | X30-L220 |
| Ultrasonic frequency | 20KHz | 20KHz | 20KHz |
| Ultrasonic power | ≤2600W | ≤2600W | ≤2600W |
| Ultrasonic generator | JYD-2900SP | JYD-2900SP | JYD-2900SP |
| Ultrasonic transducer | JYD-5020-6P8-AU | JYD-5020-6P8-AU | JYD-5020-6P8-AU |
| Ultrasonic booster | S20-D54D38H129-H | S20-D54D38H129-H | S20-D54D38H129-H |
| Motor | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz |
| Reducer | / | / | / |
| Working methods | external | built-in | built-in |
| Boding width | ≤16mm | ≤100mm | ≤210mm |
| Flower wheel diameter | 50mm | 50mm | 50mm |
| Max speed | 20m/min | 20m/min | 20m/min |
| Working space | 370mm*155mm | 370mm*155mm | 370mm*155mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1101mm | 1210*600mm*1101mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case | Export wooden case |
| Package size | 1250mm*600mm*1080mm | 1250mm*600mm*1080mm | 1250mm*600mm*1080mm |
| Weight | 88.5KG | 88.5KG | 88.5KG |
Features
When Ultrasonic Sewing Polyester Fabric Machine is compared with the traditional needle stitching, the ultrasonic welding polyester cloth has the following advantages
1.The machine uses ultrasonic sewing technology to avoid the use of needles and threads and eliminate the trouble of frequent replacement of needles and threads. At the same time, it has no broken seams of traditional stitching, and the processed textiles are neat without burrs. Ultrasonic welding also plays a decorative role in the sewing of polyester cloth. The fabric sewn by ultrasonic sewing machine has the advantages of strong adhesion and waterproof.

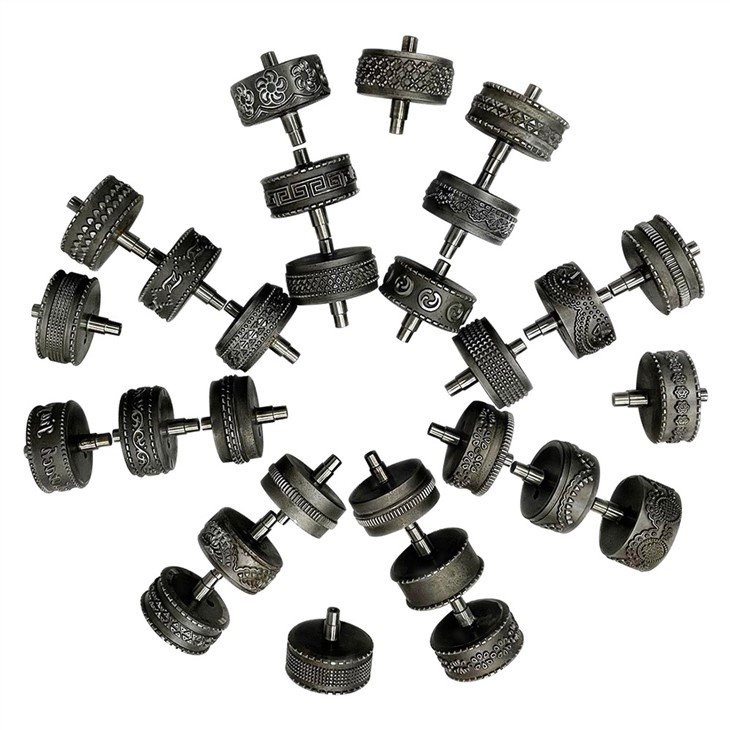

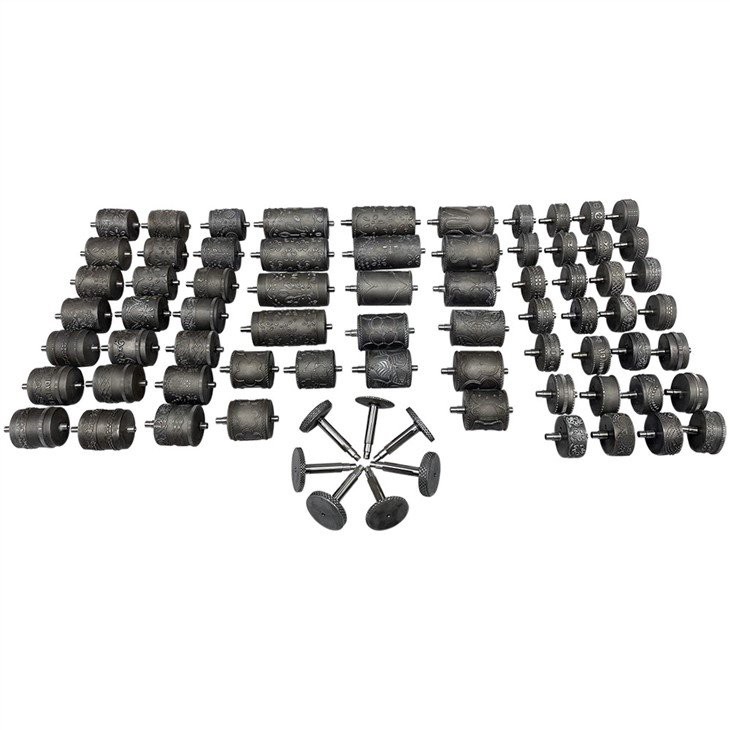

2. The pattern roller is made of special alloy materials, with clear embossing, three-dimensional relief effect for cutting patterns, fast working speed and good edge banding effect. It is more upscale and beautiful, and its quality is better guaranteed.
3. Using intelligent ultrasonic generator and special steel wheel processing, the sealed edge will not crack, will not damage the edge of the cloth, and there will be no burrs or curling.
4. There is no need to preheat in the manufacturing process of ultrasonic welded polyester cloth, and continuous production operation can be carried out at any time.
5. It is easy to operate, which is very different from the traditional sewing machine operation method.
6. The cost is low, but the efficiency is high. It is 5 to 6 times faster than traditional machines. It is an economical choice for mass production.
FAQ
Q: How do you make our business long-term team and good relationship?
A: We maintain excellent quality and competitive prices to ensure that our customers benefit.
Q: Do we need to install the Ultrasonic Sewing Polyester Fabric Machine after we get it?
A: We will send you the shipping video and manual of the machine before shipment to tell you how to install and use the machine. You can also contact us, we will give you the operation video. Let you have no worries.
Q: Can I paste my LOGO/brand on the machine and complete the product?
Answer: Of course you can. We support OEM customization, but we also require a certain amount to complete.
Q: How strong is the factory?
A: We have more than 10 years of experience in ultrasonic research and development technology. Many engineers with production experience. A number of export certifications, etc.
Q: How do I place an order?
A: You can send your purchase order to us via email, whatsapp or WeChat.
Applications
Gift packaging tape, fabrics, table cloths, chopstick sets, seat covers, coasters, curtains, raincoats, PVE handbags, umbrellas, food packaging bags. Shoes and hats, disposable gowns, masks, surgical masks, medical eye masks, etc. Suitable for all kinds of wool/hemp/and many kinds of synthetic materials.
For more details of Ultrasonic Sewing Polyester Fabric Machine, please feel free to contact us!
