Ultrasonic Bag Machine
X30S is an automatic high-power ultrasonic lace machine. The ultrasonic core components composed of intelligent frequency tracking ultrasonic generator, high-Q ultrasonic transducer, and wear-resistant tool head have good performance in cutting, welding, and stitching. The whole machine is digitally controlled, driven by dual motors, adjustable speed, pneumatic pressure control, flower wheel diversity and abnormal protection functions.....

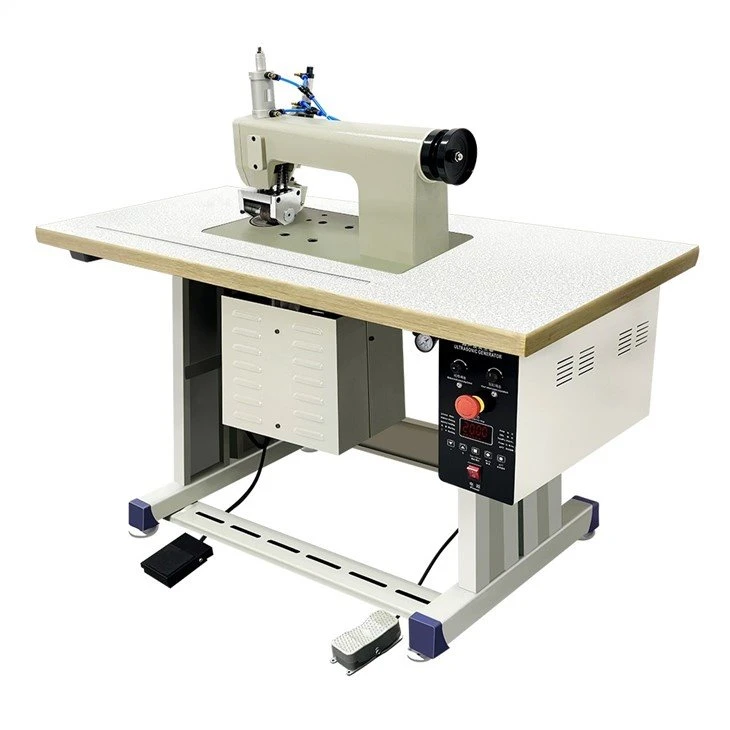

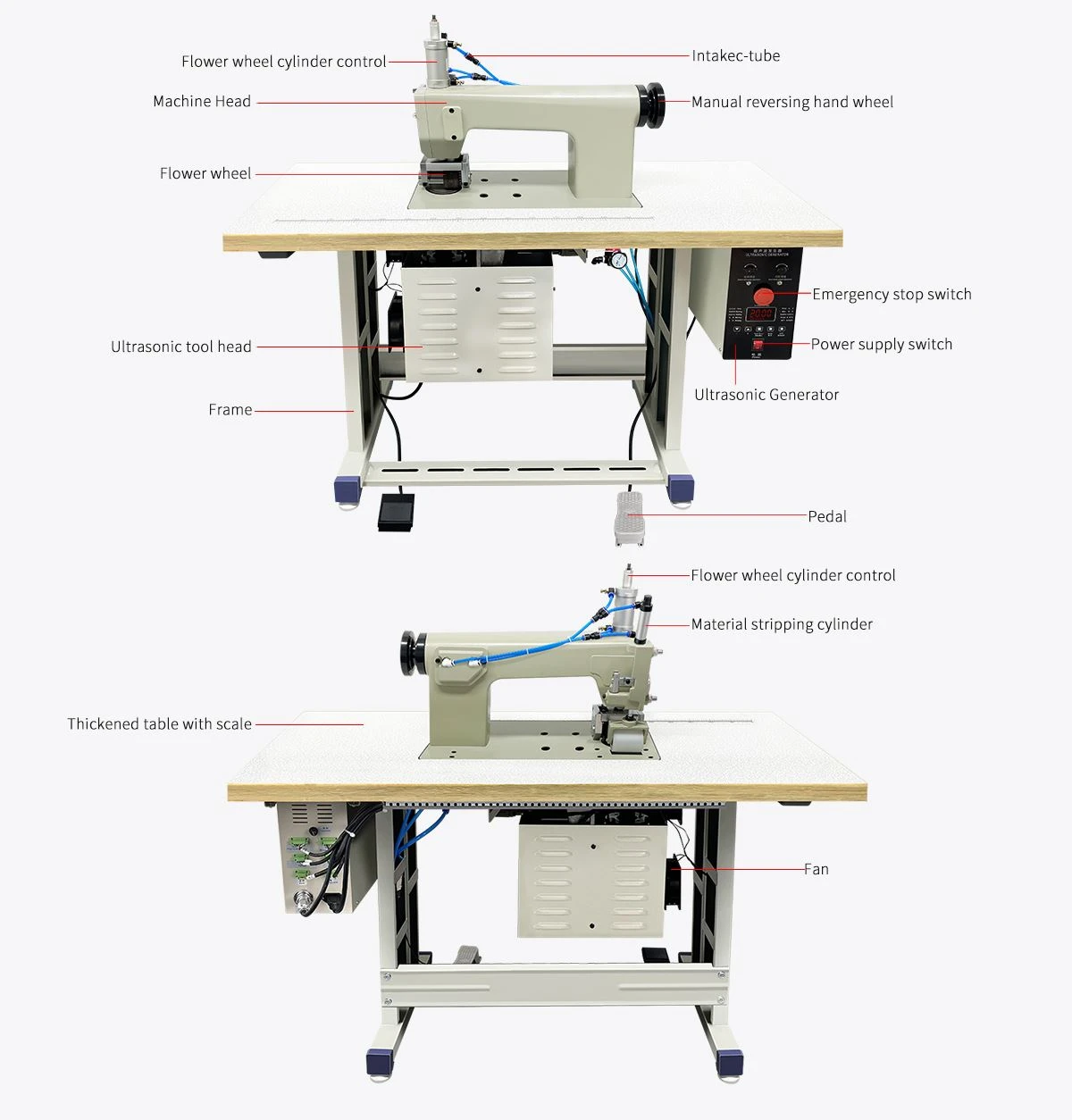

Ultrasonic Bag Machine is an integrated high-power semi-automatic ultrasonic lace bag making machine. It has a dual motor drive and pneumatic control system, which enhances the body and efficiency, and ensures stable power balance during machine operation. It uses our independently developed ultrasonic generator and high Q value transducer, with some parts imported. The maximum speed of the machine can reach 20m/min, and the maximum output power is 2600W. It can be used for mass production of various cloth bags, such as shopping bags, woven bags, gift bags, coffee packaging bags, milk tea packaging bags, etc. It has functions such as welding, cutting, sewing, trimming, embossing, etc.
Parameters of Ultrasonic Bag Machine
| Model | X30S-D54 | X30S-D77 |
| Ultrasonic frequency | 20KHz | 20KHz |
| Ultrasonic power | ≤2600W | ≤2600W |
| Ultrasonic generator | JYD-2900SP | JYD-2900SP |
| Ultrasonic transducer | JYD-5020-6P8-AU | JYD-5020-6P8-AU |
| Ultrasonic booster | S20-D54D38H129-H | S20-D54D38H129-H |
| Motor | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz |
| Reducer | / | / |
| Working methods | built-in | built-in |
| Boding width | ≤25mm | ≤50mm |
| Flower wheel diameter | 50mm | 50mm |
| Max speed | 20m/min | 20m/min |
| Working space | 370mm*155mm | 370mm*155mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1100mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case |
| Package size | 1250mm*600mm*1160mm | 1250mm*600mm*1160mm |
| Weight | 88.5KG | 88.5KG |
Features
1. It is suitable for processing non-woven materials including chemical synthetic fiber cloth, or chemical films containing chemical fiber blended cloth and more than 30% of chemical textile materials. It can be processed into required products, such as nylon cloth, knitted cloth, non-woven cloth, polyester cotton cloth, polyester cloth, flash cloth, multi-layer cloth, etc. It is suitable for coating cloth film paper on various laminated surfaces.
2. Ultrasonic bag machine is powerful and widely used for sewing, cutting, slitting, cutting holes, pattern car edge, pressing graphics, forming, printing, bronzing, folding edge, printing etc.;
3. Using ultrasonic vibration and special steel wheels, after pressurizing, you can get the above-mentioned use functions;
4. No preheating is required during production, and continuous operation is possible. No smoke or sparks during processing, no damage to the edges of the cloth, and burrs can be avoided.
FAQ
Q: What are the key points to pay attention to when adjusting the frequency of the ultrasonic horn?
A: HORN frequency adjustment
In order to achieve the best use effect and maintain the performance of this machine, it is very important to adjust the resonance of the vibrating box and the vibration system.
(1) Before tuning, the welding head and the transmission must be securely locked. When tuning, do not touch the welding head with the work object.
(2) Find the box cover on the right side of the vibration box, and there is a frequency adjustment screw inside.
(3) ultrasonic bag machine press the sound wave check button on the vibrating box, and watch the instructions of the ammeter first.
(4) Rotate the frequency adjustment screw left and right until the ammeter indicates at the lowest position, usually when the power adjustment knob points to 0, the pointer is 0,3~0,7A.
(5) Note: a. When turning the frequency adjustment screw, the pointer of the ammeter moves up and down, not the size of the power output, but only the degree of resonance between the vibrator box and the dynamic system (the lower the indication, the better the resonance).
b. When the ammeter oscillates under no-load, it indicates the degree of resonance; when the load oscillates, it indicates the output energy.
c. The correct tuning is very important. If the normal condition cannot be achieved, it should not be used reluctantly to avoid damage to the parts.
Reminder: Please operate the Ultrasonic Bag Machine correctly, so that the production process can achieve higher efficiency.
For more details of Ultrasonic Bag Machine, please feel free to contact us !
