Ultrasonic Tablecloth Lace Making
X30 is a manual high-power ultrasonic lace machine. The core components composed of an intelligent frequency tracking ultrasonic generator, a high-Q transducer, and a wear-resistant tool head have good performance when used in cutting, welding, and stitching. Dual-motor drive system, adjustable speed, automatic frequency tracking ultrasonic generator drive, manual pressure adjustment, multiple selection of flower wheels and abnormal alarm function......
Ultrasonic tablecloth lace making machine is also called ultrasonic tablecloth sewing machine and ultrasonic lace sewing machine. Using ultrasonic wave and special steel wheel, it can sew all kinds of fabrics directly, and cut edges, holes and images at the same time, so that the products can be formed at one time without burrs and loose edges.
Parameters:
| Model | X30-D54 | X30-L110 | X30-L220 |
| Ultrasonic frequency | 20KHz | 20KHz | 20KHz |
| Ultrasonic power | ≤2600W | ≤2600W | ≤2600W |
| Ultrasonic generator | JYD-2900SP | JYD-2900SP | JYD-2900SP |
| Ultrasonic transducer | JYD-5020-6P8-AU | JYD-5020-6P8-AU | JYD-5020-6P8-AU |
| Ultrasonic booster | S20-D54D38H129-H | S20-D54D38H129-H | S20-D54D38H129-H |
| Motor | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz |
| Reducer | / | / | / |
| Working methods | external | built-in | built-in |
| Boding width | ≤16mm | ≤100mm | ≤210mm |
| Flower wheel diameter | 50mm | 50mm | 50mm |
| Max speed | 20m/min | 20m/min | 20m/min |
| Working space | 370mm*155mm | 370mm*155mm | 370mm*155mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1101mm | 1210*600mm*1101mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case | Export wooden case |
| Package size | 1250mm*600mm*1080mm | 1250mm*600mm*1080mm | 1250mm*600mm*1080mm |
| Weight | 88.5KG | 88.5KG | 88.5KG |
Features:
1. The ultrasonic tablecloth lace making machine uses ultrasonic vibration and steel flower wheels to obtain beautiful and smooth products after pressing.
2. It does not emit smoke, sparks or damage the edges when processing lace tablecloths and curtains.

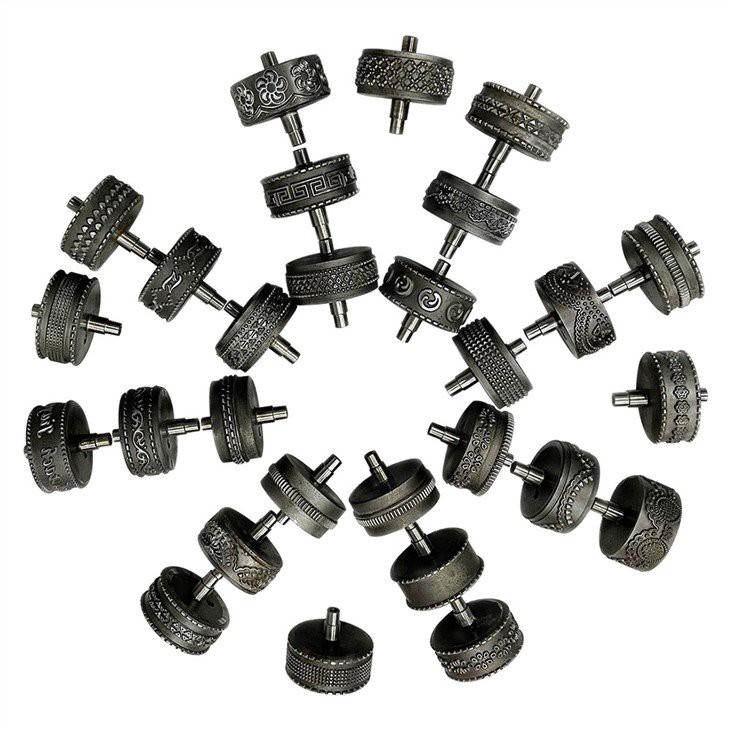

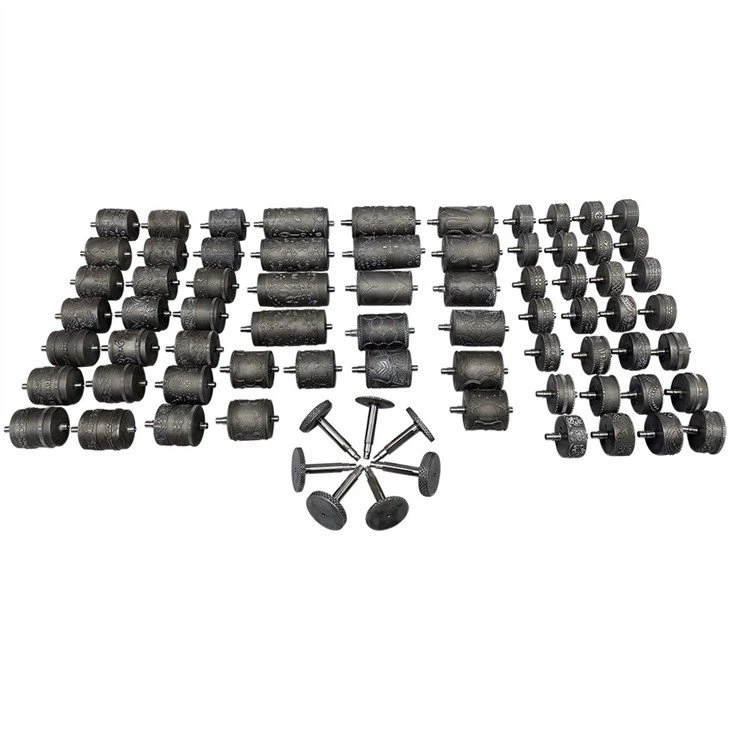

3. The pattern roller is made of special alloy steel. We can customize various flower wheels according to your needs, and the flower wheels are easy to replace.
4. Ultrasonic equipment does not need preheating when cutting tablecloth lace, and it is safe to run for a long time.
5. The machine speed can reach 20m/min, and the faster machine can also be customized.
6. 20KHz low-noise ultrasonic is not easy to be disturbed when making tablecloth lace.
FAQ：
Question: How to determine the size of the roller and pattern?
A: We make lace patterns with various sizes according to customer requirements.
Q: What are the payment methods?
A: T/T Paypal West Union and In Cash.
Q: Do you have stock in Ultrasonic Tablecloth Lace Making?
A: Yes, we have. In addition to smart devices or devices that require customization of other functions, a certain amount of manufacturing time is required. And we support one-to-one customer solutions.
Q: Can you suggest a design to us according to our special requirements or according to our object samples?
A: Of course, we can do it. Please tell us your thoughts or your application. If you have a sample object, you can send it to us or send the pictures. And we Customers are very welcome to make samples.
Q: Are you a trading company or a manufacturer?
A: Yes, we are a factory. All machines are manufactured by ourselves. We can provide customized services according to your requirements.
Q: How long is your delivery time?
A: 3-5 days when the goods in stock, and 10-12 days for no stock of products
Applications：
Protective clothing, car clothing, invisible car clothing, motorcycle clothing, PP film, mechanical equipment protective cover, medical equipment cover, PET film, table cloth, chopstick cover, seat cover, one-time Sex masks, protective clothing, isolation gowns, laboratory gowns, gowns, masks, nurse caps, surgical caps, doctor caps, surgical kits, maternity kits, first aid kits, diapers, pillowcases, bed sheets, duvet covers, shoe covers, etc.
For more details of Ultrasonic Tablecloth Lace Making Machine, please feel free to contact us !
