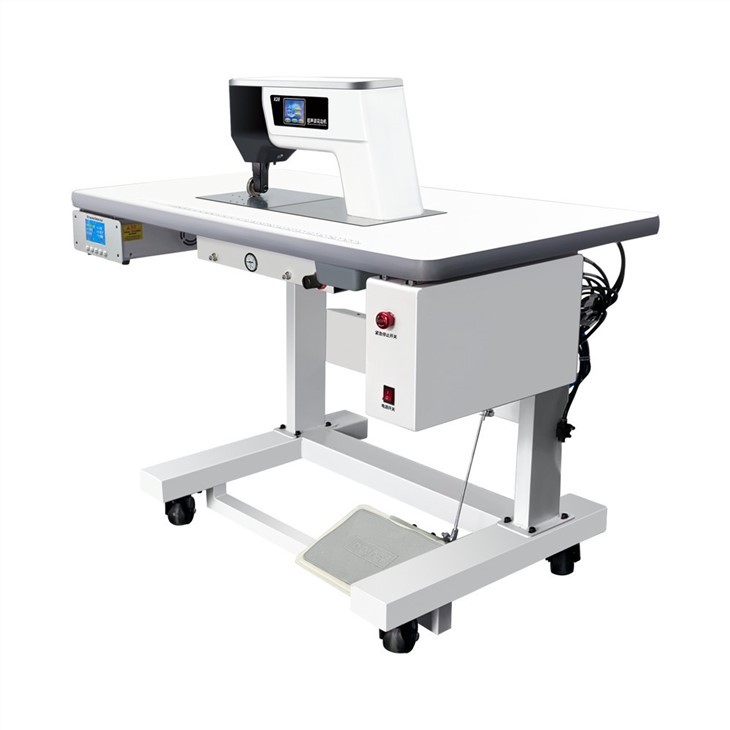

Ultrasonic Lace Sealing Machine
X20 ultrasonic lace machine is a 35khz intelligent ultrasonic welding machine. Intelligent follow-up ultrasonic generator, high-Q transducer, and wear-resistant tool head are composed of ultrasonic core components. No matter it is used in cutting, welding, and stitching, the product is flat, wrinkle-free, and highly efficient. Machine HMI control, speed customization, data storage, pressure adjustment, flower wheel diversity, abnormal alarm and other functions.....
The advantages of the ultrasonic lace sealing machine are fast, energy-saving, high fusion strength, good electrical conductivity, no sparks, and close to cold processing. The machine has the characteristics of high speed, high production efficiency, many kinds of rolls, strong adaptability, no needle and thread accessories, smooth cutting surface and no burrs. The use of ultrasonic technology for lace sealing also plays a decorative role. It has strong adhesive force and can achieve waterproof effect. The embossing of the machine is clear, and the surface of the processed product has three-dimensional relief effect. Its working speed is fast and the product effect is good. The processed products are more high-end and beautiful, with quality assurance.
Features of Ultrasonic Lace Sealing Machine
- Intelligent HMI ergonomic design
- Electrical design is designed according to CE certification standards
- Various patterns can be made, only different rollers need to be replaced, with high interchangeability. It can also be designed according to customer requirements.
- Intelligent system computer stores data, can store 10 sets of data
- The equipment adds frequency, power, amplitude and other abnormal alarm functions
- High-quality imported components to ensure the stability of the product stitching process
Parameters of Ultrasonic Lace Sealing Machine
| Model | X20 | X20S |
| Ultrasonic frequency | 35KHz | 35Khz |
| Ultrasonic power | ≤1000W | ≤1000W |
| Ultrasonic generator | JYD-2700S | JYD-2700S |
| Ultrasonic transducer | JYD-3035-4P8-TMF | JYD-3035-4P8-TMF |
| Ultrasonic booster | / | / |
| Motor | Stepper motor + reducer400W 2.7A 1.27NM | Stepper motor + reducer400W 2.7A |
| Reducer | Ratio 1:10 | Ratio 1:10 |
| Working methods | Radially external | Radially external |
| Boding width | ≤8mm | ≤8mm |
| Flower wheel diameter | 45mm | 45mm |
| Max speed | 40m/min | 40m/min |
| Working space | 360mm*130mm | 360mm*130mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1100mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case |
| Package size | 1250mm*700mm*1130mm | 1250mm*700mm*1130mm |
| Weight | 129.3KG | 129.3KG |
FAQ
Q: How is your company's service?
A: Pre-sale service:
1. Provide professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any questions, please contact us online or send an email to us, we promise to reply you as soon as possible!
Sales service:
1. We promise to be honest, fair and give you preferential prices, and we are happy to provide you with procurement consulting services.
2. We guarantee punctuality, strict implementation of contract terms in quality and quantity.
After-sales service:
1. Our Ultrasonic Lace Sealing Machine is guaranteed for 2 years. During the warranty period, we provide free technical support and free high-quality spare parts supply. Lifetime maintenance.
2. 24-hour telephone online service.
Q: What is the minimum order quantity required?
A: Usually 1 set, or according to your order, a lot of wholesale more beautiful prices.
Q: What is the voltage?
A: 110V /220V /380V /415V, 50/60 HZ single-phase / three-phase, customized voltage according to local voltage.
Q: What are the payment deadlines and quotation requirements?
A: T/T, credit card, Western Union, RMB, Alipay, WeChat, cash, e-check, MoneyGram, letter of credit, etc.
Document Quotation
Express: express waybill
Air freight: air waybill
Shipping: bill of lading, commercial invoice, packing list, sales contract, CO, FE, FTA or according to your requirements.
For more details of Ultrasonic Lace Sealing Machine, please feel free to contact us !
