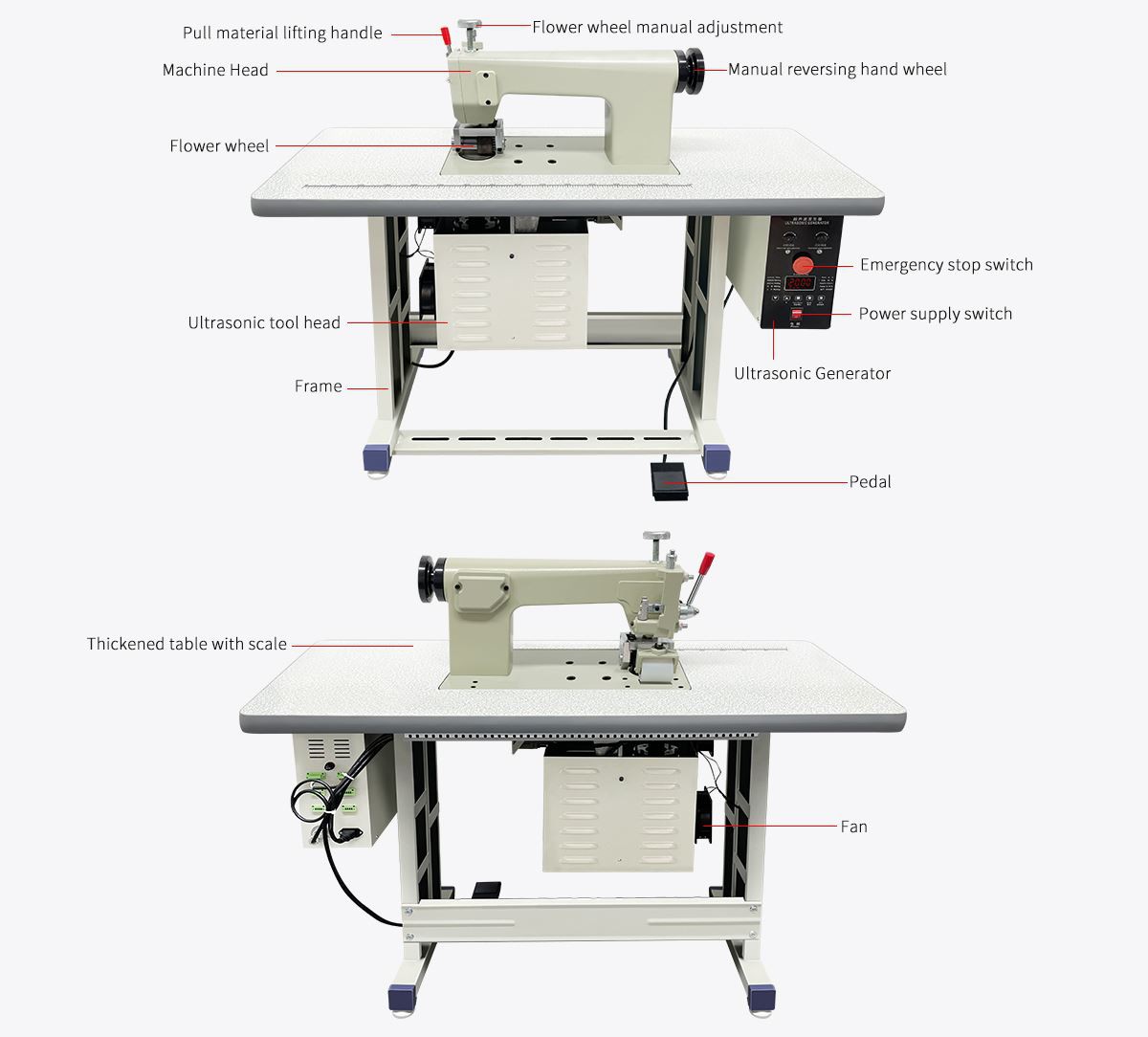

Ultrasonic Underclothing Lace Sewing Machine
X30 is a manual high-power ultrasonic lace machine. The core components composed of an intelligent frequency tracking ultrasonic generator, a high-Q transducer, and a wear-resistant tool head have good performance when used in cutting, welding, and stitching. Dual-motor drive system, adjustable speed, automatic frequency tracking ultrasonic generator drive, manual pressure adjustment, multiple selection of flower wheels and abnormal alarm function.....
Introduction
Ultrasonic Underclothing Lace Sewing Machine adopts the latest ultrasonic technology, and uses high-frequency oscillation to transmit sound waves from the welding head to the welding surface of the working object, instantly making the molecules of the working object rub and reach the melting point of plastic, so as to complete the rapid fusion of underwear materials and underwear welding. The strength of the joint is close to that of the whole raw material. As long as the joint surface of the product is designed to match, it is possible to achieve complete sealing. Ultrasonic Underclothing Lace Sewing Machine is mainly used for sewing, welding, welding, embossing, etc. The finished product has the advantages of smooth appearance and good sealing.
Parameters
| Model | X30-D54 | X30-L110 | X30-L220 |
| Ultrasonic frequency | 20KHz | 20KHz | 20KHz |
| Ultrasonic power | ≤2600W | ≤2600W | ≤2600W |
| Ultrasonic generator | JYD-2900SP | JYD-2900SP | JYD-2900SP |
| Ultrasonic transducer | JYD-5020-6P8-AU | JYD-5020-6P8-AU | JYD-5020-6P8-AU |
| Ultrasonic booster | S20-D54D38H129-H | S20-D54D38H129-H | S20-D54D38H129-H |
| Motor | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz | Single/asynchronous motor 60W 0.8A 110V 60Hz |
| Reducer | / | / | / |
| Working methods | external | built-in | built-in |
| Boding width | ≤16mm | ≤100mm | ≤210mm |
| Flower wheel diameter | 50mm | 50mm | 50mm |
| Max speed | 20m/min | 20m/min | 20m/min |
| Working space | 370mm*155mm | 370mm*155mm | 370mm*155mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1101mm | 1210*600mm*1101mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case | Export wooden case |
| Package size | 1250mm*600mm*1080mm | 1250mm*600mm*1080mm | 1250mm*600mm*1080mm |
| Weight | 88.5KG | 88.5KG | 88.5KG |
Main features:
-
The flower wheel welding head of ultrasonic lace machine is made of special alloy steel material and has undergone special heat treatment process, which has the characteristics of wear resistance and long service life.
-
The Ultrasonic Underclothing Lace Sewing Machine can be processed continuously without preheating during operation, with fast speed, mass production, and can turn corners. It does not emit smoke or sparks during processing, and does not damage the edges of the cloth.
-
The mechanical operation of the ultrasonic lace sewing machine is convenient and easy to understand, and ordinary workers can operate it on the machine.
-
Use 20KHZ-15KHZ low-noise ultrasonic to prevent noise interference.
-
The ultrasonic lace machine directly sews all kinds of fabrics, and at the same time does trimming, cracking, and printing, so that the product can be formed at one time, without burrs and loose openings.
-
The ultrasonic lace machine uses ultrasonic waves to directly wrap, bronze, and press various graphics on various materials, and adjust the power according to different fabrics and thicknesses.
-
When color paper and gold foil are added to the fabric, the functions of color printing and bronzing can be realized when pressurized.
-
Multiple machines are combined into a special machine to complete products with large widths at one time, such as quilt covers, umbrellas, etc.
-
The whole machine adopts casting structure, which is sturdy and durable, ensuring better welding, cutting and embossing effect.
-
The flower wheel and the bottom steel mold of the lace machine are made of special alloy steel. The flower wheel can develop various complex flower-shaped patterns according to customer needs. The bottom steel mold is wear-resistant and has a long life. The flower wheel and the bottom mold are easy to disassemble and assemble. The core type adjustment is flexible and fast, and the level is easy to adjust.
Applications
Men's underwear, women's underwear, women's underwear, women's bras, baby underwear, diapers and other sanitary products.
For more details of Ultrasonic Underclothing Lace Sewing Machine, please feel free to contact us !
