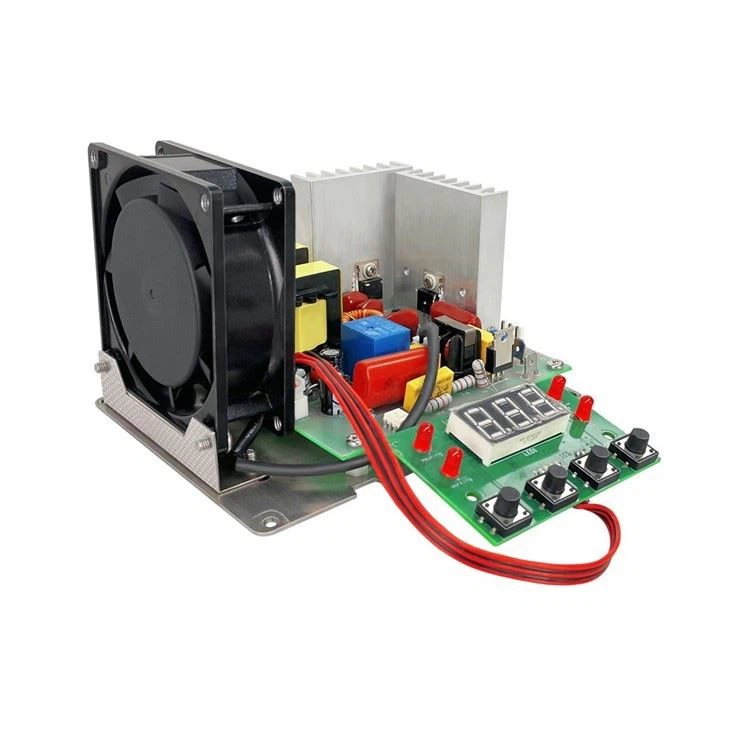

Ultrasonic Transducer Circuit

Ultrasonic transducer circuit board is the main and important component of ultrasonic cleaning system. PCB ultrasonic generator is usually called ultrasonic electric box and ultrasonic driving power supply. Its function is to convert our main power supply (220V or 380V, 50 or 60Hz) into high-frequency AC signal matching with the ultrasonic sensor. In the form of amplification circuit, linear amplification circuit and switching power supply circuit can be used. In terms of conversion efficiency, high-power ultrasonic power supply generally adopts switching power supply. Linear power supply also has its unique application range. Its advantage is that it can not strictly require circuit matching, and allows the working frequency to change rapidly and continuously. From the current situation of the ultrasonic industry, ultrasonic is mainly divided into self-excited and other exciting power supplies.

Specification:

For more details of Ultrasonic Transducer Circuit, please feel free to contact us !
