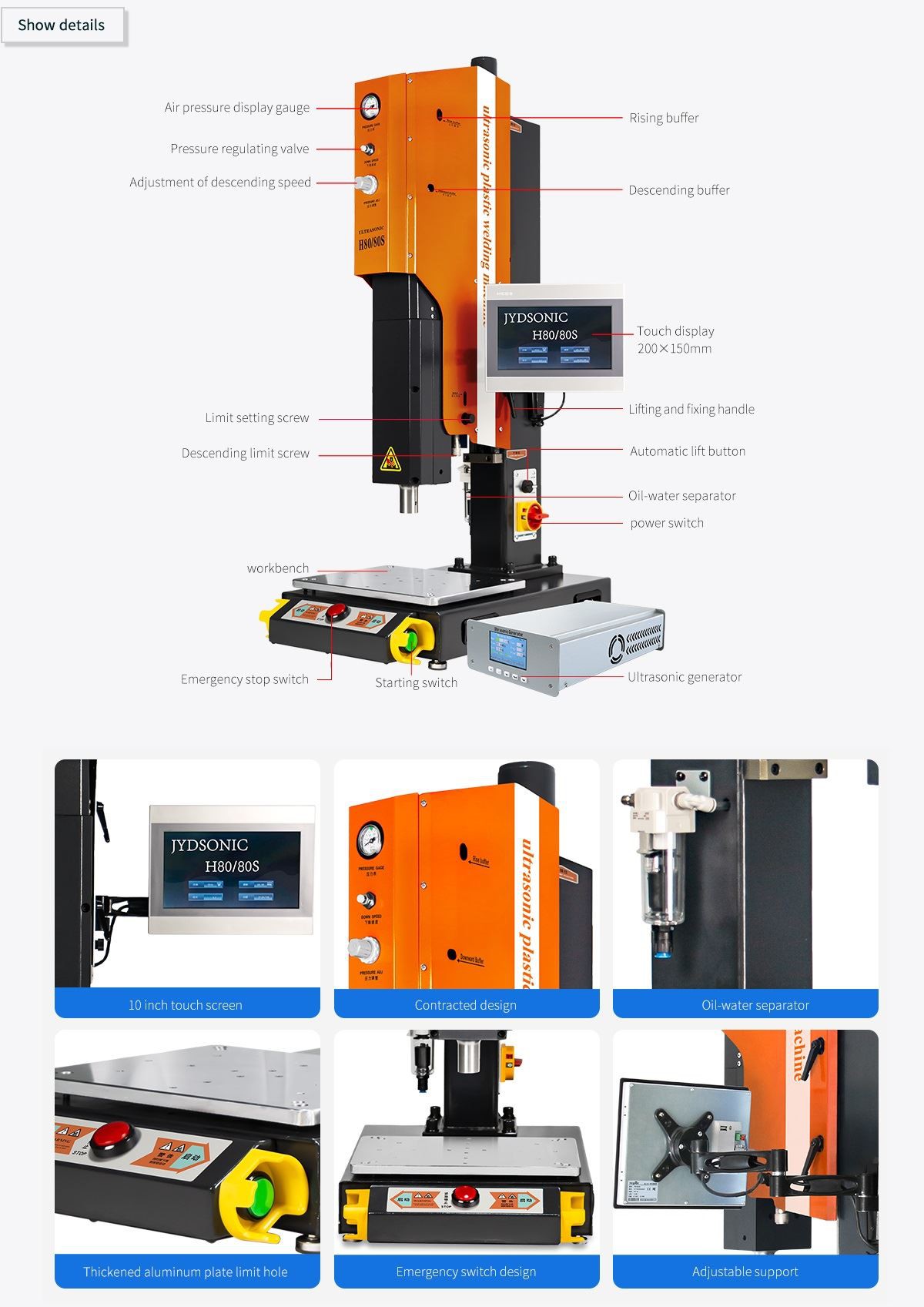

Ultrasonic Plastic Toys Welding Machine
Jiayuanda Ultrasonic Plastic Welding Equipment-H80/80S. It is an intelligent digital ultrasound welding machine researched and developed by us. We use perfect and optimized real-time phase-locked loop tracking technology in developing this series, which achieves more stable and reliable operation. Flexible human-machine interface configuration gains more flexible product application....
Ultrasonic Plastic Toys Welding Machine is designed to weld large parts with servo precision. It is equipped with proprietary and easy-to-use HMI Software to provide the most effective process control by providing amplitude and additional data for controlling, monitoring, diagnosing, and evaluating the welding process. It is widely used for welding plastic toys, children's toys, and pet toys. It can be formed at one time without screws and glue. It is economical and environmentally friendly. In addition, the equipment is also widely used for precision welding of medical devices
The generator maintenance of Ultrasonic Plastic Toys Welding Machine should pay attention to five aspects:
1. It is not necessary to spray any detergent inside, and it is not allowed to clean internal parts with water to prevent conduction;
2. The air outlet of the electric box shall be kept at least 10 cm away from the wall to facilitate ventilation;
3. After the power supply is turned off, test the torsion according to the sound wave to release the residual capacitance and increase the service life of the parts.
4. It is forbidden to throw metal sundries to prevent short circuits caused by touching parts;
5. Open the outer cover every 3 months, and there is an air gun to blow out the internal dust;
Product parameter:
|
Products |
H80 series Ultrasonic Plastic Toys Welding Machine |
|||||
|
Model No. |
15K-3200W |
20K-3000W |
35K-1200W |
15K-3200W-P |
20K-3000W-P |
35K-1200W-P |
|
working frequency |
15KHZ |
20KHZ |
35KHZ |
15KHZ |
20KHZ |
35KHZ |
|
Working power |
3200W |
3000W |
1200W |
3200W |
3000W |
1200W |
|
Working voltage/gas source |
220V±10% / 0.2～0.7Mpa |
|||||
|
Welding stroke |
100MM |
100MM |
100MM |
100MM |
100MM |
100MM |
FAQ:
Q： What should be noted for industrial ultrasonic cleaning machines?
It should be noted that industrial ultrasonic cleaning machines are not suitable for all types of industrial components. For example, some vulnerable materials, brittle materials, or parts containing volatile solvents may not be suitable for ultrasonic cleaning. In addition, for parts containing precision electronic components, special attention should be paid to selecting appropriate ultrasonic cleaning machines and cleaning parameters to avoid damage to electronic components. Therefore, it is reminded that before using an ultrasonic cleaning machine, everyone should carefully read the recommendations of the parts manufacturer and the manual of the cleaning machine to determine whether it is suitable for ultrasonic cleaning of specific parts.
Q： How to achieve the best effect of an ultrasonic cleaning machine?
Answer: Choose the size and type of ultrasonic cleaning machine, set the correct temperature and cleaning time, and choose the appropriate cleaning solution. You can consult the manufacturer for specific details when purchasing.
Q： What is the optimal temperature for ultrasonic cleaning?
Answer: The optimal cleaning temperature is between 50 ℃ and 65 ℃. Heating can usually improve the cleaning speed, and the chemical components in most cleaning solutions will achieve the best cleaning effect at a certain temperature. The best way to find the optimal temperature is through experimentation.
For more details on Ultrasonic Plastic Toys Welding Machines, please feel free to contact us!
