Ultrasound Welding Machine

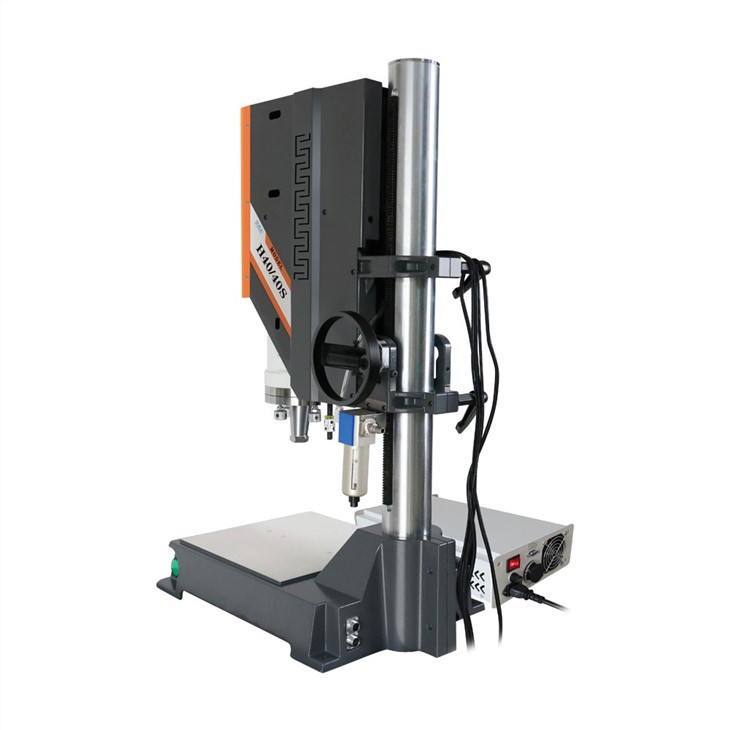

Jiayuanda H40/H40S ultrasonic plastic welding machine,it is an intelligent digital ultrasonic plastic welder machine researched and developed by us. We use perfect and optimized real-time phase-locked loop tracking technology in developing this series, which achieves more stable and reliable operation. Flexible human-machine interface configuration gains more flexible product application.....
Ultrasound welding machine is the product of high technology. It integrates microcomputer, ultrasonic, electronic and mechanical technology. When welding plastic, the ultrasonic welding machine needs to add any adhesive and flux, does not need to use heat source, and has the advantages of simple operation and fast welding speed. The welded parts have high fastness, smooth surface, tightness and consistency of finished products. The ultrasonic generator in the ultrasonic welding machine generates high-frequency electric energy, which is then converted into high-frequency vibration mechanical energy by the piezoelectric transducer, and finally transmitted to the welding die in direct contact with the weldment through the horn.
Due to different sizes and shapes of welding objects, the corresponding die design is more complex. Its shapes include circle, cone and rectangle. For die with transverse length exceeding mm, vertical slotting is also required to suppress resonance and reduce stress. Finally, the high-frequency mechanical vibration on the die is transmitted to the welding surface of the plastic part.
Product Parameter
Products | H40 series Ultrasound Welding Machine | ||||||||
working frequency | 15KHZ | 15KHZ | 15KHZ | 20KHZ | 20KHZ | 28KHZ | 30KHZ | 35KHZ | 40KHZ |
Working power | 4200W | 3200W | 2600W | 3000W | 2500W | 1200W | 1200W | 1200W | 800W |
Working voltage/gas source | 220V±10% / 0.2～0.7Mpa | ||||||||
Welding stroke | 100MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM |
Dimensions mm | 750*900*1900 | 650*750*1880 | 390*630*1050 | 650*750*1880 | 390*630*1050 | ||||
Net weight | ≤260KG | ≤150KG | ≤85KG | ≤150KG | ≤85KG | ||||
Operation interface | 4.3 inch touch screen | ||||||||
Features:
1.Automatic tuning system with memory closed-loop frequency feedback of the last cycle, allowing faster and more effective ultrasonic stack startup
2. Automatic detect faults and display
3. The accuracy of time control up to 0.001 seconds
4. Multi weld modes optional:
- Time mode
- Energy mode (optional)
- Distance mode(optional)
- Continuous mode(optional)
Application:
1. Toy Industry: toy gun, water gun, telephone and rag baby, etc;
2. Electronic Industry: gum case of watch, nylon watch band, calculator, sound box wraps hull and cell phone battery, etc;
3. Automotive Industry: interior components (side door trim, center console), engine compartment components (cylinder head cover, engine covers), lighting, filters and acoustic foams, etc;
4. Packing Industry: disguise box, PVC packing box and toothpaste tube, etc;
5. General Business Ware: Inkjet cartridge, video cassette rack, tape box and computer disk, etc;
6. Medical Industry: sterile package sealing, equipment component assembly, syringes and filters, etc.
FAQ
Does the ultrasound welding machine have radiation?
At present, there is no relevant proof that the radiation of ultrasonic welding machine does too much harm to human body, but the only disadvantage is that the secondary friction between machine welding head and plastic parts will produce infrasound wave, which is 90db-120db, which has obviously exceeded the threshold of 70dB of the highest noise level.
However, the generation time and duration of sound waves are short, and the damage to human ears is not obvious. However, the personnel on the production line for a long time must wear anti noise devices, such as earplugs and earmuffs, to avoid tinnitus and dizziness, and to prevent the impact of long-time work on hearing.
For more details of Ultrasound Welding Machine, please feel free to contact us !
