Ultrasonic Plastic Welding Machine

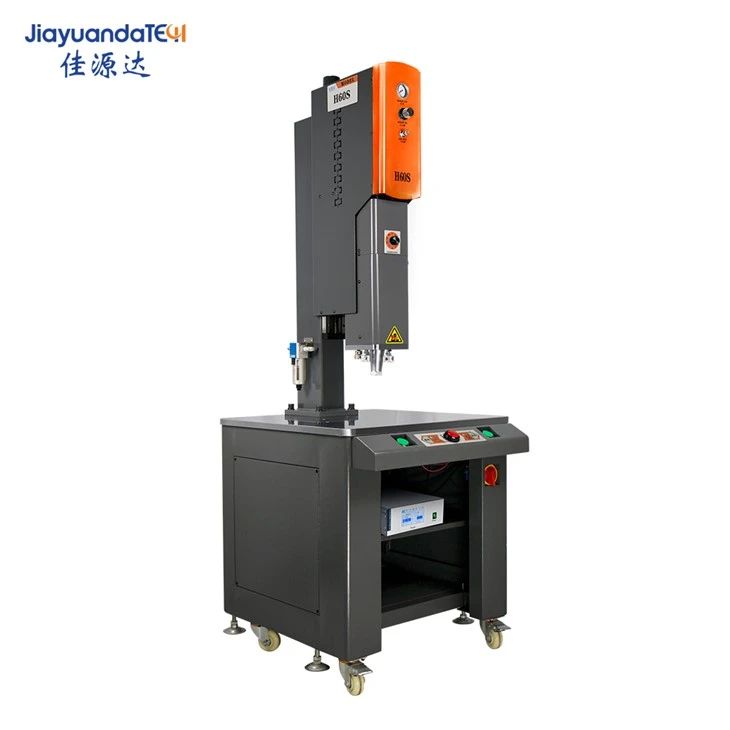

Jiayuanda Ultrasonic plastic welder machine-H60/60S. It is an intelligent digital ultrasound welding machine researched and developed by us. We use perfect and optimized real-time phase-locked loop tracking technology in developing this series, which achieves more stable and reliable operation. Flexible human-machine interface configuration gains more flexible product application....
15kHz ultrasonic welder has low frequency and high power, which is suitable for larger welding products. 20kHz ultrasound plastic welder has high frequency and low power, and it is suitable for small welding products. Different products choose different frequencies...
Product Parameter
Products | H60S series Ultrasonic Plastic Welding Machine | |||||||
Product number | 15K-4200W | 15K-3200W | 15K-2600W | 20K-3000W | 20K-2500W | 30K-1200W | 35K-1200W | 40K-800W |
working frequency | 15KHZ | 15KHZ | 15KHZ | 20KHZ | 20KHZ | 30KHZ | 35KHZ | 40KHZ |
Working power | 4200W | 3200W | 2600W | 3000W | 2500W | 1200W | 1200W | 800W |
Working voltage/gas source | 220V±10% / 0.2～0.7Mpa | |||||||
Welding stroke | 100MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM |
FAQ：
What size products can the Ultrasonic Plastic Welding Machine weld?
The welding area of different ultrasonic welding machines is different. The main factors affecting the size of ultrasonic welding are as follows.
1. The length and width of the product will also seriously affect the welding conditions. In layman's terms, ultrasonic transmission is afraid of width but not length. Ultrasonic waves can weld longer products, but not wider products.
2. Far-field ultrasonic or near-field ultrasonic. The distance from the product surface to the weld is within 6cm, which is a short-range ultrasonic wave, which is conducive to ultrasonic transmission. If it is too far away, it will affect the transmission of ultrasonic energy.
3. There are also differences in the welding range according to the frequency of the ultrasonic welding equipment. The higher the frequency of the equipment, the smaller the amplitude, the smaller the power, and the smaller the welding size range.
4. According to the plastic material, plastics that are easy to weld can be welded with a larger size area, and materials that are difficult to weld can only be welded with a smaller size area.
5. According to the requirements of welding seal, if the product requirements are very high, if the air leakage test is required, in the case of the same power of the machine, only a small size can be welded, if the requirements are not strict, just stick a little, you can Weld larger areas, such as some low-end toys.
6. If the product structure is a flat plastic structure, the weldable size is relatively large. If the product is irregular, with a drop difference in height or a higher position to avoid the position, the ultrasonic mold needs to avoid holes. From the perspective of sound wave transmission principle, these The structure is the factor that destroys the transmission effect. The stress generated during the ultrasonic transmission process will increase, the resistance will increase, and the surface amplitude of the product will become very uneven. Weak cannot be improved.
For more details of Ultrasonic Plastic Welding Machine, please feel free to contact us !
