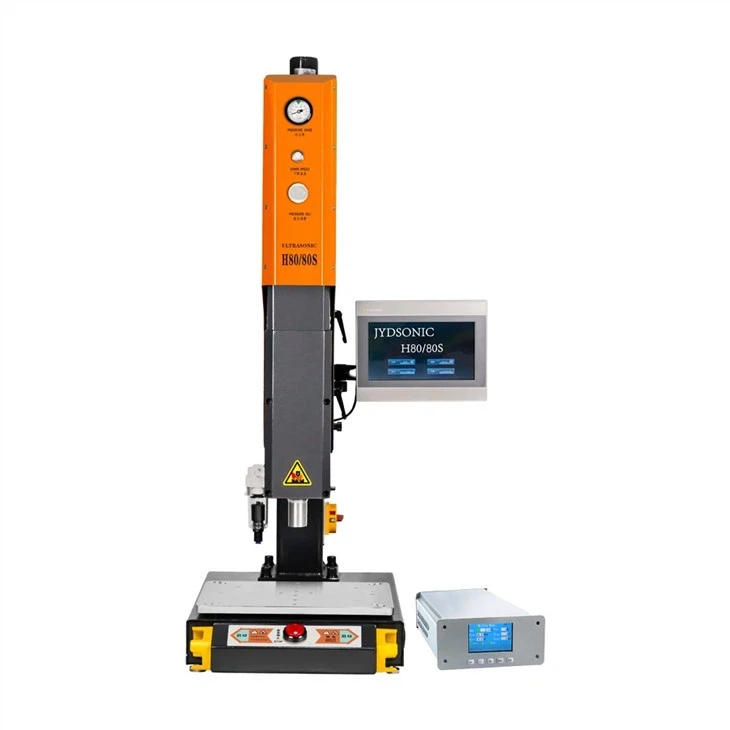

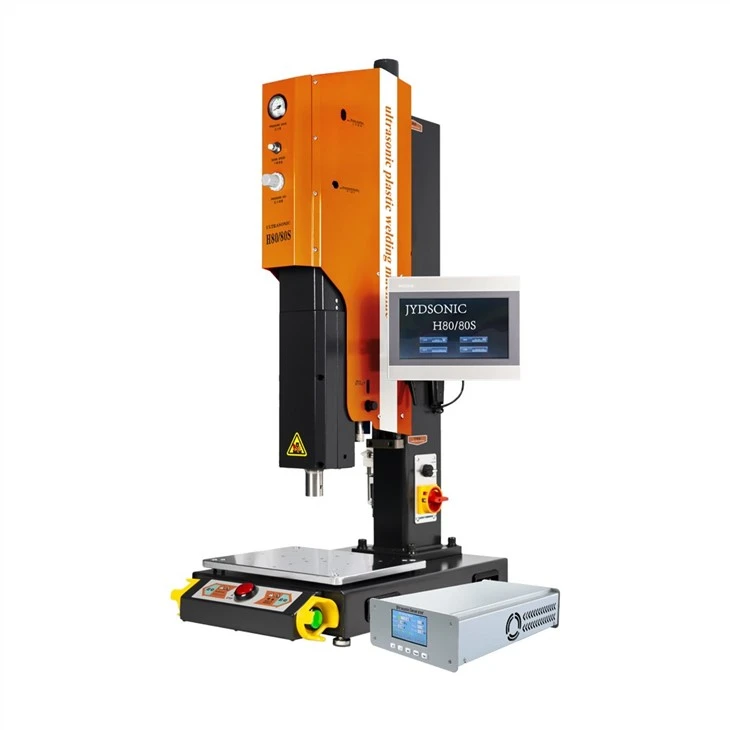

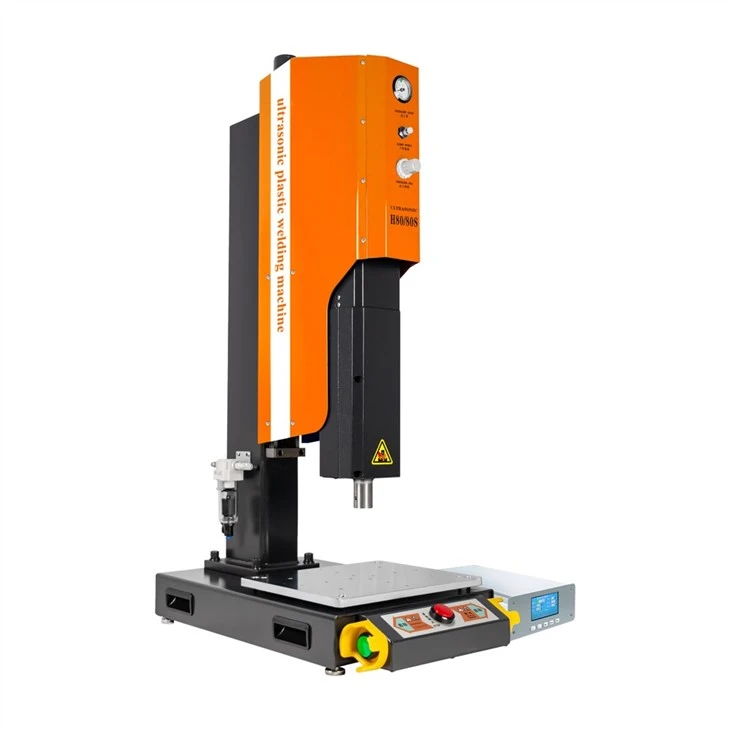

Ultrasonic Mosquito Pat Welding Machine
Jiayuanda Ultrasonic Plastic Welding Equipment-H80/80S. It is an intelligent digital ultrasound welding machine researched and developed by us. We use perfect and optimized real-time phase-locked loop tracking technology in developing this series, which achieves more stable and reliable operation. Flexible human-machine interface configuration gains more flexible product application....
High quality electric mosquito rackets are generally made of high-quality ABS materials. The ultrasonic mosquito pat welding machine can weld ABS and other plastic products without deformation and cracks, and the welding effect is firm and reliable. The assembly fasteners of all parts of the ultrasonic welding machine are not loose, and the switch is flexible and reliable. And it has the functions of automatic frequency tracking, real-time frequency monitoring and circuit abnormal protection.
Product parameter
Products | H80 series Ultrasonic Mosquito Pat Welding Machine | |||||
Model No. | 15K-3200W | 20K-3000W | 35K-1200W | 15K-3200W-P | 20K-3000W-P | 35K-1200W-P |
working frequency | 15KHZ | 20KHZ | 35KHZ | 15KHZ | 20KHZ | 35KHZ |
Working power | 3200W | 3000W | 1200W | 3200W | 3000W | 1200W |
Working voltage/gas source | 220V±10% / 0.2～0.7Mpa | |||||
Welding stroke | 100MM | 100MM | 100MM | 100MM | 100MM | 100MM |
Application
The ultrasonic mosquito pat welding machine is most suitable for the welding of thermoplastic thin materials.
Applicable materials: ABS、PPS、PS、HIPS475、PC+ABS、PBT、PSS、PPO、PSF、PE、PC、PA、SAN、PP、PMMA
FAQ
Q: How to solve the problem of cracks when the ultrasonic welding machine is used to weld objects?
1. Reduce the pressure.
2. Reduce delay time (early vibration).
3. Reduce welding time.
4. The surface of mold and fixture shall be treated (hardened or chrome plated).
6. Reduce the number of machine sections or reduce the expansion rate of the upper mold.
7. For products that are easy to crack or break, the fixture should be made into a cushion, such as soft resin or covered cork.
8. For products that are easy to break, increase the R angle at the right angle.
For more details of Ultrasonic Mosquito Pat Welding Machine, please feel free to contact us !
