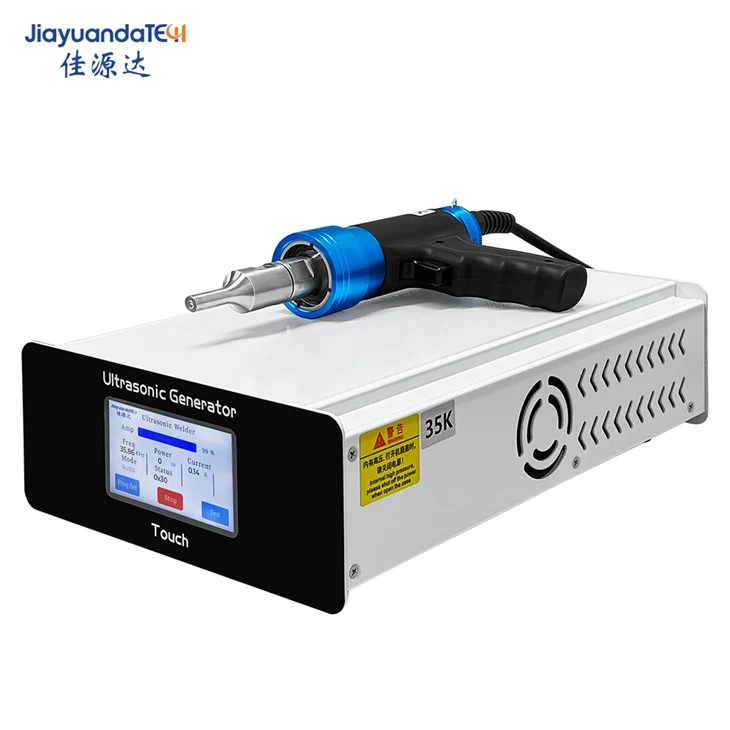

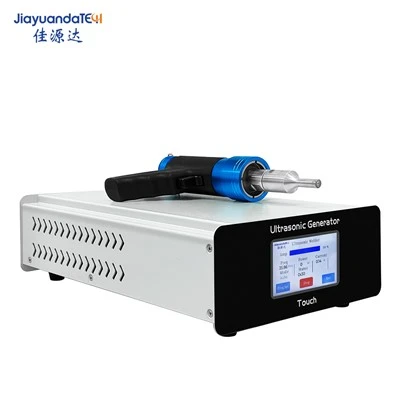

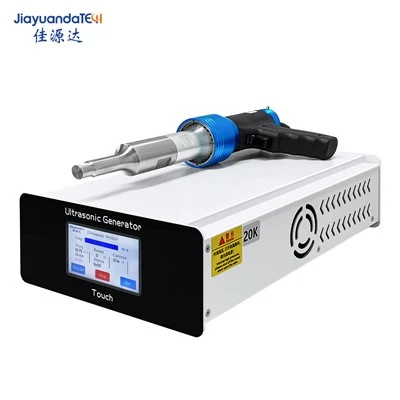

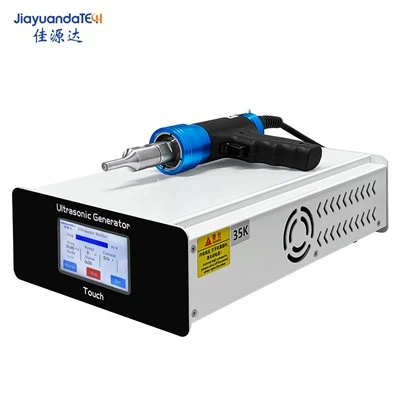

Handheld Ultrasonic Plastic Welder
Jiayuanda W20/W20S series of handheld ultrasonic welding machine is also called handheld ultrasonic spot welding machine. It is composed of ultrasonic generator, shell (direct grip or pistol type), ultrasonic transducer and ultrasonic welding head. It is an ultrasonic manual welding equipment that can be easily used by moving and tightening the mold.It has multiple solutions of 30KHz, 35KHz and 40KHz, which can meet the requirements of different application scenarios.It is driven by digital circuit ultrasonic generator, which is easy to operate. It can automatically track the optimal resonant frequency to ensure that the ultrasonic generator, transducer and welding joint are in the best working condition. It has multiple abnormal protection functions such as over-current alarm, load over-voltage, over temperature, load error, frequency error, over power consumption, welding joint, transducer, etc. to ensure safety....
The handheld ultrasonic spot welding machine has the following characteristics:
1. Customization and flexibility
A significant advantage of handheld ultrasonic spot welding equipment is its high degree of customization and flexibility. Due to different applications and industries that may require different welding parameters, welding head shapes and sizes, handheld ultrasonic spot welding equipment can usually be customized according to the specific needs of users. This includes the shape, size, material selection of the welding head, as well as the power and frequency adjustment of the ultrasonic generator.
2. Maintenance and upkeep
Although handheld ultrasonic spot welding equipment is usually very reliable, regular maintenance and upkeep are also key to ensuring long-term stable operation of the equipment. This includes cleaning the welding head and casing, checking the integrity of cables and connectors, and regularly calibrating the parameters of the ultrasonic generator. In addition, regularly replacing worn parts, such as welding heads, is also an important step in maintaining equipment performance.
3. Safety and operation training
Although handheld ultrasonic spot welding equipment is relatively easy to operate, proper safety operation training is still very important. This includes understanding the basic working principle of the equipment, familiarizing oneself with the switch and adjustment functions of the equipment, and understanding how to properly shut down the equipment in emergency situations. By providing sufficient operational training, it is possible to ensure that operators can safely and effectively use handheld ultrasonic spot welding equipment.
| Model | Ultrasonic frequency | Ultrasonic power | Ultrasonic generator | Ultrasonic transducer | Ultrasonic horn | Package size | Package weight |
| W10 | 28KHZ±1KHZ | 2900SP-W | ≤300W | JYD-2528-4P8-ARF | ∅10 | 540X340X290 | 8.5KG |
| W20 | 30KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3030-4P8-TMUK | ∅10 | 540X340X290 | 8.6KG |
| 35KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3035-4P8-TMUF | ∅10 | 540X340X290 | 8.6KG | |
| 40KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3040-4P8-TMUF | ∅10 | 540X340X290 | 8.6KG | |
| W20S | 30KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3030-4P8-TMUK | ∅10 | 540X340X290 | 8.7KG |
| 35KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3035-4P8-TMUF | ∅10 | 540X340X290 | 8.7KG | |
| 40KHZ±1KHZ | 2900SP-W | ≤1000W | JYD-3040-4P8-TMUF | ∅10 | 540X340X290 | 8.7KG | |
| W30 | 20KHZ±1KHZ | 2900SP-W | ≤1500W | JYD-3820-4P8-AMUK | ∅20 | 540X340X290 | 8.8KG |
| 28KHZ±1KHZ | 2900SP | ≤1500W | JYD-3828-4P8-AQ | ∅20 | 540X340X290 | 8.8KG |
Product feature
1. Convenient operation - as long as the welding parameters are set, the operation is very convenient;
2. Stable quality - mechanized production, stable and reliable product quality;
3. Economy - avoid using a large number of fixtures and adhesives, reduce labor and reduce costs;
4. Fast - most ultrasonic welding can be completed in 0.1-0.5 seconds;
5. Beautiful and clean - the surface is well formed, without damage, deformation, scratch and residual glue;
FAQ
How to create a safe operating environment for handheld ultrasonic plastic welder ?
1. Conduct hazard assessment
In areas where there are problems with ultrasonic welding equipment, we can better understand the welding environment, encourage managers and welders to pay close attention to safety details that may not be noticed, review potential safety risks, and then correct them. Employees can directly participate in the hazard assessment, understand the overall safety of the welding unit with the management, and put forward suggestions for improvement.
2. Welding equipment operation training
Carry out welding equipment operation training for employees. Topics covered include reviewing the hazard assessment process, how to use welding equipment in daily situations, maintaining all equipment correctly, and encouraging employees to interact actively.
3. Safety auxiliary equipment
Some safety auxiliary equipment, such as electromagnetic induction, can be used to improve safety and comfort, especially when the welder's weld field of vision is blocked, the sensor can be used to obtain the magnetic frequency of the arc and eliminate the interference caused by shielding.
For more details of handheld ultrasonic plastic welder, please feel free to contact us !
