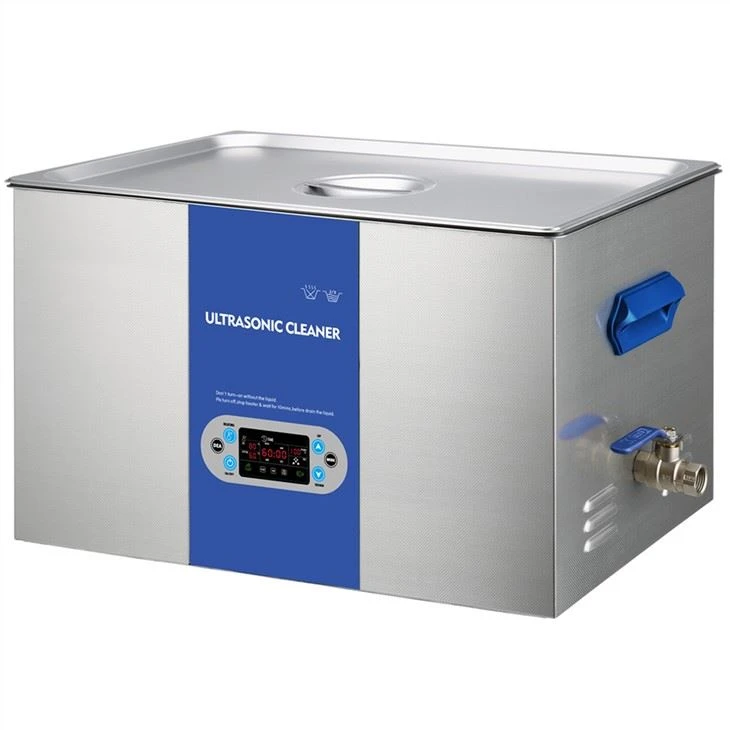

40kHz Ultrasonic Cleaner
UC-9000 series Stainless Steel Ultrasonic Cleaner which equipped with LCD and controller, it is a new stainless steel ultrasonic cleaning machine. It is easy to operate and has a one button degassing function, which can quickly remove air from water, and the ultrasonic cleaning effect is better....
40kHz Ultrasonic Cleaner is the most popular single frequency ultrasonic system in the industry today, and has been used for some time. If your device is equipped with an ultrasonic cleaner, it may be a 40kHz system. This ultrasonic frequency has a good combination of power, penetration and uniform energy distribution, and can successfully solve most cleaning application problems when combined with properly designed cleaning systems.
All ultrasonic cleaning systems, whether they are manufacturers or manufacturers, will produce scrubbing effect and will be distributed in a series of equidistant belts, which are called standing waves. They start from the installation position of the transducer, which is usually the bottom of the water tank. The frequency of the ultrasonic cleaner will determine the distance between these moving zones. The higher the ultrasonic frequency, the closer the distance between these frequency bands, but the lower the activity intensity at any position. High frequency ultrasonic systems usually produce a very evenly distributed cleaning effect, but the effect is poor, while low-frequency ultrasonic systems produce a cleaning effect with a large area of inactive areas, but the cleaning effect is stronger at the standing wave position.
Specification of 40kHz Ultrasonic Cleaner
| Model No. | The tank size（L*W*H） | Dimensions（L*W*H） | Capacity（L） | Gross weight (KG) | Ultrasonic power (W) | Heating power(W) | Drain valve | Frequency(KHz) | Time (Min) | The heating temperature (℃) |
| UC-9120 | 240*135*100 | 304*165*292 | 3.2 | 4.77 | 120 | 100 | Yes | 39±1.5KHz | 10Sec~100Min | 20~80 |
| UC-9120L | 240*135*150 | 304*165*292 | 5 | 5.4 | 120 | 200 | ||||
| UC-9180 | 300*150*100 | 367*176*292 | 4.5 | 5.65 | 180 | 200 | ||||
| UC-9180L | 300*150*150 | 367*176*292 | 6.8 | 6.2 | 180 | 200 | ||||
| UC-9240L | 300*240*150 | 379*265*292 | 11 | 8.5 | 240 | 300 | ||||
| UC-9360 | 330*300*150 | 409*325*317 | 15 | 11.5 | 360 | 400 | ||||
| UC-9360L | 330*300*200 | 409*325*367 | 20 | 12.5 | 360 | 400 | ||||
| UC-9480 | 500*300*150 | 581*325*317 | 22 | 14.5 | 480 | 500 | ||||
| UC-9600 | 500*300*200 | 581*325*387 | 30 | 16 | 600 | 500 |
The 40kHz ultrasonic cleaner operates more quietly than the 25kHz system and produces a softer cleaning effect. It is suitable for removing common contaminants from parts, but contaminants with narrow tolerances may not be removed consistently. 40kHz also has the tendency to remove particles less than 25kHz, but it is not as small as the particles that can be removed by 80kHz system. Compared with the 25kHz system, the 40kHz ultrasonic cleaner is less destructive to the cleaning tank.
Q： Do you know when should to use 40kHz ultrasonic cleaning machine:
1. When cleaning medium to heavy parts
2. When removing most pollutants found in the manufacturing environment
3. When the part has some details but no ultra-fine details, such as small blind holes, threaded areas and similar details
4. When parts cannot be cleaned at a high frequency.
For more details of 40kHz Ultrasonic Cleaner, please feel free to contact us ！
