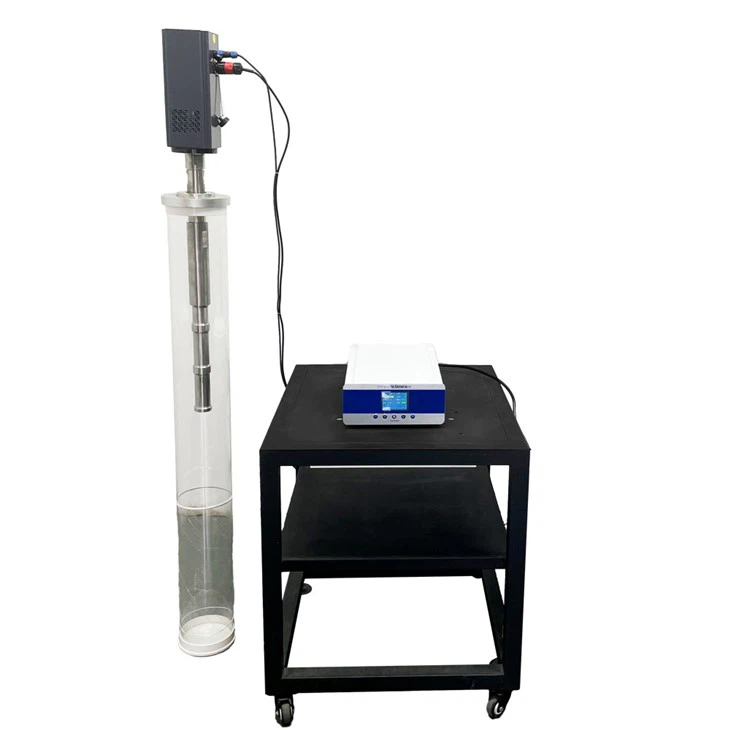

Ultrasonic Processors
1. Intelligent automatic frequency tracking ultrasonic generator,real-time;
2. Frequency tracking,to ensure that the ultrasonic wave is in the best effect range;
3. 20KHz 2000W high-power transducer, low impedance;
4. High conversion efficiency,strong amplitude.
Product Description
It utilizes the mechanical vibration effect of ultrasound to generate high-frequency vibrations of molecules in the solvent, thereby accelerating the transfer of solutes and solvents. The vibration effect of ultrasound can damage cell walls, increase solvent permeability, and thus improve the efficiency of solute release. In addition, ultrasound can also accelerate the reaction rate and improve the migration rate of substances, making the extraction process faster and more efficient.
Specification
| Model | Ultrasonic frequency | Ultrasonic power | Standard tool head 1/1 | Ultrasonic generator model | Ultrasonic transducer model | Dispersed capacity | duty cycle | Protective function |
| CQ28-P800 | 28KHZ±1KHZ | ≤500W | T28-D10L135 | 2900SP-CQ | JYD-3828-4P8-AU | ≤6L | 10%-100% | Overtemperature/overpower overtime/overload |
| CQ28-P1200 | 20KHZ±0.5KHZ | ≤600W | T28-D20L187 | 2900SP-CQ | JYD-5020-6P4-AU | ≤10L | 10%-100% | Overtemperature/overpower overtime/overload |
| CQ20-P2000 | 20KHZ±0.5KHZ | ≤1200W | T20-D30L490 | 2900SP-CQ | JYD-5020-4P4-AU | ≤30L | 10%-100% | Overtemperature/overpower overtime/overload |
| CQ20-P2600 | 20KHZ±0.5KHZ | ≤2000W | T20-D30L490 | 2900SP-CQ | JYD-5020-6P4-AU | ≤50L | 10%-100% | Overtemperature/overpower overtime/overload |
Advantages of Ultrasonic Processors
High efficiency: it can extract successfully in a short period of time, saving experimental time.
Safer: The working method adopts a nonheating type to avoid damage to the extracted substances and ensure the quality of the experiment.
More precise: The working time, frequency, and power are controllable and can be adjusted according to different experimental requirements.
More environmentally friendly: The extraction process does not require chemical reagents, saving costs and protecting the environment.
Applicable fields of Ultrasonic Processors
It have a wide range of applications in traditional Chinese medicine extraction. By using ultrasonic technology, effective ingredients in traditional Chinese medicine can be quickly and effectively extracted, thereby improving the efficacy.
Food field: It can be used to extract active substances in food, such as nutrients in tea fruits, and vegetables. Using ultrasonic technology can not only improve efficiency but also preserve the original flavor and nutritional components of food.
Environmental field: It can be used for the extraction and analysis of environmental pollutants. Through ultrasound, organic substances in water, soil, and other samples can be quickly and effectively extracted, providing an effective means for environmental monitoring.
FAQ：
1. Is there any mechanism for the ultrasonic processor to be controlled remotely?
Yes, we offer that capability. If you require remote control of the ultrasonic processor, we can equip the unit with an RS485 control function to facilitate remote operation.
2. What material is the probe of the ultrasonic processor made of?
Titanium alloy.
3. Are the ultrasonic processors certified with CE or RoHS?
Yes, our products are CE certified. If needed, we can provide the certificate for your reference.
4. How often does the ultrasonic horn (probe) need to be replaced?
There is no definitive answer to this. Too many variables affect the horn's service life, and Jiayuanda has not conducted specific studies on probe longevity. With light use, an ultrasonic horn may last for several years. Under continuous operation or demanding applications, it might only last a few months.
The lifespan of the horn depends on various factors, including but not limited to:
1)The presence of solids. Particulates can abrade the horn. The larger, harder, and more concentrated the particles, the faster the wear.
2)Acidic solutions will wear down the horn more quickly than neutral or alkaline solutions.
3)Operating the probe at higher amplitudes will accelerate wear.
Ultimately, you will need to determine empirically how long your horn lasts in your specific application.
For more details of ultrasonic processors, please feel free to contact us!
