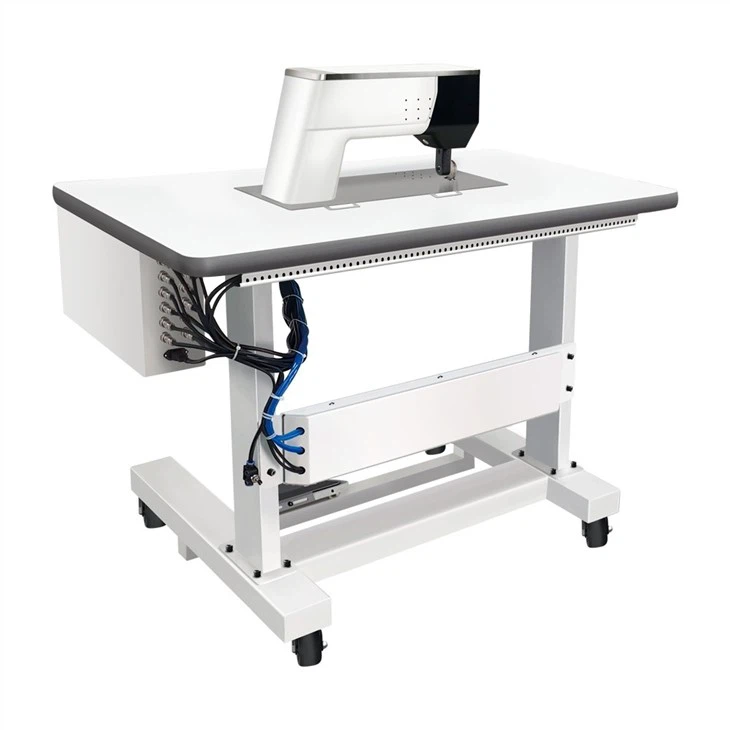

Ultrasonic Gown Sewing Machine
X20 ultrasonic lace machine is a 35khz intelligent ultrasonic welding machine. Intelligent follow-up ultrasonic generator, high-Q transducer, and wear-resistant tool head are composed of ultrasonic core components. No matter it is used in cutting, welding, and stitching, the product is flat, wrinkle-free, and highly efficient. Machine HMI control, speed customization, data storage, pressure adjustment, flower wheel diversity, abnormal alarm and other functions.....
Main features of Ultrasonic Gown Sewing Machine
1.It is suitable for the needle-free stitching of chemical fiber fabric, non-woven fabric and hot melt fabric, which can replace the sewing or pressing welding.
2.It has the function of continuous infinite long welding, which is firm, beautiful and high working efficiency.
3.Specially designed multi-function frame system, with direct stitching, turn stitching, rotary stitching and tubular lapping and other applications
Ultrasonic lace machine configuration parameters:
1. The ultrasonic lace machine adopts imported piezoelectric chips, with strong and stable output;
2. Special alloy steel material is used to make flower wheels, and the welding head is wear-resistant and has a long service life.
3. Easy disassembly and assembly of flower molds, eccentric core adjustment, flexibility, speed, and high levelness;
4. Fast working speed, good product effect, and quality assurance
5. Complete set of high-quality imported components assembly, with stable performance
Parameters of Ultrasonic Gown Sewing Machine
| Model | X20 | X20S |
| Ultrasonic frequency | 35KHz | 35Khz |
| Ultrasonic power | ≤1000W | ≤1000W |
| Ultrasonic generator | JYD-2700S | JYD-2700S |
| Ultrasonic transducer | JYD-3035-4P8-TMF | JYD-3035-4P8-TMF |
| Ultrasonic booster | / | / |
| Motor | Stepper motor + reducer400W 2.7A 1.27NM | Stepper motor + reducer400W 2.7A |
| Reducer | Ratio 1:10 | Ratio 1:10 |
| Working methods | Radially external | Radially external |
| Boding width | ≤8mm | ≤8mm |
| Flower wheel diameter | 45mm | 45mm |
| Max speed | 40m/min | 40m/min |
| Working space | 360mm*130mm | 360mm*130mm |
| Machine body size | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Whole machine size | 1210*600mm*1100mm | 1210*600mm*1100mm |
| Power supply | 220v±10% 50-60Hz | 220v±10% 50-60Hz |
| Package methods | Export wooden case | Export wooden case |
| Package size | 1250mm*700mm*1130mm | 1250mm*700mm*1130mm |
| Weight | 129.3KG | 129.3KG |
The Ultrasonic Gown Sewing Machine is composed of ultrasonic generator, ultrasonic transducer, ultrasonic horn, ultrasonic cutter head, flower wheel, motor, speed regulation system and mechanical transmission.
Its working principle is as follows: when the ultrasonic generator supplies power to the transducer, the vibration of the transducer is amplified by the two-stage amplitude of the horn and the tool head, and the ultrasonic acts on the thermoplastic chemical fiber cloth, PP non-woven cloth, nylon, talon, PE cloth, etc.). Under the pressure of the flower wheel with blade, the flower wheel and cutter head are driven by the motor and mechanical transmission part, and rotate through ultrasonic cutting and welding patterns to form beautiful lace. When two pieces of chemical fiber cloth are used, they can be welded under the action of ultrasonic wave to form wireless suture (please note that pure cotton fabric and silk fabric cannot be welded. They do not have thermoplastic material properties).
Working characteristics of ultrasonic sewing machine welding head:
Frequency range of ultrasonic lace sewing machine welding head: 15KHz - 100KHz
Ultrasound lace machine welding head material: alloy steel, aluminum alloy, titanium alloy, stainless steel.
Ultrasonic lace sewing equipment welding head hardness: maximum HRC62°
Working medium: solid, liquid, liquid metal, etc.
Surface treatment of lace machine welding head: blackened, polished, chrome-plated.
For more details of Ultrasonic Gown Sewing Machine, please feel free to contact us !
